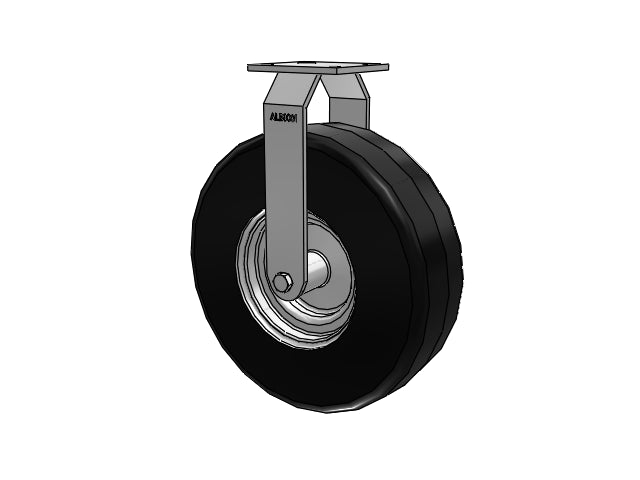

USA-Rig 13"x4.1" Black Pneumatic Wheel Rigid Caster with 4" x 4-1/2" Plate
Roll over to zoom; image may be representative for size Click on image to zoom
USA-Rig 13"x4.1" Black Pneumatic Wheel Rigid Caster with 4" x 4-1/2" Plate

USA-Rig 13"x4.1" Black Pneumatic Wheel Rigid Caster with 4" x 4-1/2" Plate

Albion Casters SKU: 16SF12727R
Fastening: 4" x 4-1/2" top plate | Load Capacity: 445 lb
Mount Height: 15.5 in
See "Product Details" and below CAD model for full specs.

Ships In: 1-2 weeks **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:
$197.16
Related Products
Click red checkbox to include when adding main item to cart
USA-Rig 13 View
USA-Rig 13 View

Description

The Albion 16SF12727R rigid caster features a 13" x 4.1" wide wheel and a 4" x 4-1/2" top plate, capable of a 445 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. 16 Series pneumatic casters are recommended for the greatest possible protection to both load and floor, or for off-road applications. If you transport fragile materials or parts, or if you move delicate instruments over rough floors, you should consider this product offering. Full pneumatics cushion the load on air as does automobile or truck wheels.

• Steel Rigs: 16 Series rigs now Made in the USA for added reliability
• Swivel Casters: Double ball bearing raceway for smooth and reliable swivel
• Shock Absorbing: Cushion wheel protects equipment
• Ball bearing wheel

Product Details

SKU
16SF12727R
Raceway Type:
Rigid, no raceway
Brake:
None
Load Capacity:
445 lb
Mounting Height:
15.5 in
Wheel Tread Width:
4.1 in
Wheel Description:
Black Pneumatic
Wheel Color:
Black Wheel
Wheel Bearing:
Ball Bearing
Wheel Thread Guards:
None
Fastening:
4" x 4-1/2" top plate
Bolt Hole Pattern:
2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:
3/8"
Swivel Lock:
None
Toe Guard:
None
Finish:
Zinc
Mfg:
16SF12727R
Warranty:
1 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
