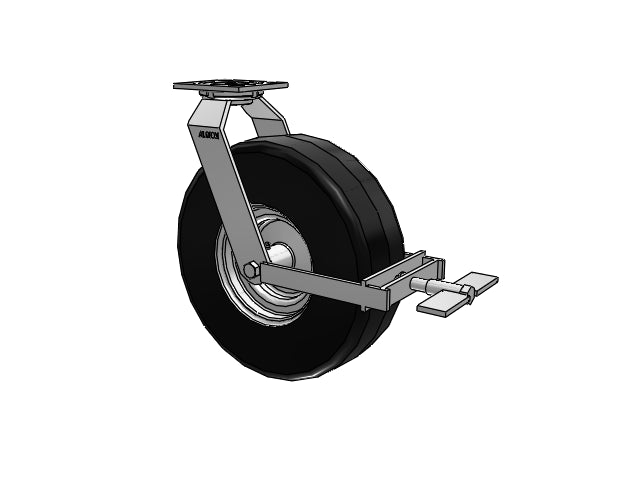

USA-Rig 13"x4.1" Black Pneumatic Wheel Caster with Top Wheel Lock and 4" x 4-1/2" Plate
Roll over to zoom; image may be representative for size Click on image to zoom
USA-Rig 13"x4.1" Black Pneumatic Wheel Caster with Top Wheel Lock and 4" x 4-1/2" Plate

USA-Rig 13"x4.1" Black Pneumatic Wheel Caster with Top Wheel Lock and 4" x 4-1/2" Plate

Albion Casters SKU: 16SF12727SF
Fastening: 4" x 4-1/2" top plate | Load Capacity: 445 lb
Mount Height: 15.5 in | Swivel Radius: 14.25 in
See "Product Details" and below CAD model for full specs.

Ships In: 1-2 weeks **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:
$452.13
Related Products
Click red checkbox to include when adding main item to cart
USA-Rig 13 View
USA-Rig 13 View
Bolt-on Swivel Lock for 4 View

Description

The Albion 16SF12727SF swivel caster with Top Wheel Lock brake features a 13" x 4.1" wide wheel and a 4" x 4-1/2" top plate, capable of a 445 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. 16 Series pneumatic casters are recommended for the greatest possible protection to both load and floor, or for off-road applications. If you transport fragile materials or parts, or if you move delicate instruments over rough floors, you should consider this product offering. Full pneumatics cushion the load on air as does automobile or truck wheels.

• Steel Rigs: 16 Series rigs now Made in the USA for added reliability
• Swivel Casters: Double ball bearing raceway for smooth and reliable swivel
• Shock Absorbing: Cushion wheel protects equipment
• Ball bearing wheel

Product Details

SKU
16SF12727SF
Raceway Type:
Smooth-formed, hardened double ball bearing raceways minimize ball indentation and wear
Brake:
Face Contact (F)
Load Capacity:
445 lb
Mounting Height:
15.5 in
Wheel Tread Width:
4.1 in
Wheel Description:
Black Pneumatic
Wheel Color:
Black Wheel
Wheel Bearing:
Ball Bearing
Wheel Thread Guards:
None
Fastening:
4" x 4-1/2" top plate
Bolt Hole Pattern:
2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:
3/8"
Swivel Radius:
14.25 in
Swivel Lock:
None
Toe Guard:
None
Finish:
Zinc
Mfg:
16SF12727SF
Warranty:
1 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

CAD Model and Datasheet Downloads
