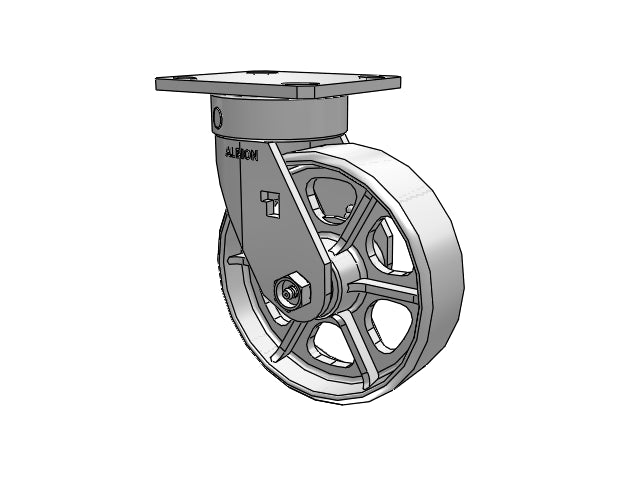

Value Kingpinless 6"x2" Cast Iron Wheel Caster with 4"x4.5" Plate
Roll over to zoom; image may be representative for size Click on image to zoom
Value Kingpinless 6"x2" Cast Iron Wheel Caster with 4"x4.5" Plate

Value Kingpinless 6"x2" Cast Iron Wheel Caster with 4"x4.5" Plate

Economy Kingpinless
Albion Casters SKU: 170CA06201S
Fastening: 4 1/2" x 4" top plate | Load Capacity: 1400 lb
Mount Height: 7.5 in | Swivel Radius: 4.56 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:
$107.91
Related Products
Click red checkbox to include when adding main item to cart
Value Kingpinless 6 View

Description

The Albion 170CA06201S swivel caster features a 6" x 2" wide wheel and a 4 1/2" x 4" top plate, capable of a 1400 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Ideal for economical applications where standard kingpin casters simply will not hold up due to shock or impact. One-year standard warranty featuring economical wheel solutions. Also, explore our premium 3-year warranty 75 Series kingpinless offering featuring additional performance wheels and brake options.

• 1-Year standard warranty
• Top Plate: 5/16" AISI 1045 steel
• Yoke Base: Notched AISI 1045 steel
• Swivel Section: One row of 3/8" ball bearings are mounted in a heat-treated precision machined 2-3/8" diameter raceway; zerk in swivel section
• Axle: 1/2" diameter hollow axle with zerk fitting on roller and tapered bearing models (Solid axle on Delrin, precision ball, and Oilex models)
• Finish: Zinc plating
• Alternate or custom caster configurations available

Product Details

SKU
170CA06201S
Raceway Type:
Kingpinless construction with one row of 3/8" ball bearings mounted in a heat-treated precision machined 2-3/8" diameter raceway with zerk
Brake:
None
Load Capacity:
1400 lb
Mounting Height:
7.5 in
Wheel Tread Width:
2 in
Wheel Description:
CA - Cast Iron
Wheel Color:
Grey Enamel
Wheel Bearing:
Roller
Wheel Profile:
Flat with Rounded Edges
Wheel Hardness:
Brinell 145
Wheel Thread Guards:
None
Fastening:
4 1/2" x 4" top plate
Bolt Hole Pattern:
2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:
3/8"
Swivel Radius:
4.56 in
Swivel Lock:
None
Toe Guard:
None
Finish:
Zinc
Operating Temperature Range:
Up to +800°F
Mfg:
170CA06201S
Warranty:
1 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
