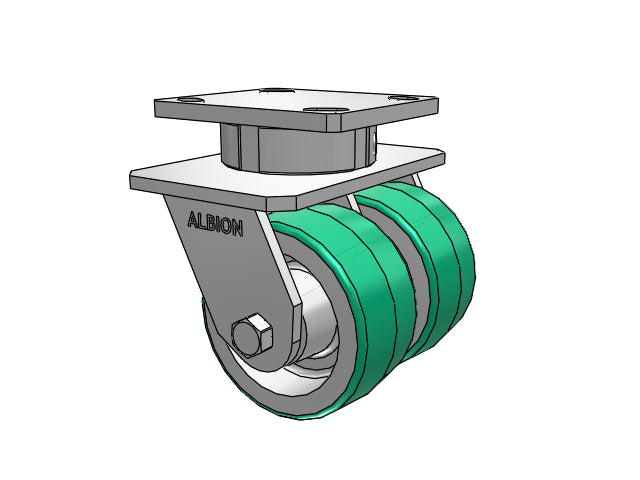

The Albion 115PD04201S swivel caster features a 4" x 2" wide wheel and a 4-1/2'' x 4'' top plate, capable of a 2000 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Dual wheel construction with added third leg allows this caster to provide higher load ratings in a low overall height, while gaining better product stability for safer operation. Precision raceways and fully heat-treated construction makes this the ideal solution for applications exposed to rugged conditions or high amounts of impact and shock. More durable than competitors’ case or induction hardened construction, and longer lasting than conventional kingpin designs.
• 3-Year warranty
• Top Plate: 5/16" AISI 1045 steel welded and heat treated for longer life
• Yoke Base: Notched AISI 1045 steel
• Swivel Section: One row of 3/8" ball bearings mounted in a heat-treated precision machined raceway; zerk in swivel section
• Axle: 1/2" diameter hollow axle with zerk fitting on roller and tapered bearing models (Solid axle on precision ball bearing models)
• Finish: Zinc plating
• Alternate or custom caster configurations available
