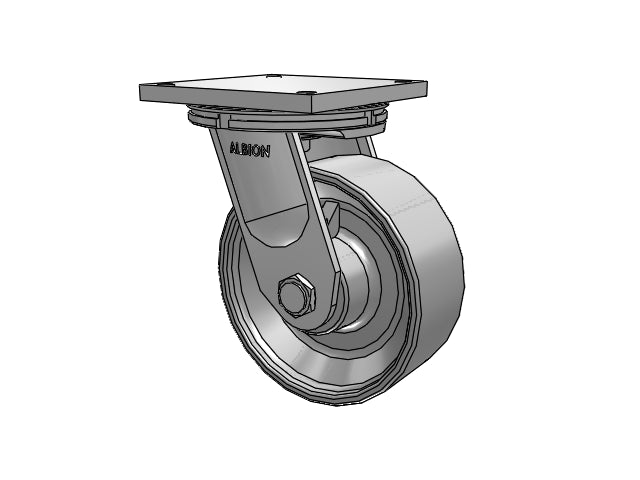

The Albion 95FS10709STRL swivel caster features a 10" x 4" wide wheel and a 8 1/2" x 8 1/2" top plate, capable of a 10000 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Featuring swivel casters with a precision machined roller bearing load and thrust swivel section (thrust swivel section = “TRL”) this series provides longer life and greater capacity than the 95 BBL models for those very rugged applications. Made from thick AISI 1045 drop forged steel and designed to be towed, please contact us prior to ordering for towed applications to ensure your selection meets your towing requirements. Popular solution for towed trailers, die carts, and equipment and carts utilized in automotive plants.
• Top Plate and Yoke Base: 5/8” thick AISI 1045 drop-forged steel precision machined for bearings
• Swivel Load Bearings: 7” diameter machined raceway with a precision tapered roller bearing which is protected by a forged labyrinth skirt
• Component Thrust Bearing: 1-1/4” tapered roller bearing
• Legs: 1/2” steel plate formed for greater strength and welded to yoke base both inside and outside
• King Bolt: 1-1/4” integrally forged with top plate machined and threaded
• Axle: 1-1/4” solid axle and lock nut
• Alternate or custom caster configurations available
SKU
|
95FS10709STRL
|
Caster Type
|
Swivel
|
Raceway Type
|
Swivel load bearing is a 7” diameter machined raceway with a precision tapered roller bearing protected by a forged labyrinth skirt; component thrust bearing is a 1-1/4” tapered roller bearing
|
Brake
|
None
|
Load Capacity
|
10000 lb
|
Wheel Tread Width
|
4 in
|
Wheel Description
|
FS - Drop-Forged Steel
|
Wheel Color
|
Clear Coat Enamel
|
Wheel Bearing
|
Tapered Roller
|
Wheel Profile
|
Machined flat with rounded edges
|
Wheel Hardness
|
Rockwell 80 B
|
Wheel Thread Guards
|
None
|
Fastening
|
8 1/2" x 8 1/2" top plate
|
Bolt Hole Pattern
|
7" x 7"
|
Bolt Size Recommended
|
5/8"
|
Mounting Height
|
13 in
|
Operating Temperature Range
|
Up to +800°F
|
Warranty
|
1 year
|
Manufacturing Number
|
95FS10709STRL
|
Conformity
|
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
|
