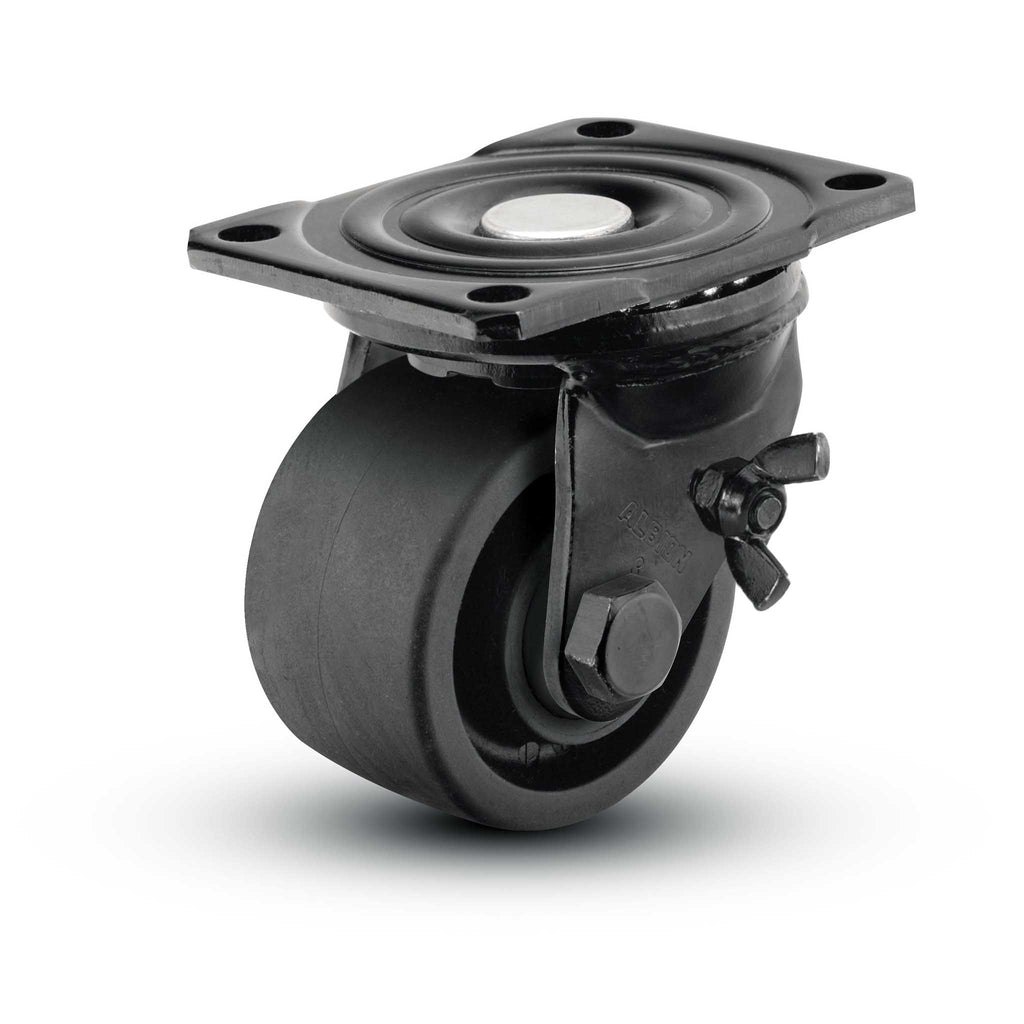

Black Low-Profile 3" MAX Nylon Wheel Side-Lock Caster with Top Plate
Roll over to zoom; image may be representative for size Click on image to zoom
Black Low-Profile 3" MAX Nylon Wheel Side-Lock Caster with Top Plate

Black Low-Profile 3" MAX Nylon Wheel Side-Lock Caster with Top Plate

Low Profile
Albion Casters SKU: 21NG03201SB
Fastening: 4.13'' x 3.13'' top plate | Load Capacity: 1200 lb
Mount Height: 4.16 in | Swivel Radius: 2.4 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:
$57.02

Description

The Albion 21NG03201SB swivel caster with Side Locking brake features a 3" x 1.81" wide wheel and a 4.13'' x 3.13'' top plate, capable of a 1200 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Low profile black casters provide high load ratings in a sleek overall height. Ideal for server racks, vending equipment, cabinets, dollies, soda machines, server cabinets, and business machine equipment.

Product Details

Part Number:
33GFNB32S-B-BM
SKU
21NG03201SB
Raceway Type:
Dual ball bearing hardened raceways
Brake:
Thumbscrew (B)
Load Capacity:
1200 lb
Mounting Height:
4.16 in
Wheel Diameter:
3 in
Wheel Tread Width:
1.81 in
Wheel Description:
NG - Maxim Nylon
Wheel Color:
Black
Wheel Bearing:
Roller
Wheel Profile:
Slight crown
Wheel Hardness:
85 Shore D ±5
Wheel Thread Guards:
None
Fastening:
4.13'' x 3.13'' top plate
Bolt Hole Pattern:
2.38" x 3.38"
Plate Bolt Size Recommended:
3/8"
Swivel Radius:
2.4 in
Swivel Lock:
None
Toe Guard:
None
Finish:
Black
Operating Temperature Range:
-40° to +250°F
Mfg:
21NG03201SB
Warranty:
1 year
Conformity:
RoHS compliant, tested to ANSI ICWM:2012 standards for capacity and durability

CAD Model and Datasheet Downloads
