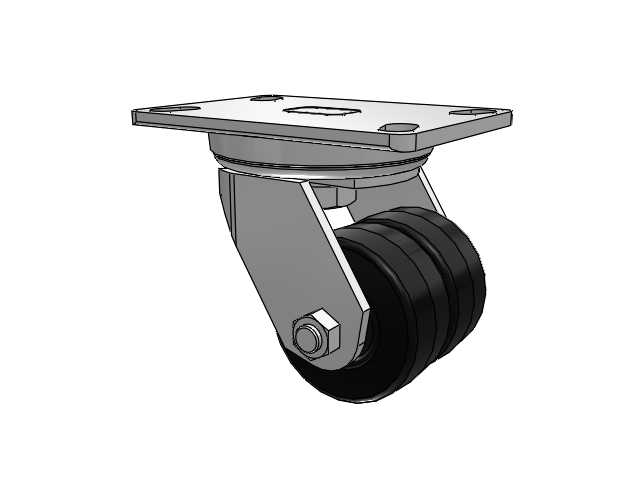

The Albion 272TM03101S swivel caster features a 3.25" x 1.5" wide dual wheels and a 4-1/2" x 6-1/4" top plate, capable of a 1200 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. This series is designed for greater dynamic capacity and better distribution of floor load with the lowest possible overall height. These casters have differential action when changing direction, thus greatly reducing the scrubbing effect resulting from the use of wide-faced, small-diameter wheels.
SKU
|
272TM03101S
|
Part Number
|
272TM03101S
|
Caster Type
|
Swivel
|
Raceway Type
|
Dual ball bearing hardened raceways
|
Brake
|
None
|
Load Capacity
|
1200 lb
|
Wheel Tread Width
|
1.5 in
|
Wheel Description
|
TM Phenolic
|
Wheel Color
|
Black
|
Wheel Bearing
|
Roller
|
Wheel Profile
|
Crowned Tread
|
Wheel Hardness
|
Rockwell 102 E
|
Wheel Thread Guards
|
None
|
Fastening
|
4-1/2" x 6-1/4" top plate
|
Bolt Hole Pattern
|
2-7/16" to 3-3/8" x 4-15/16" to 5-1/4"
|
Bolt Size Recommended
|
1/2"
|
Mounting Height
|
5.25 in
|
Operating Temperature Range
|
-65F to +250F (+300F intermittent)
|
Warranty
|
1 year
|
Manufacturing Number
|
272TM03101S
|
Conformity
|
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
|
