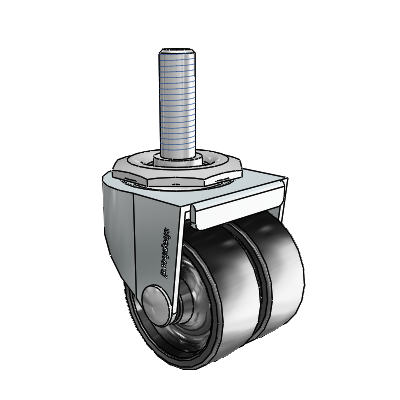

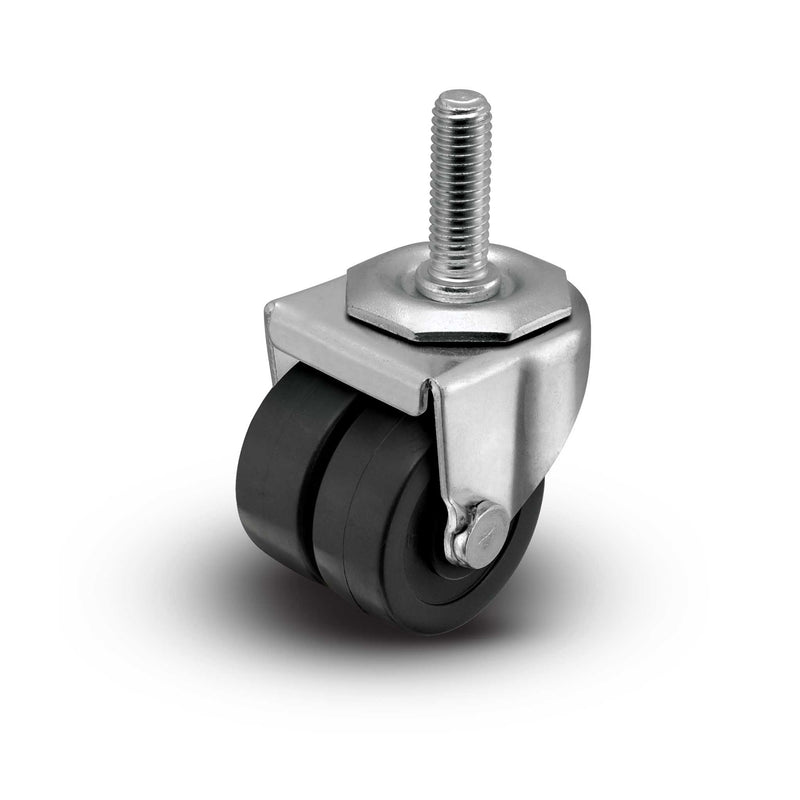

The Shepherd C0020748ZN-POS01(KK) swivel caster features 2" x 0.8125" polyolefin wheels and a 1/2"-13UNC x 1-1/2" Threaded Stem, capable of a 225 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. The 00 Series is the perfect economical solution for a low-profile application that requires heavier load capacities. The 00 Series is available in a dual or single-wheel configuration with a variety of wheel types and fastening options to choose from. Dual-wheel models provide excellent turning capabilities, and single-wheel models provide the highest load rating within the series. The optional brake design also offers a large brake lever for easy activation when locking your unit into place. The low overall height and high load capacities make the 00 Series a popular caster selection for store fixtures, mobile cabinets, POP displays, electronic equipment, business machines, refrigeration units, and other equipment requiring a low overall profile caster.
• Sleek, low-profile design
• USA-made for quality and fast delivery on large volume requirements
• Industry-leading selection and overall value
• Dual ball bearing raceways for smooth and dependable swivel
• RoHS compliant zinc plating for corrosion resistance
• Models with polyolefin log wheel are an NSF-approved component
SKU
|
C0020748ZN-POS01(KK)
|
Caster Type
|
Swivel
|
Raceway Type
|
Double ball bearing raceways for smooth and durable swivel action
|
Brake
|
None
|
Load Capacity
|
225 lb
|
Wheel Tread Width
|
0.81 in
|
Wheel Description
|
Polyolefin
|
Wheel Color
|
Black
|
Wheel Bearing
|
Plain
|
Wheel Hardness
|
70(+/-5) Shore D
|
Wheel Thread Guards
|
None
|
Fastening
|
1/2"-13UNC x 1-1/2" Threaded Stem
|
Mounting Height
|
2.75 in
|
Swivel Radius
|
2 in
|
Operating Temperature Range
|
-45F to +180F
|
Warranty
|
1 year
|
Manufacturing Number
|
C0020748ZN-POS01(KK)
|
Conformity
|
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
|
