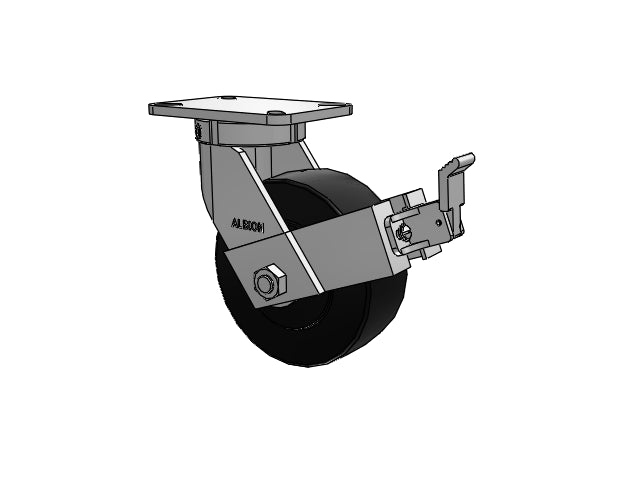

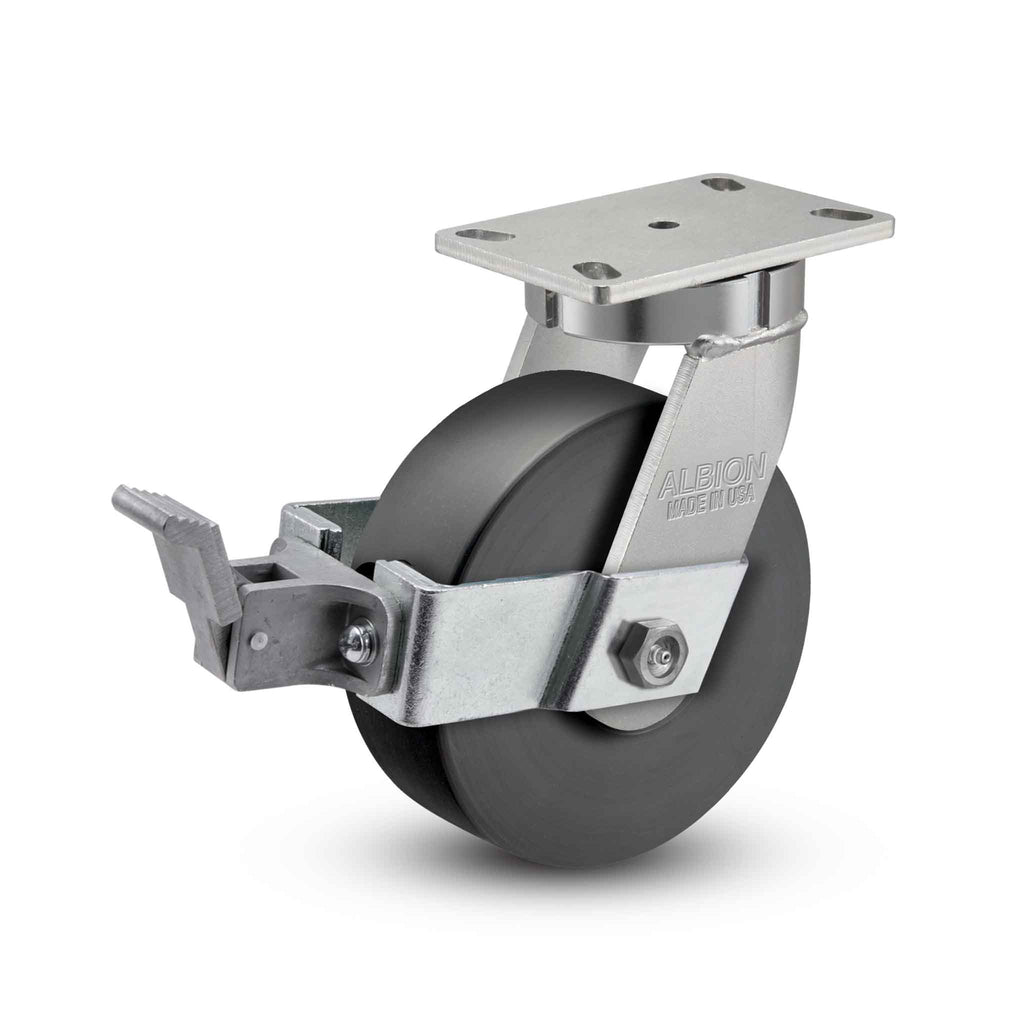

The Albion 410NX08528SFBB swivel caster with Top Wheel Lock brake features a 8" x 3" wide Trionix wheel and a 7-1/4'' x 5-1/4'' top plate, capable of a 5400 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. This USA-made series is a 3” wide-wheel workhorse designed to handle shock and impact. Constructed from high-quality, heat-treated AISI 1045 laser-cut steel, this series provides trusted performance. Precision machined raceway, fully welded legs (inside and outside), and kingpinless design delivers superior strength in rugged applications. This series also supports towed applications, contact us prior to ordering to ensure your selection meets your towing requirements.
- 3-Year premium warranty
- USA laser-cut thick steel construction, a true workhorse
-
ANSI ICWM tested to 5,400 lb. dynamic load capacity per caster (wheel alone handles up to 7,200 lbs.!)
-
Wheel: CNC machined Trionix wheels are as strong as steel wheels but are also floor protective (unlike steel) and will significantly help quiet your operation and improve your ergonomics, featuring four precision ball bearings per wheel; the wheel has a tensile strength of 11,000 PSI and a hardness of 78-82 Shore D; they are resistant to corrosion and chemicals and have a temperature range from -30°F to 220°F
-
Top Plate: 3/8" AISI 1045 heat-treated steel welded inside and out for longer life
-
Swivel Section: One row of 1/2" ball bearings mounted in a heat-treated precision machined raceway; zerk in swivel section
-
Yoke Base: Notched AISI 1045 steel
-
Legs: 3/8" thick welded inside and out for strength
-
Axle: 3/4" diameter
-
Finish: RoHS Zinc plating with clear coat, for greater corrosion resistance than paint
