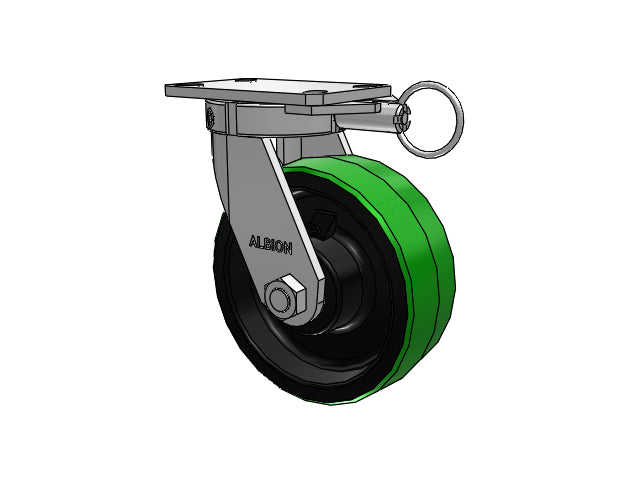

Kingpinless 8"x3" Green Poly-on-Iron Caster with 6.25"x4.5" Plate & Swivel Lock
Roll over to zoom; image may be representative for size Click on image to zoom
Kingpinless 8"x3" Green Poly-on-Iron Caster with 6.25"x4.5" Plate & Swivel Lock

Kingpinless 8"x3" Green Poly-on-Iron Caster with 6.25"x4.5" Plate & Swivel Lock

Kingpinless
Albion Casters SKU: 310PY08501SL
Fastening: 6-1/4'' x 4-1/2'' top plate | Load Capacity: 2500 lb
Mount Height: 10.13 in | Swivel Radius: 6.06 in
See "Product Details" and below CAD model for full specs.

Ships In: 1-2 weeks **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:
$327.19

Description

The Albion 310PY08501SL swivel caster features a 8" x 3" wide wheel and a 6-1/4'' x 4-1/2'' top plate, capable of a 2500 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. This USA-made series is a 3” wide-wheel workhorse designed to handle shock and impact. Constructed from high-quality, heat-treated AISI 1045 laser-cut steel, this series provides trusted performance. Precision machined raceway, fully welded legs (inside and outside), and kingpinless design delivers superior strength in rugged applications. This series also supports towed applications, contact us prior to ordering to ensure your selection meets your towing requirements.

• 3-Year warranty
• Laser-cut steel construction
• Top Plate: 5/16" AISI 1045 heat-treated steel welded inside and out for longer life
• Swivel Section: One row of 1/2" ball bearings mounted in a heat-treated precision machined raceway; zerk in swivel section
• Yoke Base: Notched AISI 1045 steel
• Legs: 3/8" thick welded inside and out for strength
• Axle: 3/4" diameter
• Finish: RoHS Zinc plating with clear coat, for greater corrosion resistance than paint

Product Details

Part Number:
75PIR830S-SLFI
SKU
310PY08501SL
Raceway Type:
Kingpinless construction with large 1/2" ball bearings mounted in a precision machined heat-treated raceway with zerk
Brake:
None
Load Capacity:
2500 lb
Mounting Height:
10.13 in
Wheel Tread Width:
3 in
Wheel Description:
PY - Polyurethane (Cast Iron Core)
Wheel Color:
Green Tread on Black Cast Iron Core
Wheel Bearing:
Roller
Wheel Profile:
Crowned Tread
Wheel Hardness:
95 Shore A
Wheel Thread Guards:
None
Fastening:
6-1/4'' x 4-1/2'' top plate
Bolt Hole Pattern:
2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Plate Bolt Size Recommended:
1/2"
Swivel Radius:
6.06 in
Swivel Lock:
Swivel Lock (L)
Toe Guard:
None
Finish:
Zinc
Operating Temperature Range:
-40°F to +180°F
Mfg:
310PY08501SL
Warranty:
3 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

CAD Model and Datasheet Downloads
