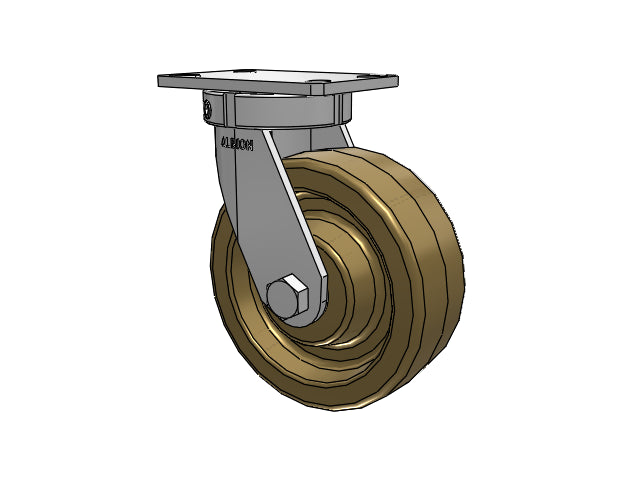

The Albion 330TR08501S swivel caster features a 8" x 3" wide wheel and a 6 1/4" x 4 1/2" top plate, capable of a 2500 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. For your heaviest-duty applications that are exposed to the toughest elements, the 330 Series is here and features a thick precision machined premium grade 316 stainless kingpinless swivel section and 304 stainless steel rig that are both highly polished. Ideal for heavy impact or shock-loading applications exposed to cleaning agents, washdowns, caustic solutions, steam, marine environments, or any other corrosive agents which could cause unwanted corrosion and rust. This series also supports towed applications, contact us prior to ordering to ensure your selection meets your towing requirements.
• Top Plate: 5/16" 304 stainless steel welded inside and out to 316 stainless steel raceway for longer life
• Swivel Section: One row of 1/2" ball bearings mounted in a precision machined raceway; zerk in swivel section
• Yoke Base: Notched 316 stainless steel
• Legs: 304 stainless steel welded inside and out
• Axle: 3/4” diameter
