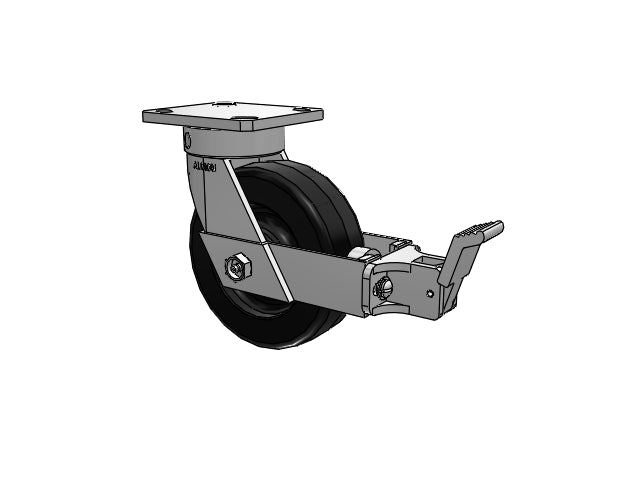

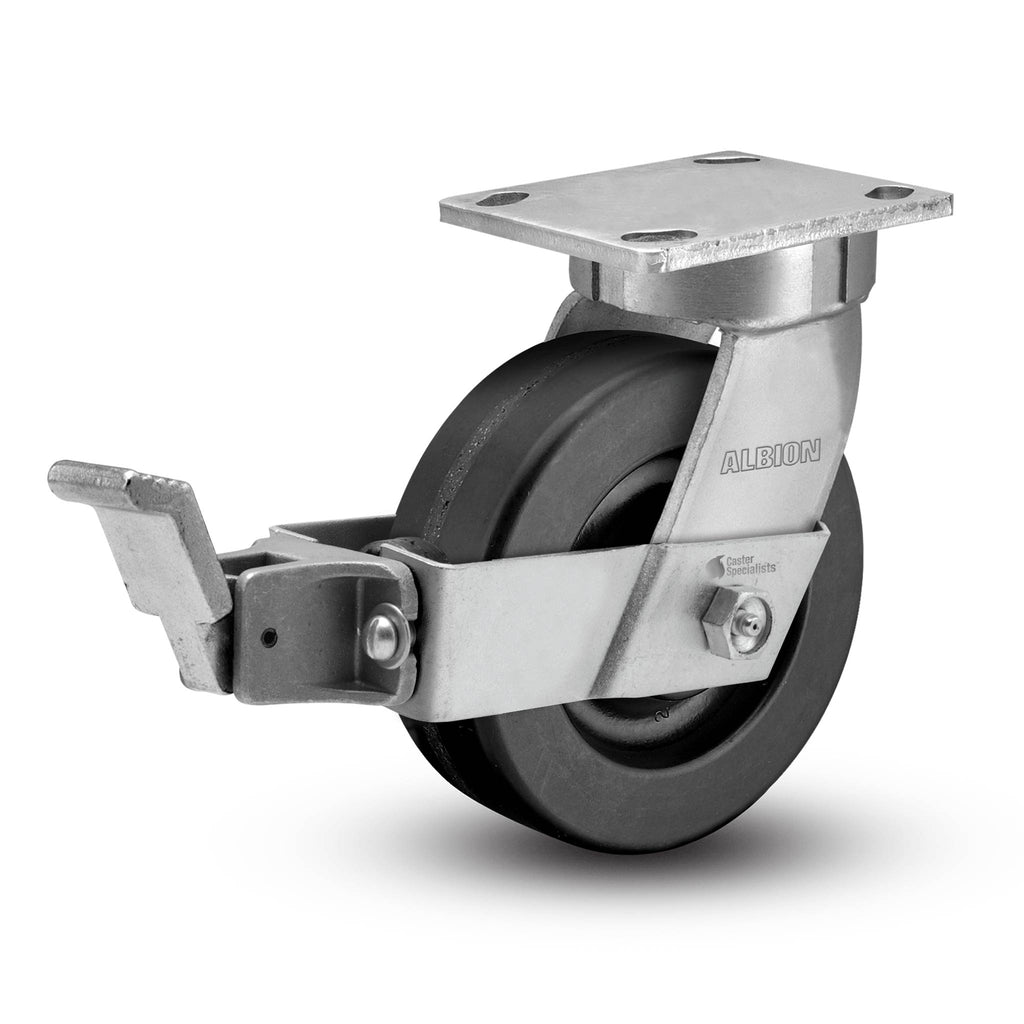

Kingpinless 6"x2" Phenolic Wheel Caster with Face Brake and 4"x4.5" Plate

Kingpinless
Albion Casters SKU: 110TM06201SFBB
Fastening: 4 1/2" x 4" top plate | Load Capacity: 1200 lb
Mount Height: 7.5 in | Swivel Radius: 9.19 in
See "Product Details" and below CAD model for full specs.

Ships In: usually 5-8 days **FREE Shipping on orders over $250**

Price:
Sale price$125.85

Description

The Albion 110TM06201SFBB swivel caster with Top Wheel Lock brake features a 6" x 2" wide wheel and a 4 1/2" x 4" top plate, capable of a 1200 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. This trusted kingpinless series features a precision machined large raceway, 5/16" thick AISI 1045 steel top plate, and fully heat-treated construction, making it an the ideal solution for applications exposed to rugged conditions or high amounts of impact and shock. More durable than competitors’ case or induction hardened construction, and longer lasting than conventional kingpin designs. Kingpinless heavy-duty casters are built to handle shock and impact better than traditional kingpin casters, as it eliminates the most common area of caster failure in rugged applications: the kingpin (which can get strained and stretched due to the impact or shock load).

• 3-Year warranty
• Top Plate: 5/16" AISI 1045 steel welded and heat treated for longer life
• Yoke Base: Notched AISI 1045 steel
• Swivel Section: One row of 3/8" ball bearings mounted in a heat-treated precision machined raceway; zerk in swivel section
• Axle: 1/2" diameter hollow axle with zerk fitting on roller and tapered bearing models (Solid axle on precision ball bearing models)
• Finish: Zinc plating
• Alternate or custom caster configurations available

Product Details

Part Number:
71PNR62S-FBB
SKU
110TM06201SFBB
Raceway Type:
Kingpinless construction with large 3/8" precision machined ball bearing heat-treated raceway with zerk
Brake:
FBB Face Brake (FBB)
Load Capacity:
1200 lb
Mounting Height:
7.5 in
Wheel Tread Width:
2 in
Wheel Description:
TM - Phenolic
Wheel Color:
Black Phenolic Resin
Wheel Bearing:
Roller
Wheel Profile:
Crowned Tread
Wheel Hardness:
Rockwell 102 E
Wheel Thread Guards:
None
Fastening:
4 1/2" x 4" top plate
Bolt Hole Pattern:
2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:
3/8"
Swivel Radius:
9.19 in
Swivel Lock:
None
Toe Guard:
None
Finish:
Zinc
Operating Temperature Range:
-65°F to +250°F (+300°F intermittent)
Mfg:
110TM06201SFBB
Warranty:
3 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

CAD Model and Datasheet Downloads
