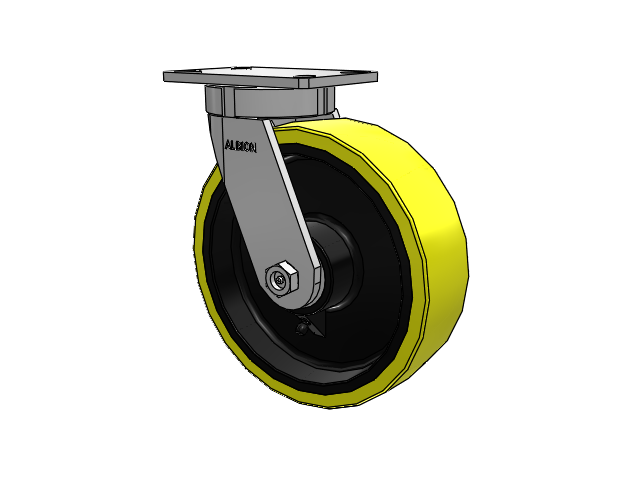

The Albion 370PF10528S swivel caster features a 10" x 3" wide wheel and a 6 1/4" x 4 1/2" top plate, capable of a 3000 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Ideal for applications that are on the border of exceeding 2” wide safety factors, or where a premium 3” wide caster may be overkill for the application or budget. This series provides the next step in a trusted, economical solution. Be sure to also review our premium 3” wide 75 Series featuring a 3-year warranty, USA-made rigs, higher load capacities, and higher performance wheels. The 370 Series also supports towed applications, contact us prior to ordering to ensure your selection meets your towing requirements.
• 1-Year standard warranty
• Top Plate: 5/16" AISI 1045 heat-treated steel welded inside and out for longer life
• Kingpinless construction eliminates kingpin failure, and better handles shock/impact
• Tested: ANSI ICWM:2012 tested for capacities up to 3,000 lbs.
• Yoke Base: Notched AISI 1045 steel
• Legs: 3/8" thick welded inside and out
• Axle: 3/4" diameter
• Finish: RoHS Zinc plating
SKU
|
370PF10528S
|
Caster Type
|
Swivel
|
Raceway Type
|
Kingpinless precision machined raceway construction to eliminate kingpin failure and better handle shock and impact
|
Brake
|
None
|
Load Capacity
|
3000 lb
|
Wheel Tread Width
|
3 in
|
Wheel Description
|
PF - Polyurethane (HD Cast Iron Core)
|
Wheel Color
|
Yellow Tread on Black Cast Iron Core
|
Wheel Bearing
|
Ergonomic Precision Ball Bearing
|
Wheel Profile
|
Full Radius Tread
|
Wheel Hardness
|
95 Shore A
|
Wheel Thread Guards
|
None
|
Fastening
|
6 1/4" x 4 1/2" top plate
|
Bolt Hole Pattern
|
2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
|
Bolt Size Recommended
|
1/2"
|
Mounting Height
|
11.5 in
|
Swivel Radius
|
7.25 in
|
Operating Temperature Range
|
-40°F to +180°F
|
Warranty
|
1 year
|
Manufacturing Number
|
370PF10528S
|
Conformity
|
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
|
