Engineered for Safety, Ergonomics, and Reliability

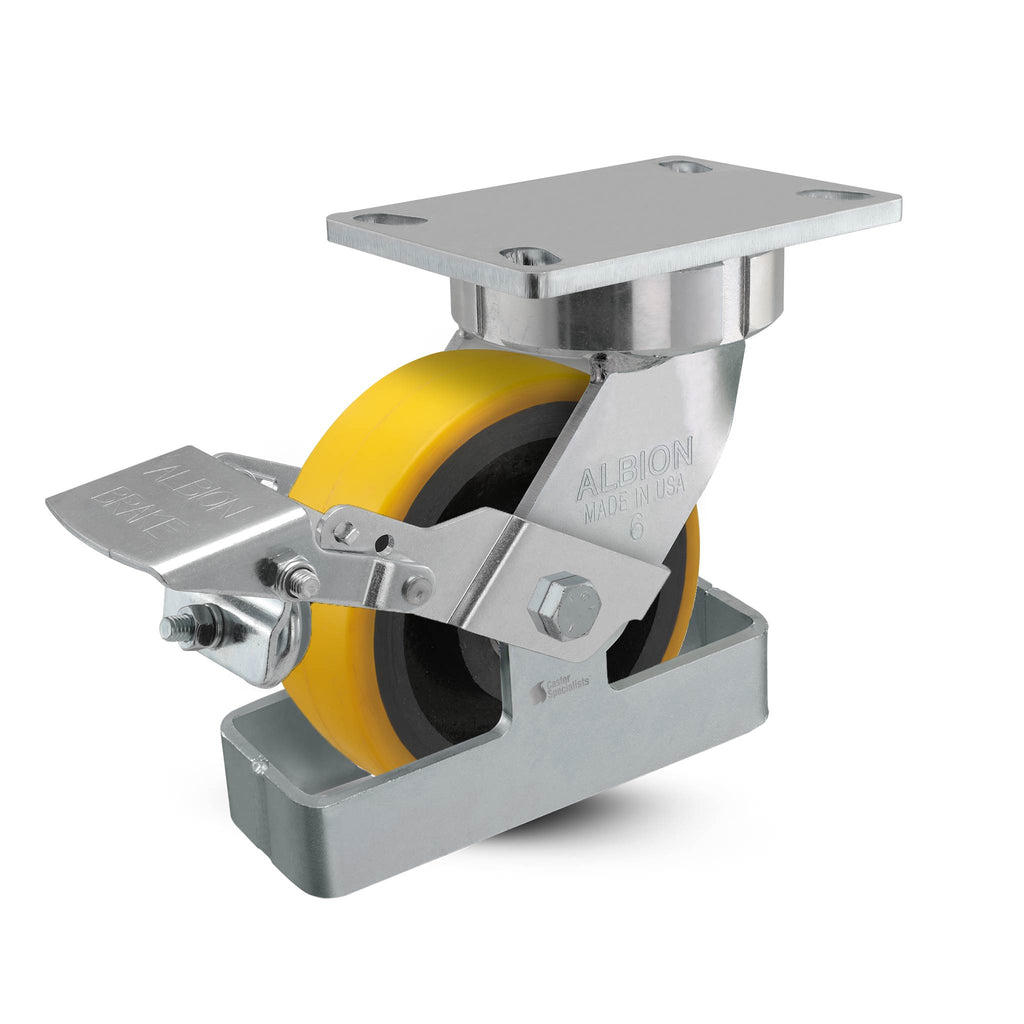

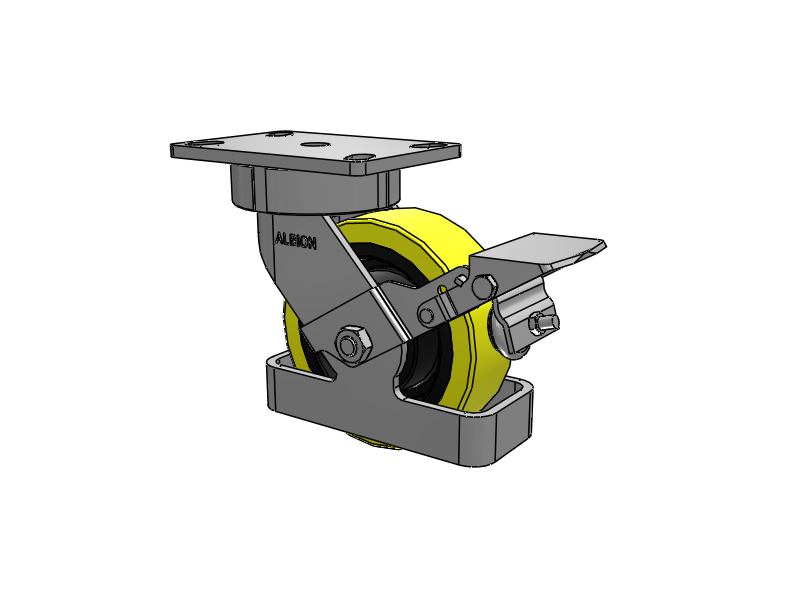

The Albion 38PF06228SFBKTO swivel caster is designed to maximize workplace safety, floor protection, and ergonomic efficiency while providing heavy-duty performance in demanding environments. Ideal for replacing metal wheels on high-capacity carts and equipment, this ANSI ICWM tested caster is completely maintenance-free and backed by a 3-year premium warranty.
Key Safety & Ergonomic Advantages
-
USA Maintenance-Free Rig – Sealed precision ball bearings in both the swivel section and wheel eliminate lubrication needs for the life of the caster.
-
Effortless Mobility – Reduced push/pull forces help minimize operator fatigue and injury risk.
-
Extended Lead Design – Promotes smooth alignment, easier steering, and reduced chatter in towed or high-speed applications.
-
Toe Guard Protection – Shields operators’ feet from impact while keeping debris clear of the wheel path.
-
Positive Face Brake – Easy-to-engage brake locks the wheel securely during loading, unloading, or stationary use.
Premium Heavy-Duty Polyurethane-on-Iron Wheel
-
Material – High-performance polyurethane tread (95 Shore A hardness) bonded to precision-machined cast iron core.
-
Performance – Combines the load capacity of metal wheels with excellent floor protection, shock absorption, and quiet rolling.
-
Bond Quality – Chemically bonded tread resists separation under high load and torque.
-
Tread Profile – Radius tread enhances maneuverability without sacrificing stability.
-
Chemical & Moisture Resistance – Withstands water, oils, greases, and most chemicals.
-
Temperature Range – Performs reliably from -40°F to 180°F.
Specifications
-
Wheel Size – 6" diameter x 2" wide polyurethane-on-iron
-
Capacity – 2,000 lbs dynamic load per caster
-
Top Plate Size – 6-1/4" x 4-1/2"
-
Brake Type – Positive face brake
-
Toe Guard – Integrated into laser-cut legs
-
Rig Type – Albion ergonomic extended-lead swivel rig
-
Finish – Zinc plated for corrosion resistance
-
Bearings – Sealed precision ball bearings (wheel and swivel)
-
Warranty – 3 years
-
Testing – ANSI ICWM tested for safety and performance
Ideal Applications
-
High-capacity industrial carts and dollies
-
Heavy-duty towed warehouse equipment
-
Bulk material handling trucks
-
Waste disposal and transport carts
-
Environments prioritizing floor protection, noise reduction, and operator safety
Need a rigid or alternative wheel version?
The Albion ergonomic series is available in multiple wheel materials, brake options, and mount types—contact us for configurations and volume pricing.
