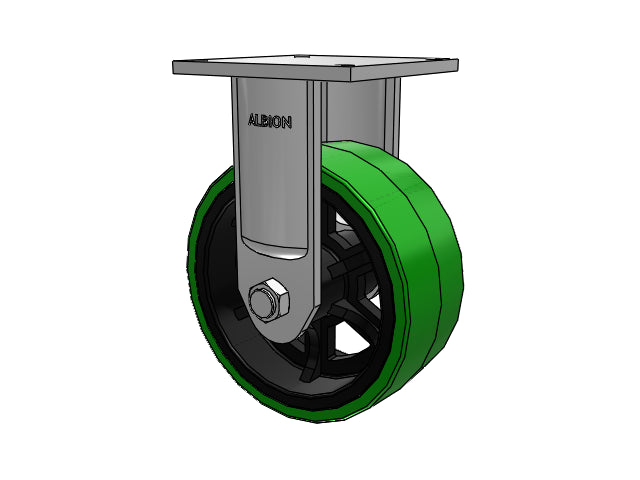

The Albion 700PX12809R rigid caster features a 12" x 5" wide wheel and a 8 1/2" x 8 1/2" top plate, capable of a 6600 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Need pure reliability in your heavy-duty application? These super-duty casters are built specifically for that potentially punishing application where reliability is essential. This one-piece forging is precision machined and carefully constructed to deliver the utmost durability in handling shock and impact. Typical applications include: aircraft engine stands, ground support equipment, aerospace A-frame skin, dollies, portable jigs, tooling fixtures, die carts, and large work platforms.
• Top Plate: 1/2" thick AISI 1045 steel one-piece forging precision machined and for long life
• Swivel Section: 3/4" ball bearings mounted in a 7" diameter precision machined raceway; zerk in swivel section
• Legs: 1/2" thick steel welded to yoke base using 100,000 psi weld filler
• Axle: 1-1/4” diameter
• Alternate or custom caster configurations available
SKU
|
700PX12809R
|
Caster Type
|
Rigid
|
Raceway Type
|
Rigid, no raceway
|
Brake
|
None
|
Load Capacity
|
6600 lb
|
Wheel Tread Width
|
5 in
|
Wheel Description
|
PX - Thick Polyurethane (Cast Iron Core)
|
Wheel Color
|
Green Tread on Black Cast Iron Core
|
Wheel Bearing
|
Tapered Roller
|
Wheel Profile
|
Available in flat or 3° crown
|
Wheel Hardness
|
95 Shore A
|
Wheel Thread Guards
|
None
|
Fastening
|
8 1/2" x 8 1/2" top plate
|
Bolt Hole Pattern
|
7" x 7"
|
Bolt Size Recommended
|
5/8"
|
Mounting Height
|
15.5 in
|
Operating Temperature Range
|
-40°F to +180°F
|
Warranty
|
1 year
|
Manufacturing Number
|
700PX12809R
|
Conformity
|
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
|
