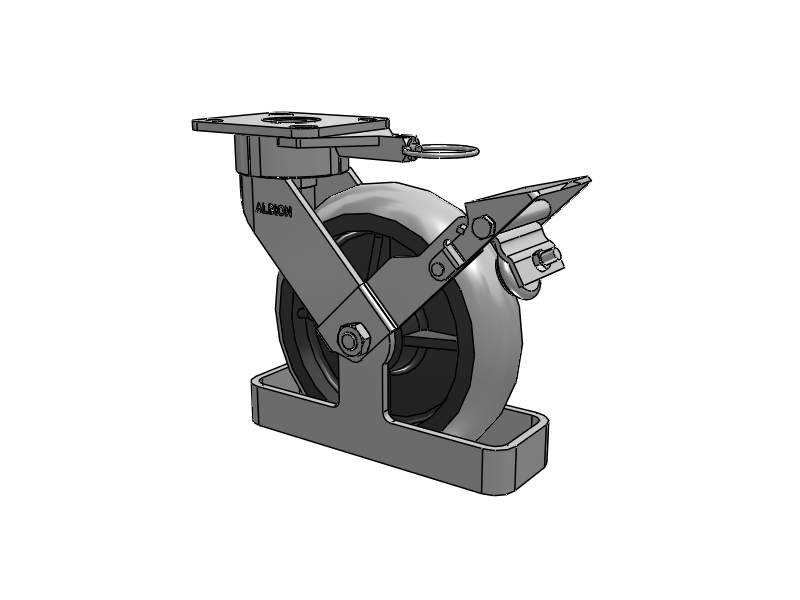

28XR08228SLFBKTO is a 8" x 2" wide wheel brake caster with a Performance Rubber Donut Wheel and 4-1/2" x 4'' top plate designed and constructed for highly ergonomic and quiet operation. Featuring a USA-made rig with a sealed-precision-ball-bearing raceway and extended lead, this caster provides effortless mobility and is extremely quiet, providing a safer working environment for your employees. The caster requires no maintenance for life, featuring sealed precision ball bearings in wheel and swivel section (for swivel models). 1/4" steel construction with fully welded legs (welded inside and outside to yoke base) allow these highly ergonomic casters to perform at higher load capacities than traditional casters, even with the extended lead – which helps smoothly and easily align the casters when turning while also reducing unwanted chatter from towed or faster moving equipment. The performance rubber wheel provides additional shock absorption for your equipment and cargo, and also helps further reduce noise. These tough, USA-made wheels also reject debris, including metal shavings and screws and feature sealed precision ball bearings for smooth and easy mobility. The included face brake provides easy to engage positive braking action against the wheel face, ensuring a solid lock. The provided toe guard helps to protect toes and other debris from being ran over and is cleanly integrated into the laser cut legs. A swivel lock is included to allow for easy steering; simply engage the swivel into one of the four positions to easily turn the swivel caster in a rigid caster (release to turn it right back into a free swiveling caster). This maintenance-free and ergonomic series also features:
• Maintenance Free: Maintenance free swivel section. No lubrication ever needed
• Ergonomic Extended Lead: Extended lead is standard, improving ergonomics, reducing push / pull force
• Top Plate & Yoke Base: Cold formed from ¼" steel plate. Yoke base is notched for field installable 4-position swivel lock
• Legs: 1/4" steel, formed to increase strength and welded on inside and outside of yoke base
• Finish: All parts, except wheel, are zinc plated
• Axle: 1/2" diameter solid axle with lock nut
SKU
|
28XR08228SLFBKTO
|
Caster Type
|
Swivel
|
Raceway Type
|
Industrial sealed precision ball bearing raceway requires no maintenance or additional lubrication for life of caster
|
Brake
|
FBK Face Brake (FBK)
|
Load Capacity
|
600 lb
|
Wheel Diameter
|
8 in
|
Wheel Tread Width
|
2 in
|
Wheel Description
|
XR - X-tra Soft Rubber (Round)
|
Wheel Color
|
Grey Tread on Grey Core
|
Wheel Bearing
|
Precision Ball
|
Wheel Profile
|
Rounded Tread
|
Wheel Hardness
|
65-75 Shore A
|
Wheel Thread Guards
|
None
|
Fastening
|
4" x 4-1/2" top plate
|
Bolt Hole Pattern
|
2-5/8" x 3-3/8" slotted to 3" x 3"
|
Bolt Size Recommended
|
3/8"
|
Mounting Height
|
10.13 in
|
Swivel Radius
|
9.12 in
|
Operating Temperature Range
|
-45°F to +180°F
|
Warranty
|
5 year
|
Manufacturing Number
|
28XR08228SLFBKTO
|
Conformity
|
RoHS compliant zinc plating, ANSI ICWM for safety and performance
|
