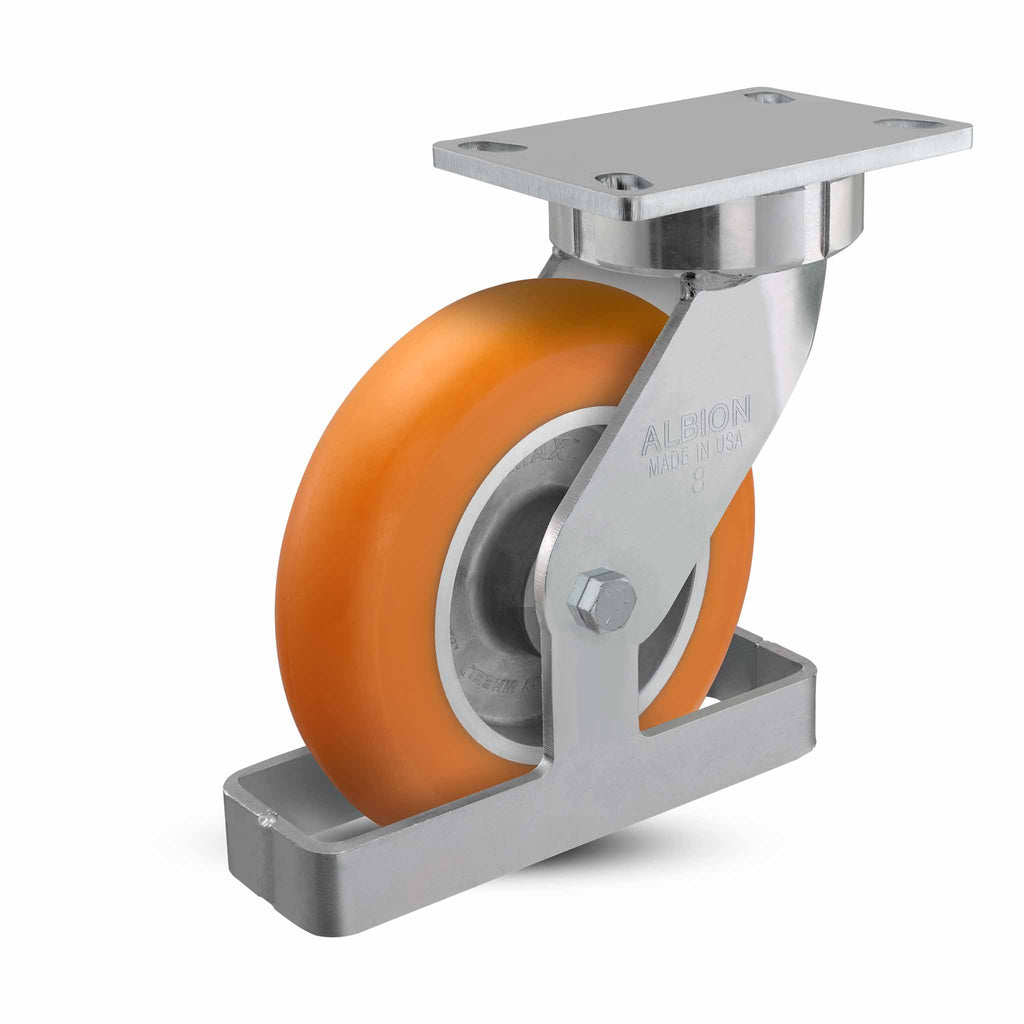

8"x2" USA Ergonomic Swivel Caster (9.5" OAH) with MAX-Efficiency Orange Wheel, Toe Guard, and 6.25"x4.5" Plate

USA Ergonomic RigMaintenance-Free
Albion Casters SKU: 38AN08228S01TO
Fastening: 6-1/4'' x 4-1/2'' top plate | Load Capacity: 1500 lb
Mount Height: 9.5 in | Swivel Radius: 8.05 in
See "Product Details" and below CAD model for full specs.

Ships In: 7-10 days **FREE Shipping on orders over $250**

Price:
Sale price$250.99

Related Product Add-ons
Click red checkbox + adjust quantity to include when adding main item to cart

Description

38AN08228S01TO is a 8" x 2" wide wheel swivel caster with an Orange MAX-Efficiency Wheel and 6-1/4'' x 4-1/2'' top plate designed and constructed for highly ergonomic, durable, and quiet operation. Featuring a USA-made rig with a sealed-precision-ball-bearing raceway and extended lead, this caster provides effortless mobility and is extremely quiet, providing a safer working environment for your employees. The caster requires no maintenance for life, featuring sealed precision ball bearings in wheel and swivel section (for swivel models). A robust 5/16" HSLA top plate and 1/4" steel leg construction with fully welded legs (welded inside and outside to yoke base) allow these highly ergonomic casters to perform at higher load capacities than traditional casters, even with the extended lead – which helps smoothly and easily align the casters when turning while also reducing unwanted chatter from towed or faster moving equipment. The advanced polyurethane on aluminum MAX-Efficiency (85A durometer) wheel provides best-in-class ergonomic advantages and durability – while also handling high-load capacities and debris rejection. The wheel is truly a quiet workhorse, and even features uniquely designed self-retaining top-hats that prevent hundreds of thousands of zip ties from being thrown away each year. The provided toe guard helps to protect toes and other debris from being ran over and is cleanly integrated into the laser cut legs. This maintenance-free and ergonomic series also features:
• Maintenance Free: Maintenance free swivel section. No lubrication ever needed
• Ergonomic Extended Lead: Extended lead is standard, improving ergonomics, reducing push / pull force
• Top Plate & Yoke Base: 5/16” HSLA steel plate. Yoke base is notched for field installable 4-position swivel lock
• Legs: 1/4" steel, formed to increase strength and welded on inside and outside of yoke base
• Finish: All parts, except wheel, are zinc plated
• Axle: 1/2" diameter solid axle with lock nut

Product Details

SKU
38AN08228S01TO
Raceway Type:
Industrial sealed precision ball bearing raceway requires no maintenance or additional lubrication for life of caster
Brake:
None
Load Capacity:
1500 lb
Mounting Height:
9.5 in
Wheel Diameter:
8 in
Wheel Tread Width:
2 in
Wheel Description:
AN - Round Polyurethane (Aluminum Core)
Wheel Color:
Orange tread on aluminum core
Wheel Bearing:
Precision Ball
Wheel Profile:
Radius Tread
Wheel Hardness:
85 Shore A
Wheel Thread Guards:
None
Fastening:
6-1/4'' x 4-1/2'' top plate
Bolt Hole Pattern:
2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Plate Bolt Size Recommended:
1/2"
Swivel Radius:
8.05 in
Swivel Lead:
3.5 in
Swivel Lock:
None
Toe Guard:
Toe Guard (TO)
Finish:
RoHS Compliant Zinc Plating
Axle Size:
1/2" solid
Operating Temperature Range:
-40°F to +180°F
Mfg:
38AN08228S01TO
Warranty:
5 year
Conformity:
RoHS compliant zinc plating, ANSI ICWM for safety and performance
