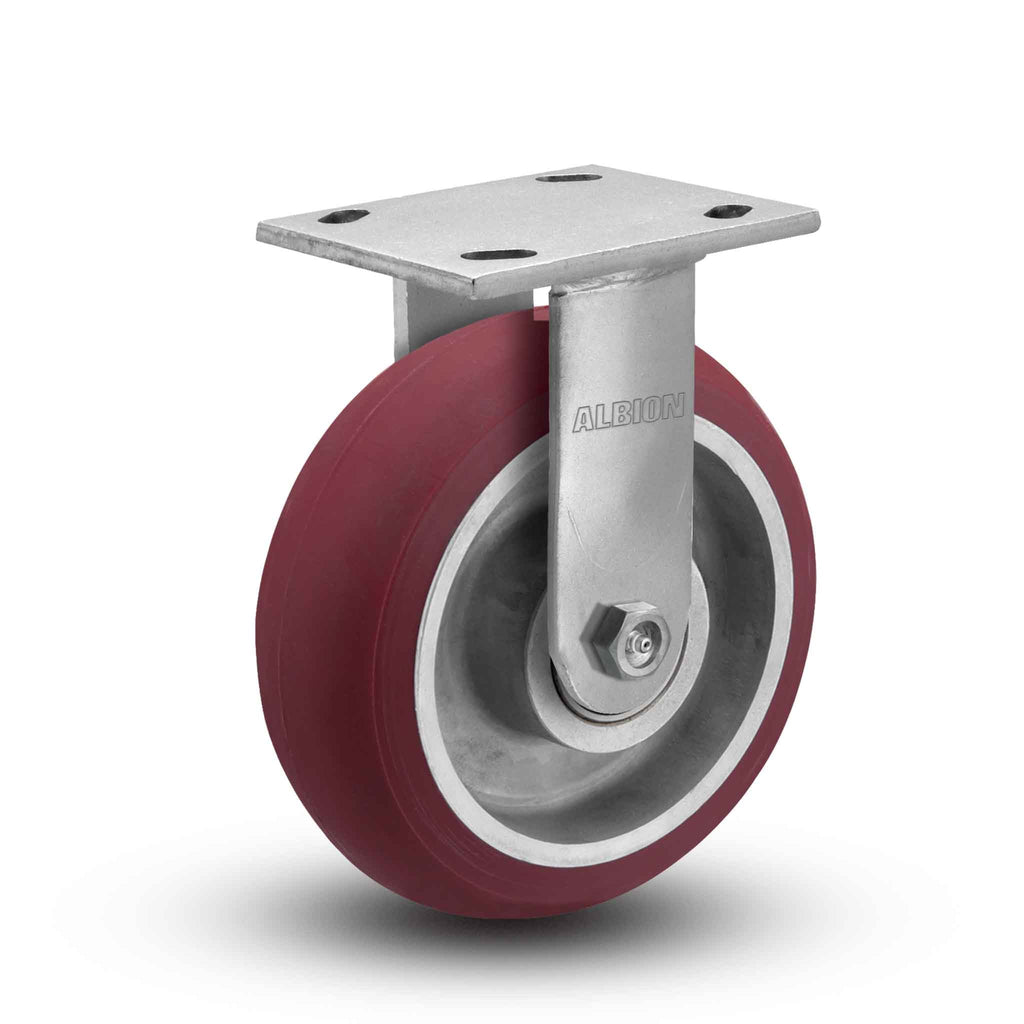

5"x2" Kingpinless Rigid Caster with MAX-Efficiency Maroon Wheel

Kingpinless & Ergonomic
Albion Casters SKU: 110AX05228R
Fastening: 4" x 4-1/2" top plate | Load Capacity: 1000 lb
Mount Height: 6.5 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:
Sale price$51.23 Regular price$56.92

Related Products
Click red checkbox + adjust quantity to include when adding main item to cart

Description

This 5" x 2" maroon polyurethane on aluminum heavy duty kingpinless rigid caster is designed to handle impact and shock, and are ideal for more ergonomic hand-pushed requirements or power-towed applications. The precision-machined raceway enhances ergonomics and safety while eliminating kingpin failure.Precision raceways and fully heat-treated construction make our 71 Series the ideal solutions for applications exposed to rugged conditions or high amounts of impact and shock. 71 Series are more durable than competitors case or induction-hardened construction, and longer lasting than conventional kingpin designs. These kingpinless casters eliminate kingpin failure, the leading cause of caster failure. Zinc plating provides an attractive, protective finish.

Product Details

Part Number:
71XMB52R
SKU
110AX05228R
Series:
71 Series - Kingpinless (to 2000 lb/ea)
Raceway Type:
Rigid Construction
Brake:
None
Load Capacity:
1000 lb

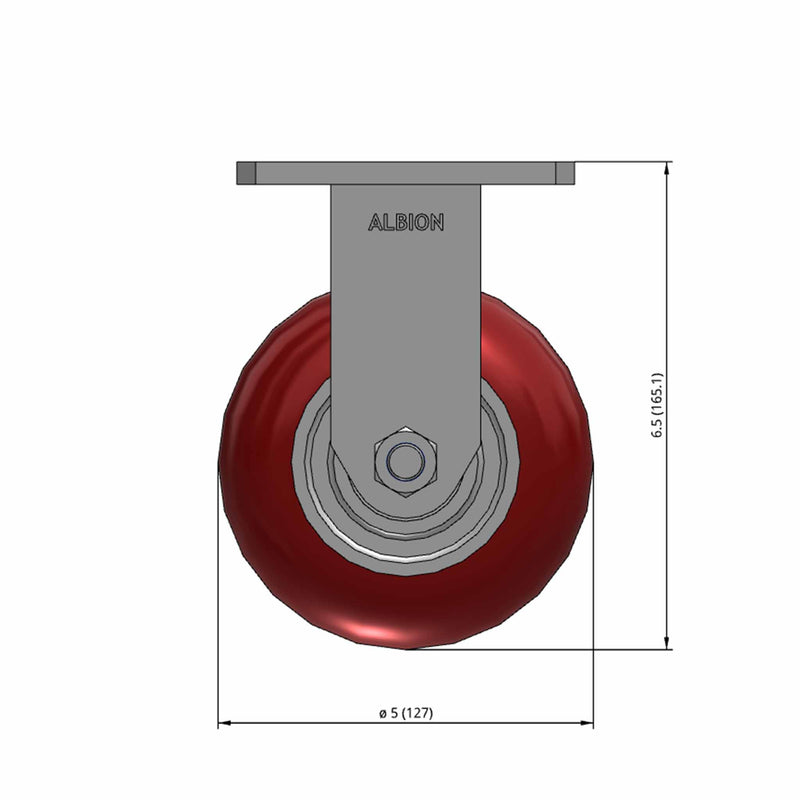

Mounting Height:
6.5 in
Wheel Diameter:
5 in

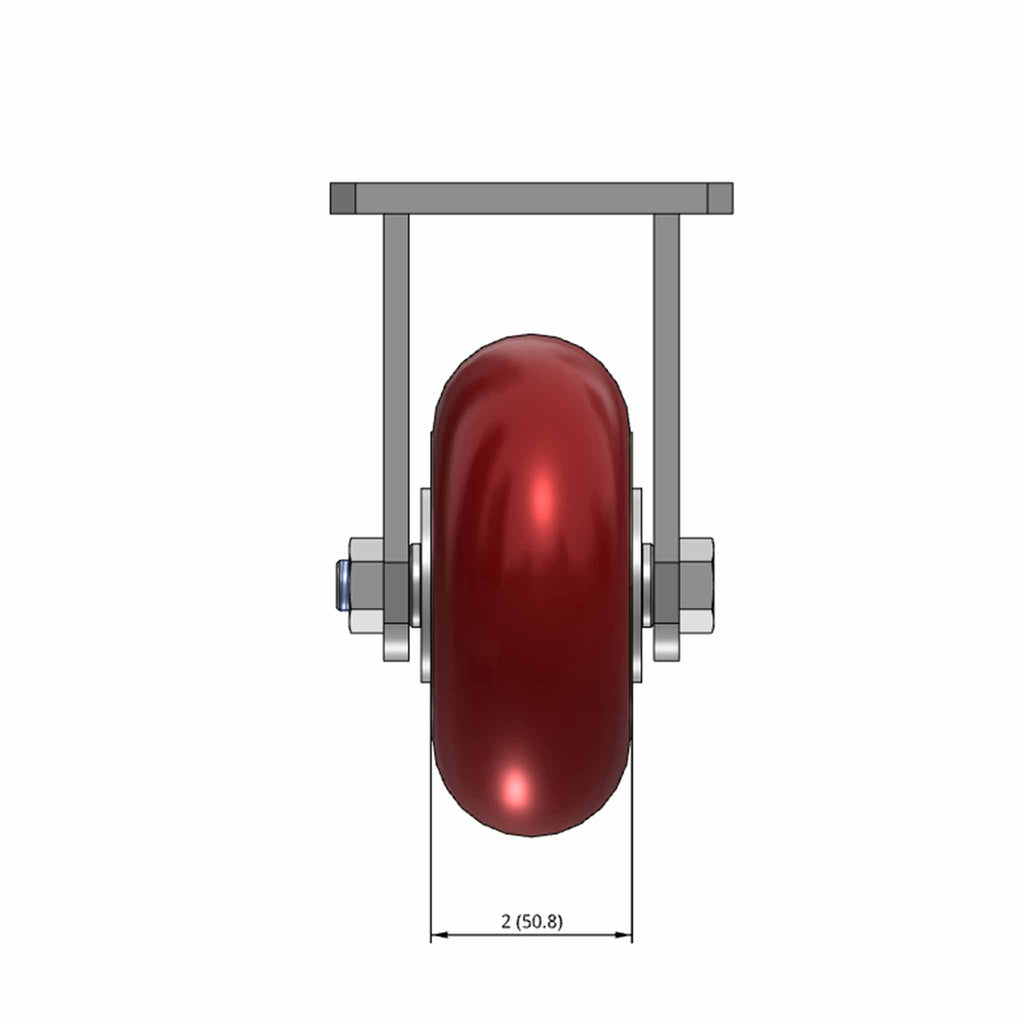

Wheel Tread Width:
2 in
Wheel Description:
AX - Round Polyurethane (Aluminum Core)
Wheel Color:
Maroon Tread on Aluminum Core
Wheel Bearing:
Precision Ball
Wheel Profile:
Round Tread
Wheel Hardness:
85 Shore A
Wheel Thread Guards:
None
Fastening:
4" x 4-1/2" top plate

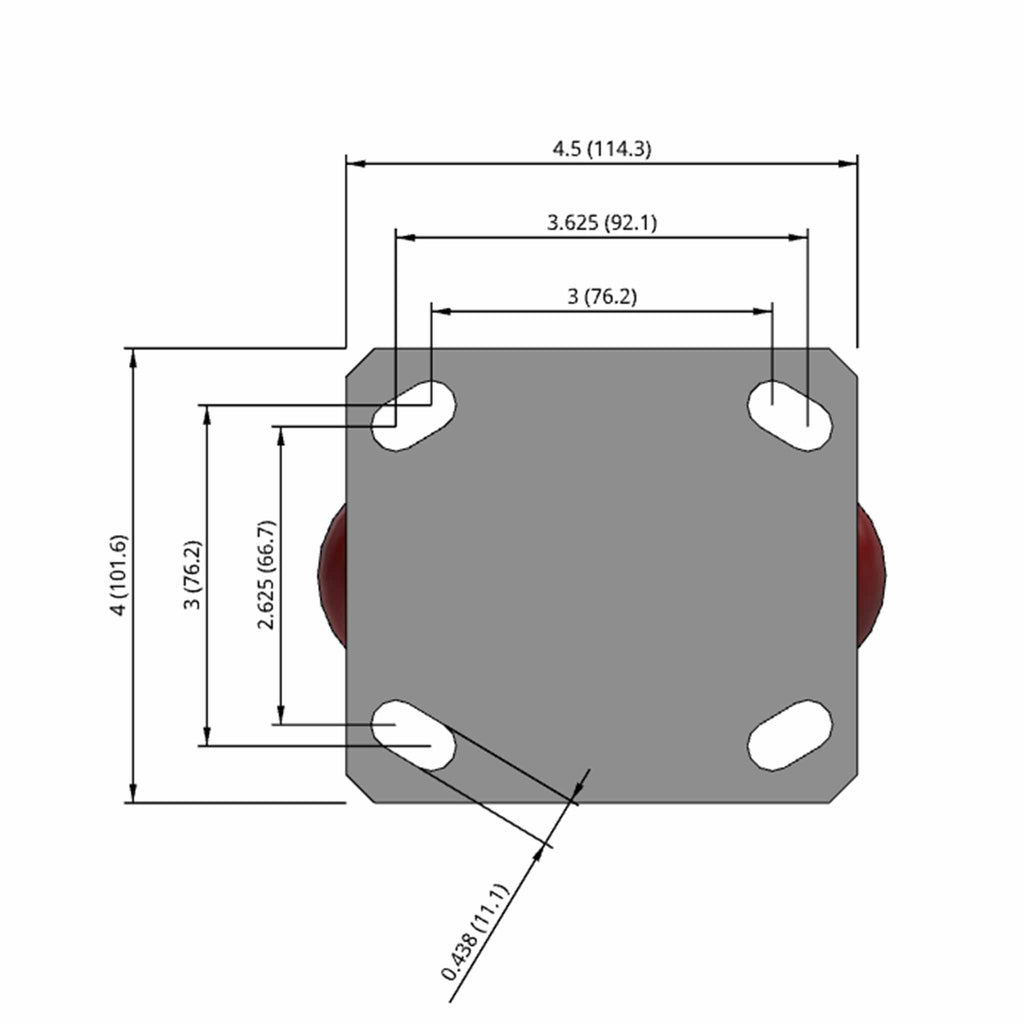

Bolt Hole Pattern:
2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:
3/8"
Finish:
Zinc Plated
Axle Size:
1/2" diameter
Operating Temperature Range:
-40°F to +180°F
Mfg:
110AX05228R
Warranty:
3 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
