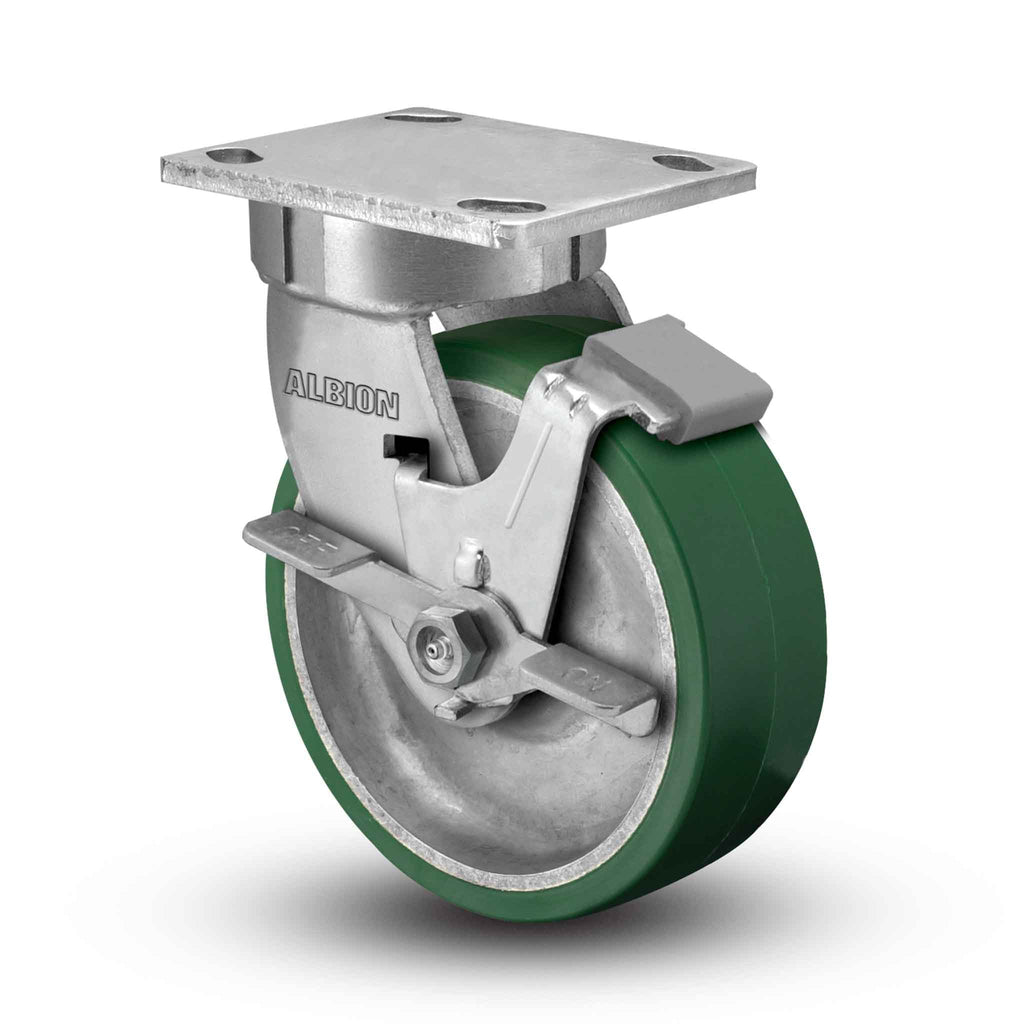

4"x2" Kingpinless Locking Caster with Polyurethane-on-Aluminum Wheel

Kingpinless & Floor Protective
Albion Casters SKU: 110PD04201SFBC
Fastening: 4" x 4-1/2" top plate | Load Capacity: 700 lb
Mount Height: 5.63 in | Swivel Radius: 4.13 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:
Sale price$87.68 Regular price$97.42

Related Products
Click red checkbox + adjust quantity to include when adding main item to cart

Description

This 4" x 2" polyurethane on aluminum heavy duty kingpinless swivel caster with tread brake is chemical and corrosion resistant, high capacity, and floor protective. Precision raceways and fully heat-treated construction make our 71 Series the ideal solutions for applications exposed to rugged conditions or high amounts of impact and shock. 71 Series are more durable than competitors case or induction-hardened construction, and longer lasting than conventional kingpin designs. These kingpinless casters eliminate kingpin failure, the leading cause of caster failure. Zinc plating provides an attractive, protective finish.

Product Details

Part Number:
71PAR42S-TB
SKU
110PD04201SFBC
Series:
71 Series - Kingpinless (to 2000 lb/ea)
Raceway Type:
Kingpinless Heat Treated 3/8" Ball Bearing Raceway with Zerk
Brake:
FBC Face Brake (FBC)
Load Capacity:
700 lb
Mounting Height:
5.63 in
Wheel Diameter:
4 in
Wheel Tread Width:
2 in
Wheel Description:
PD - Polyurethane (Aluminum Core)
Wheel Color:
Green Tread on Aluminum Core
Wheel Bearing:
Roller
Wheel Profile:
Flat with Slightly Rounded Edges
Wheel Hardness:
60 Shore D
Wheel Thread Guards:
None
Fastening:
4" x 4-1/2" top plate
Bolt Hole Pattern:
2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:
3/8"
Swivel Radius:
4.13 in
Swivel Lead:
1.19 in
Finish:
Zinc Plated
Axle Size:
1/2" diameter with zerk fitting
Operating Temperature Range:
-40°F to +180°F
Mfg:
110PD04201SFBC
Warranty:
3 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

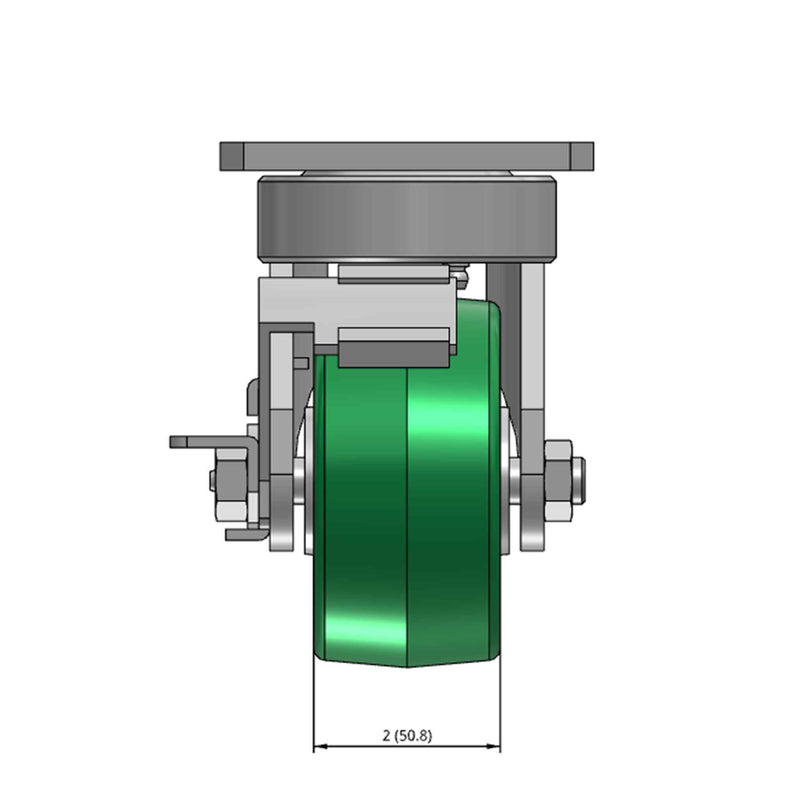

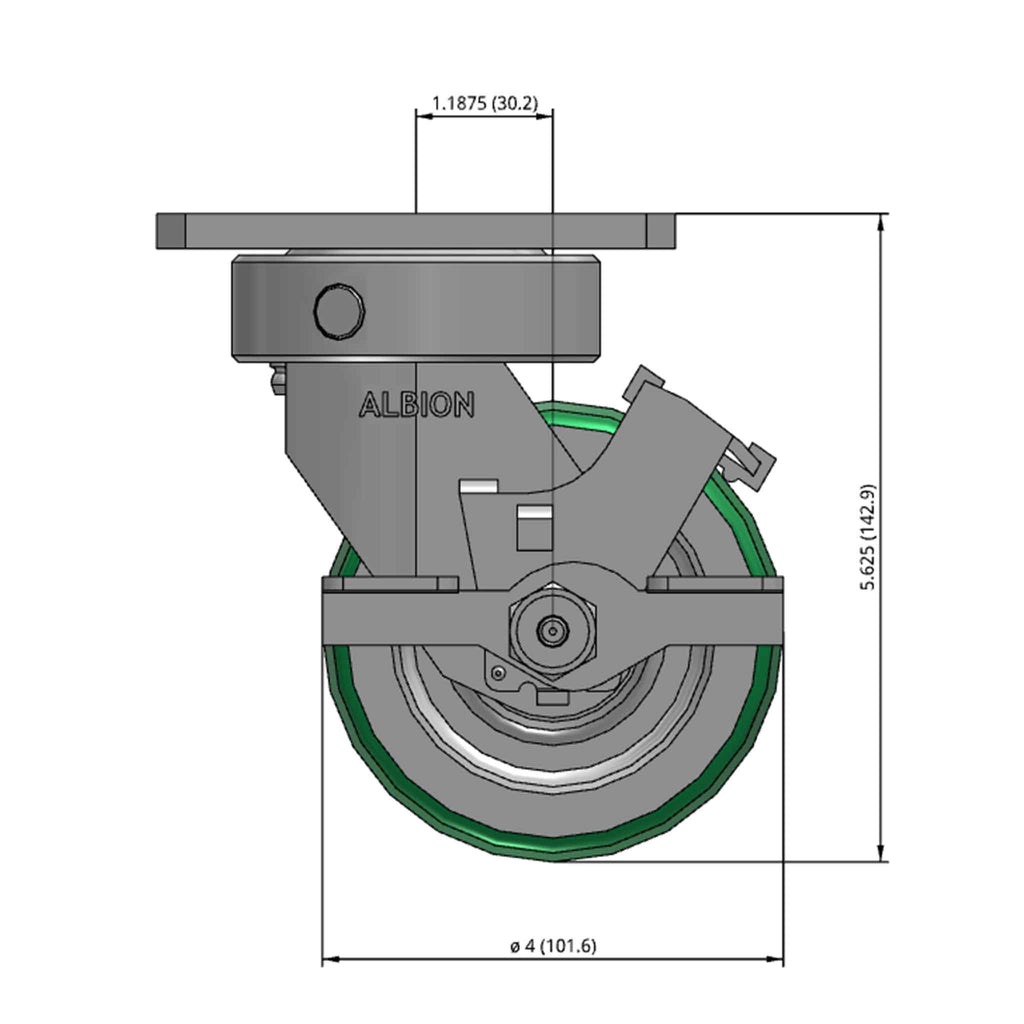

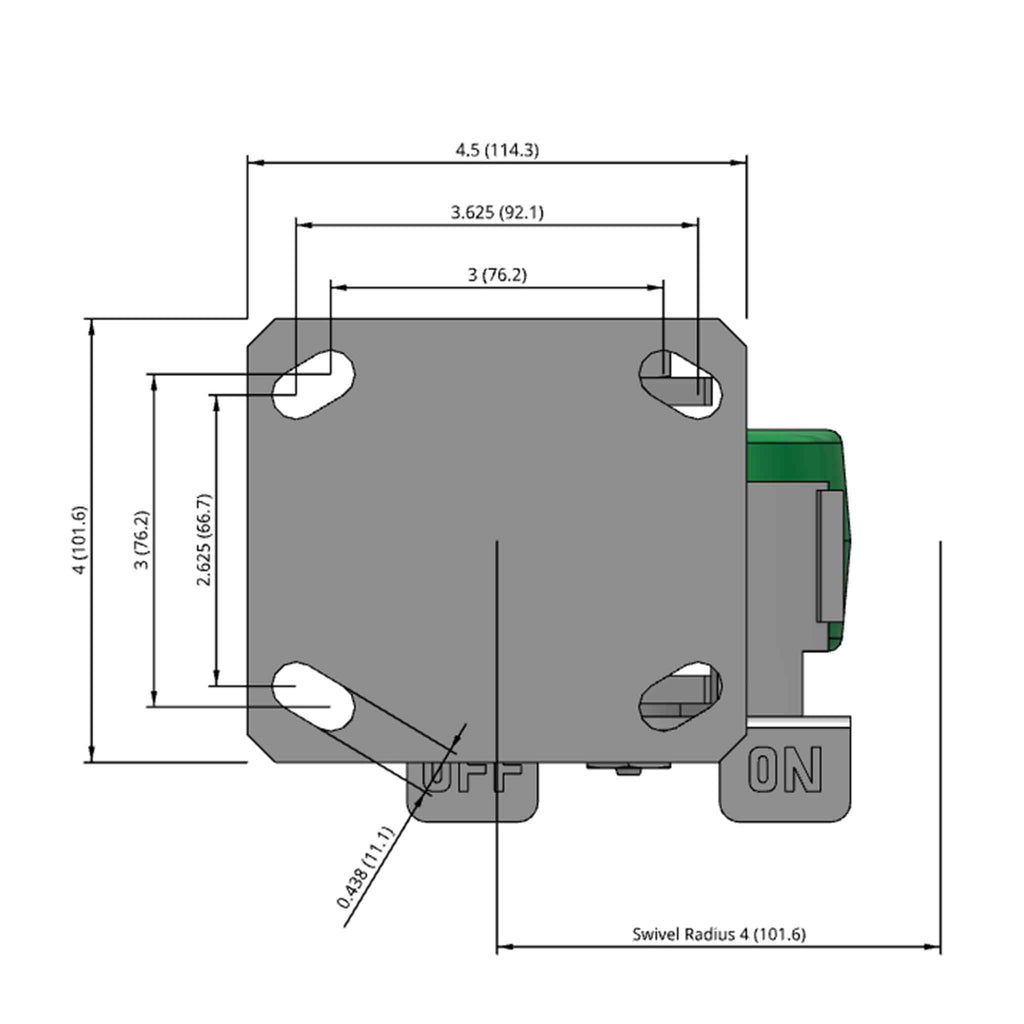

CAD Model and Datasheet Downloads
