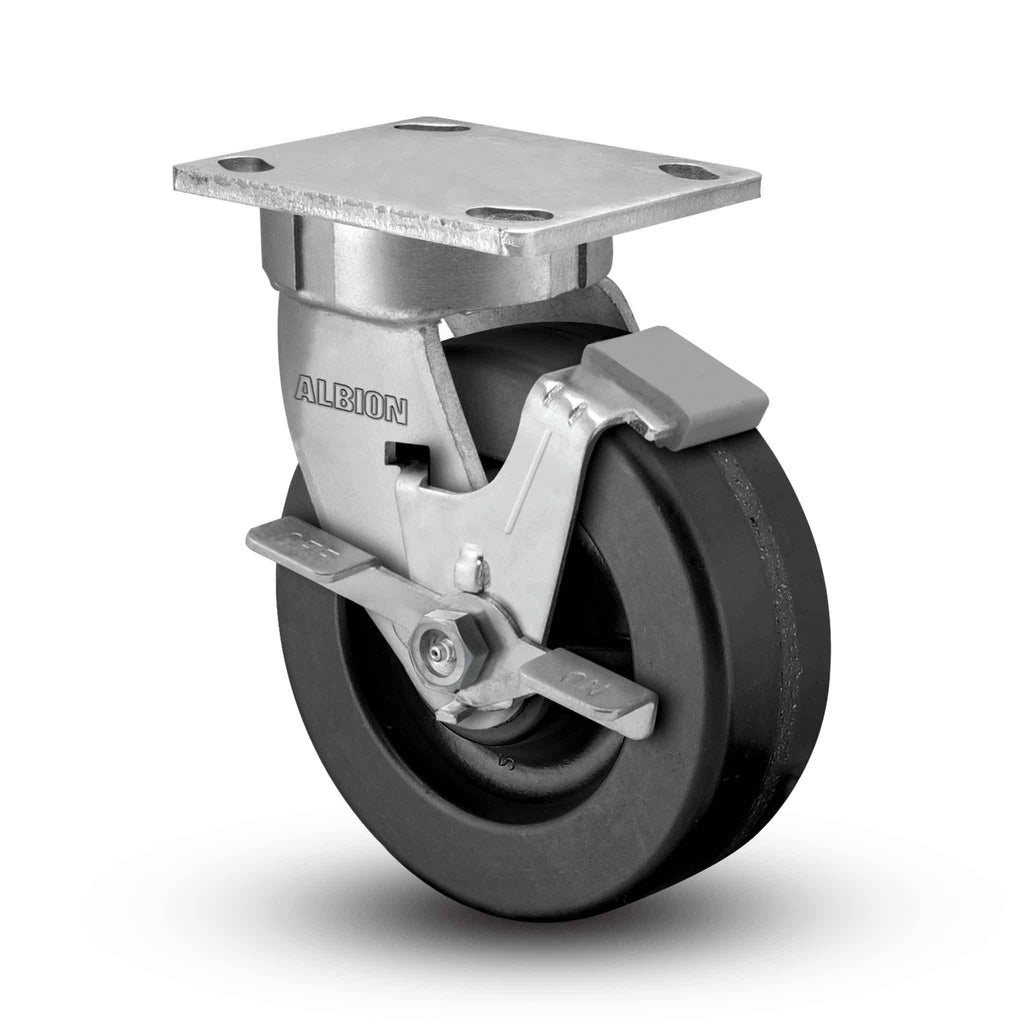

6"x2" Kingpinless Locking Caster with USA-Made Phenolic Wheel

Kingpinless
Albion Casters SKU: 110TM06201SFBC
Fastening: 4" x 4-1/2" top plate | Load Capacity: 1200 lb
Mount Height: 7.5 in | Swivel Radius: 4.56 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:
Sale price$63.90 Regular price$70.99

Related Product Add-ons
Click red checkbox + adjust quantity to include when adding main item to cart

Description

Inexpensive and durable, this 6" x 2" phenolic heavy duty kingpinless swivel caster with tread break is high capacity and floor protective. Phenolic wheels should not be used in wet or moist applications.Precision raceways and fully heat-treated construction make our 71 Series the ideal solutions for applications exposed to rugged conditions or high amounts of impact and shock. 71 Series are more durable than competitors case or induction-hardened construction, and longer lasting than conventional kingpin designs. These kingpinless casters eliminate kingpin failure, the leading cause of caster failure. Zinc plating provides an attractive, protective finish.

Product Details

Part Number:
71PNR62S-TB
SKU
110TM06201SFBC
Series:
71 Series - Kingpinless (to 2000 lb/ea)
Raceway Type:
Kingpinless Heat Treated 3/8" Ball Bearing Raceway with Zerk
Brake:
FBC Face Brake (FBC)
Load Capacity:
1200 lb
Mounting Height:
7.5 in
Wheel Diameter:
6 in

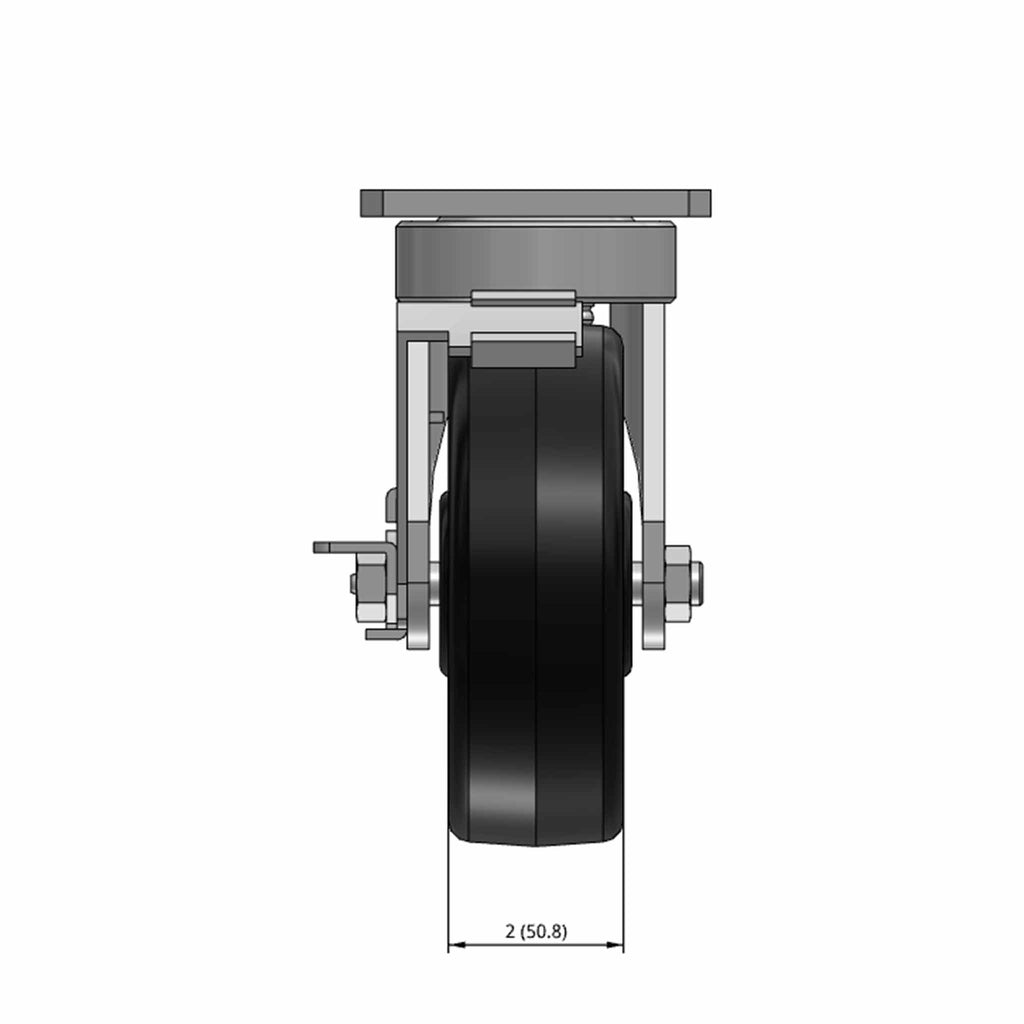

Wheel Tread Width:
2 in
Wheel Description:
TM - Phenolic
Wheel Color:
Black Phenolic Resin
Wheel Bearing:
Roller
Wheel Profile:
Crowned Tread
Wheel Hardness:
Rockwell 102 E
Wheel Thread Guards:
None
Fastening:
4" x 4-1/2" top plate

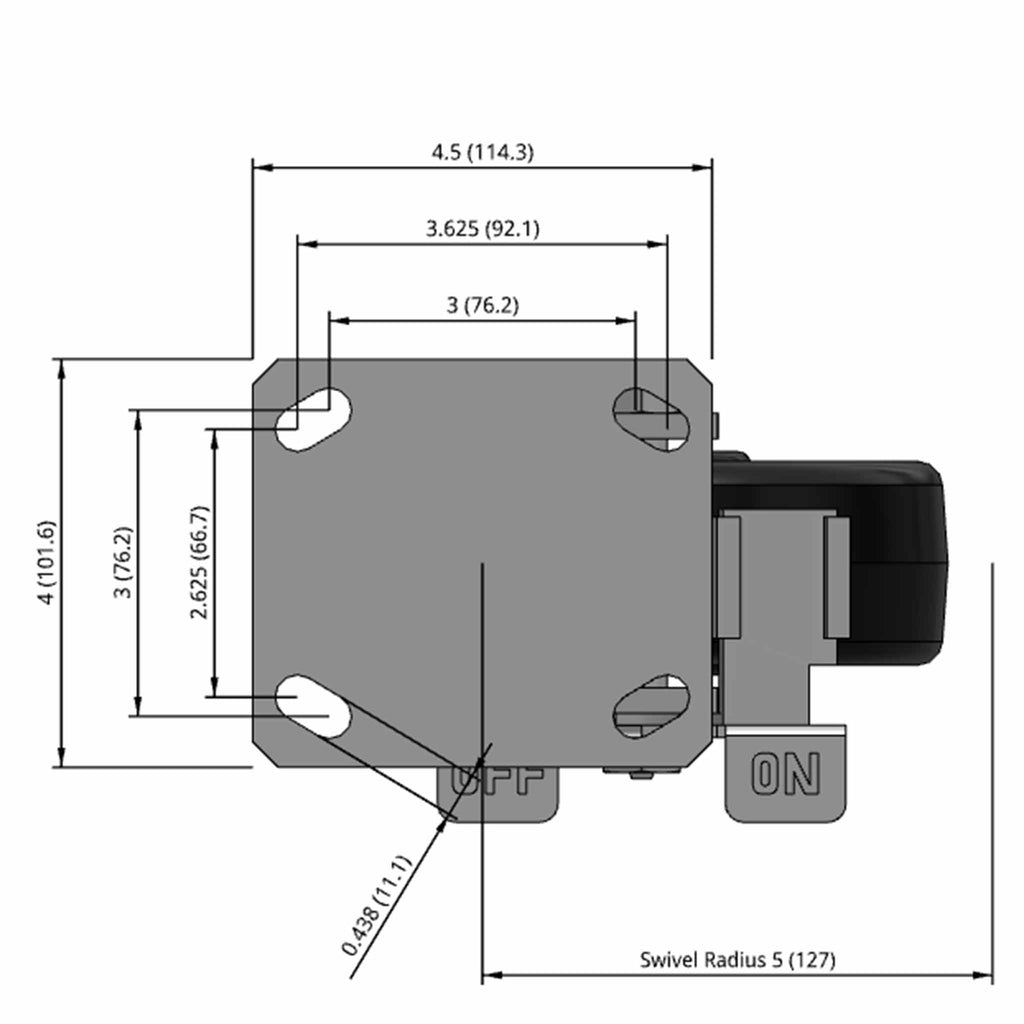

Bolt Hole Pattern:
2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:
3/8"
Swivel Radius:
4.56 in
Swivel Lead:
1.56 in
Finish:
Zinc Plated
Axle Size:
1/2" diameter with zerk fitting
Operating Temperature Range:
-65°F to +250°F (+300°F intermittent)
Mfg:
110TM06201SFBC
Warranty:
3 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

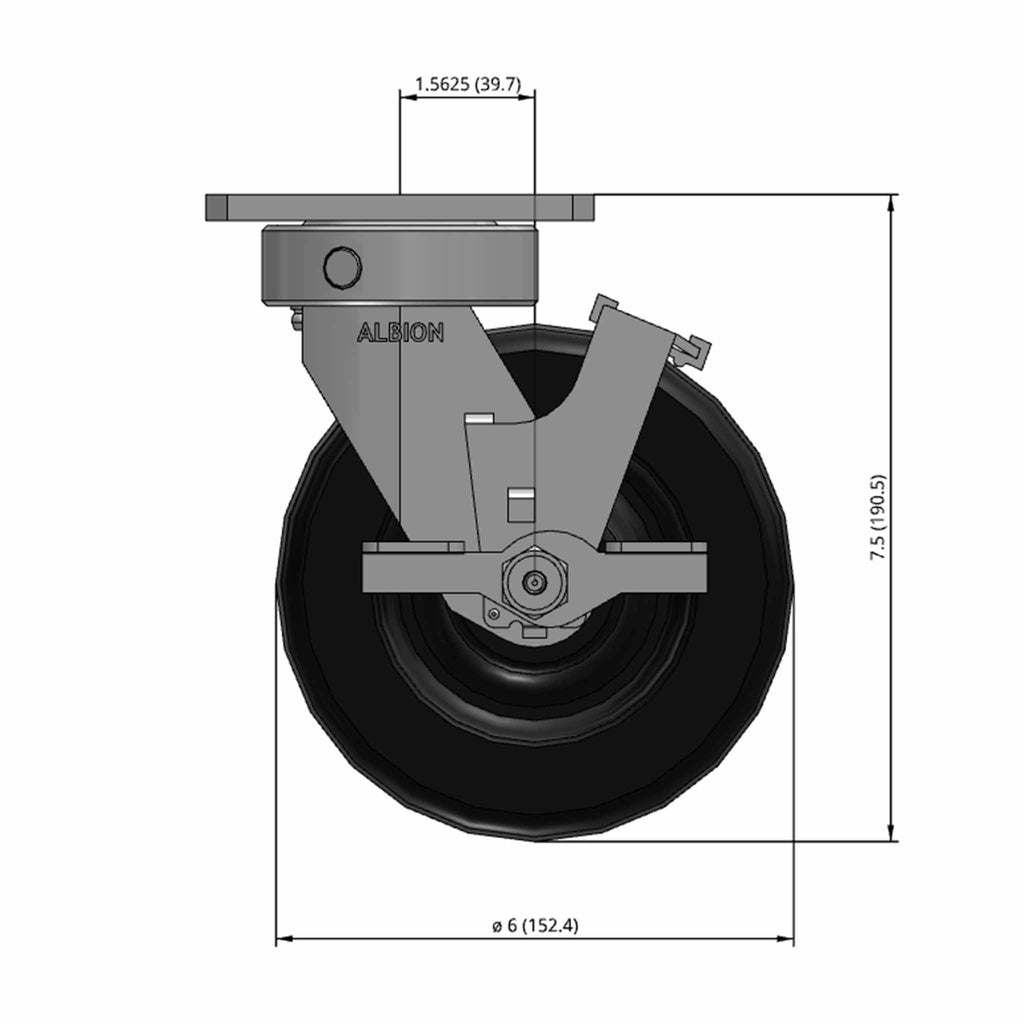

CAD Model and Datasheet Downloads
