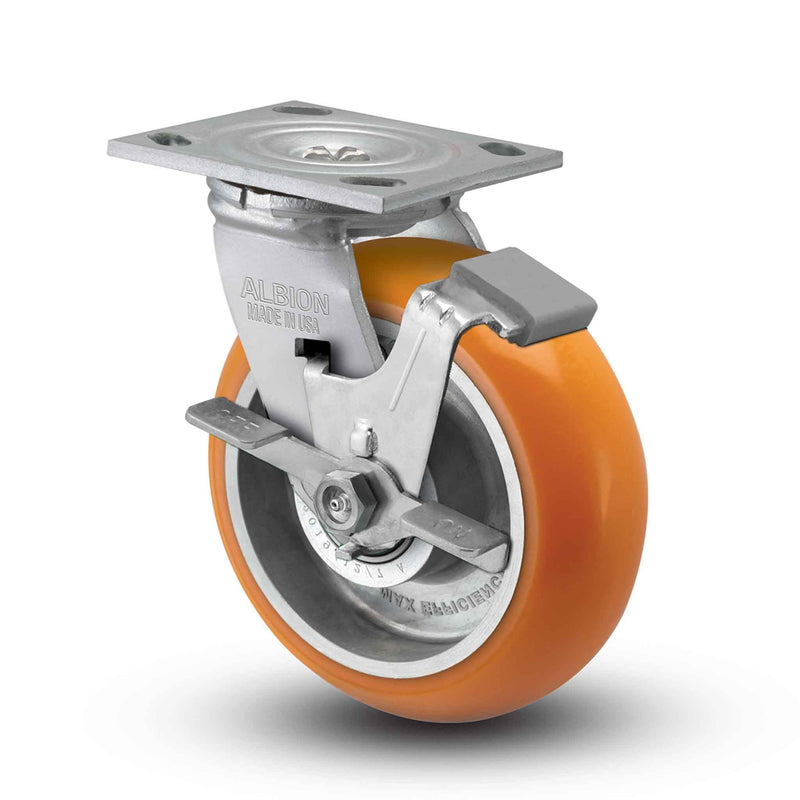

Main view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, AN - Round Polyurethane (Aluminum Core) wheel and 800 lb. capacity part

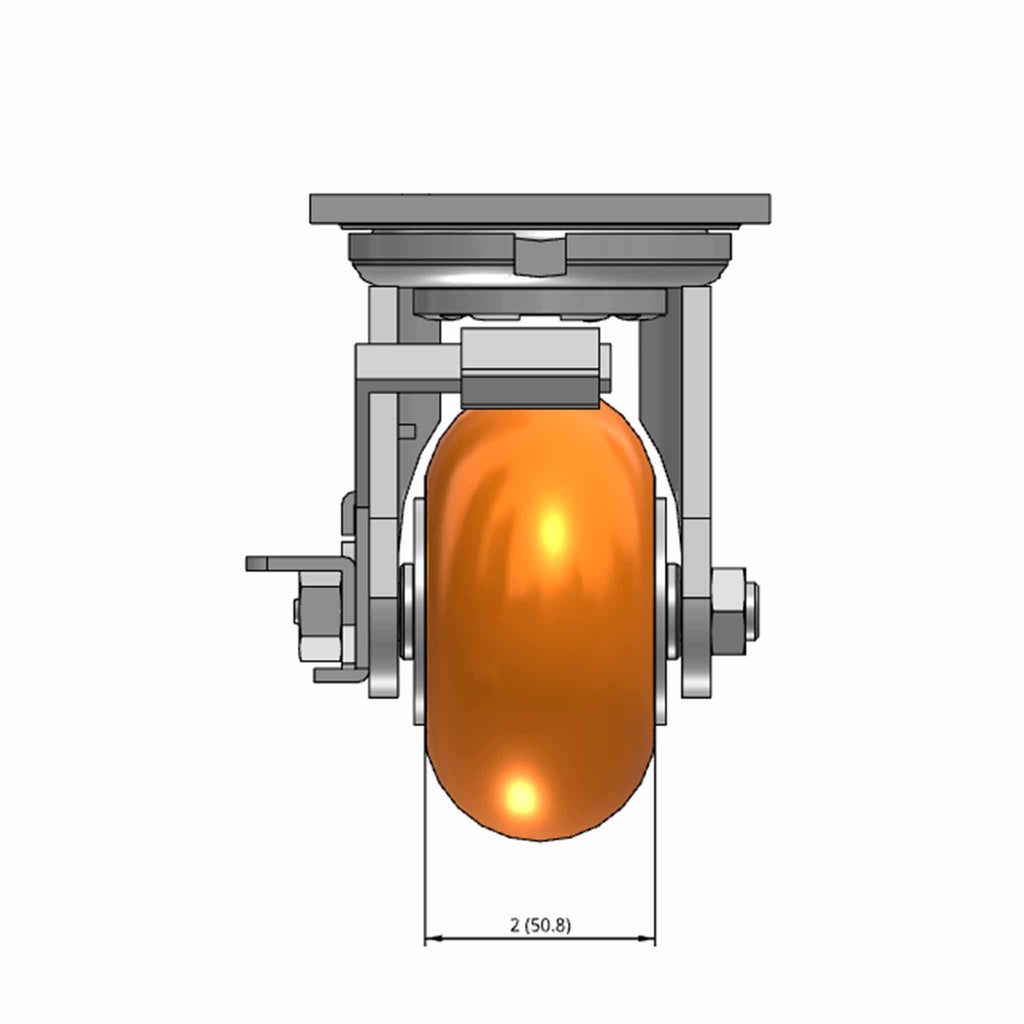

Front dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, AN - Round Polyurethane (Aluminum Core) wheel and 800 lb. capacity part

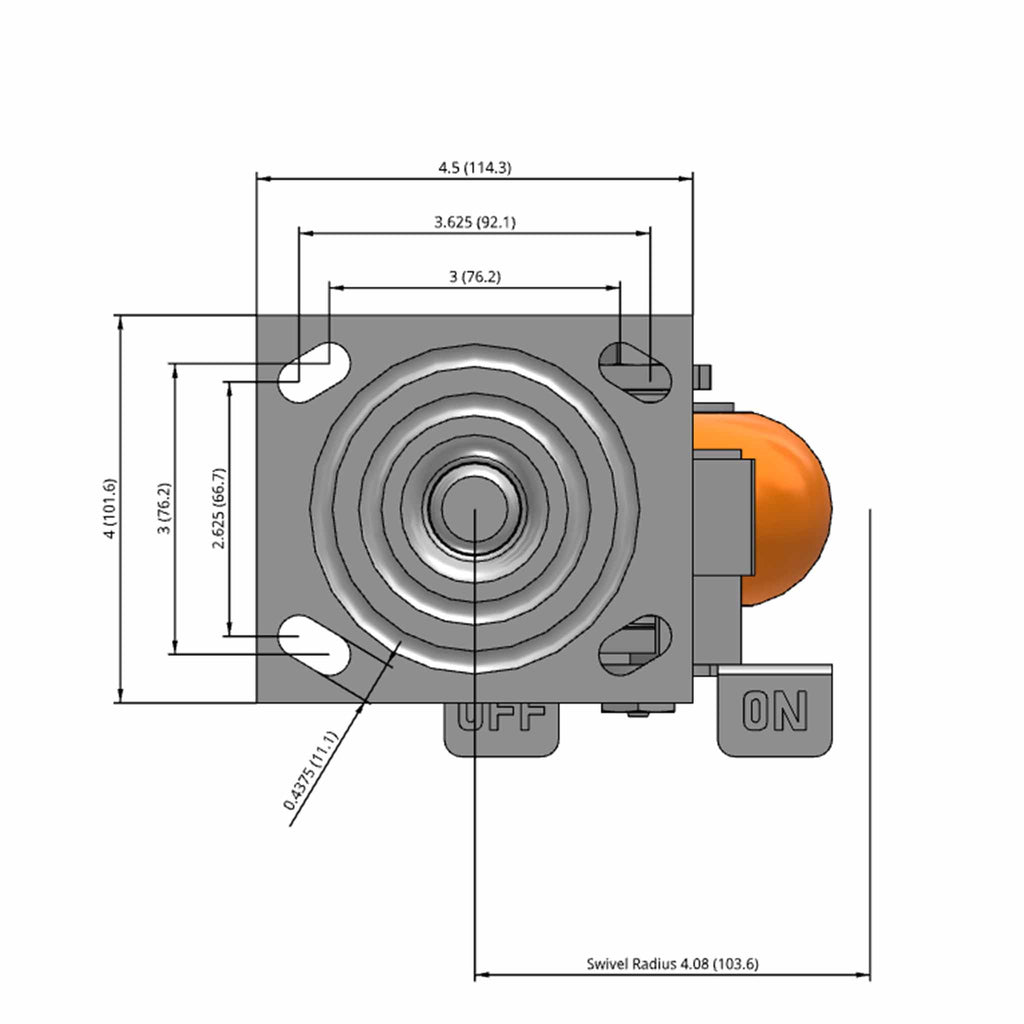

Top dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, AN - Round Polyurethane (Aluminum Core) wheel and 800 lb. capacity part

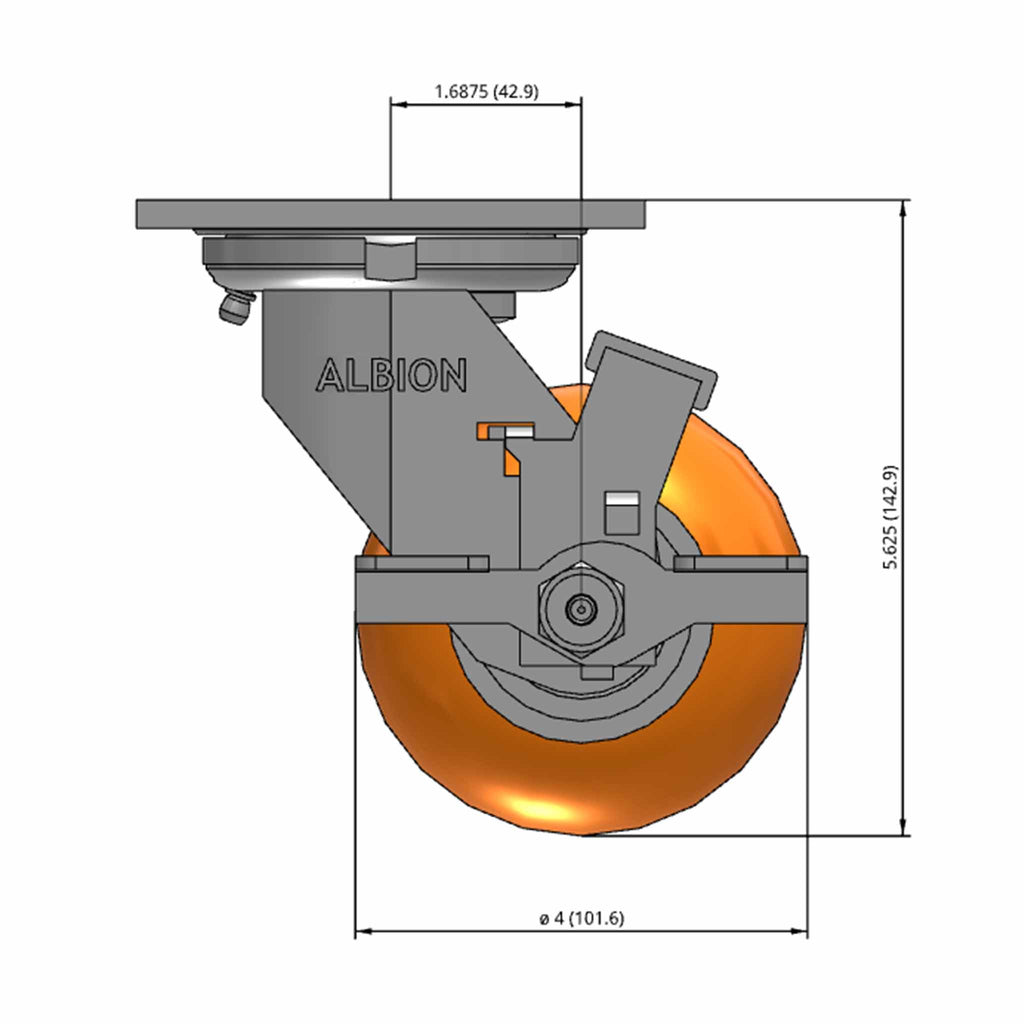

Side dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, AN - Round Polyurethane (Aluminum Core) wheel and 800 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4"x2" USA-Rig Side Locking Caster with MAX-Efficiency Orange Wheel

Name: 4"x2" USA-Rig Side Locking Caster with MAX-Efficiency Orange Wheel
Brand: Albion Casters
SKU: 16AN04228SFBA
Price: 55.72 USD
Availability: InStock

Ergonomic Wheel

Albion Casters SKU: 16AN04228SFBA
Fastening: 4" x 4-1/2" top plate | Load Capacity: 800 lb
Mount Height: 5.63 in | Swivel Radius: 4.08 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$55.72 $65.55

Quantity:

Share this product

This 4" x 2" orange polyurethane on aluminum core premium heavy duty swivel caster with tread brake rolls effortlessly, making it excellent for manual push and towing applications. Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.

Part Number:	44XOB42S-TB
SKU	16AN04228SFBA
Series:	44 Series - Medium/Heavy (to 1250 lb/ea)
Raceway Type:	3/4" Kingpin Hardened Dual Ball Bearing Raceway
Brake:	FBA Face Brake (FBA)
Load Capacity:	800 lb
Mounting Height:	5.63 in
Wheel Diameter:	4 in
Wheel Tread Width:	2 in
Wheel Description:	AN - Round Polyurethane (Aluminum Core)
Wheel Color:	Orange Tread on Aluminum Core
Wheel Bearing:	Precision Ball
Wheel Profile:	Radius Tread
Wheel Hardness:	85 Shore A
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate
Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	4.08 in
Swivel Lead:	1.69 in
Finish:	Zinc Plated
Axle Size:	1/2" diameter
Operating Temperature Range:	-40°F to +180°F
Mfg:	16AN04228SFBA
Warranty:	3 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

4"x2" USA-Rig Side Locking Caster with MAX-Efficiency Orange Wheel

Description

Product Details

Part Number:

44XOB42S-TB

SKU

16AN04228SFBA

Series:

44 Series - Medium/Heavy (to 1250 lb/ea)

Raceway Type:

3/4" Kingpin Hardened Dual Ball Bearing Raceway

Brake:

FBA Face Brake (FBA)

Load Capacity:

800 lb

Mounting Height:

5.63 in

Wheel Diameter:

4 in

Wheel Tread Width:

2 in

Wheel Description:

AN - Round Polyurethane (Aluminum Core)

Wheel Color:

Orange Tread on Aluminum Core

Wheel Bearing:

Precision Ball

Wheel Profile:

Radius Tread

Wheel Hardness:

85 Shore A

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

4.08 in

Swivel Lead:

1.69 in

Finish:

Zinc Plated

Axle Size:

1/2" diameter

Operating Temperature Range:

-40°F to +180°F

Mfg:

16AN04228SFBA

Warranty:

3 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
