4"x2" USA-Rig Side Locking Caster with Heavy-Duty Cast Iron Wheel

Albion Casters SKU: 16CA04201SFBA
Fastening: 4" x 4-1/2" top plate | Load Capacity: 800 lb
Mount Height: 5.63 in | Swivel Radius: 4.08 in

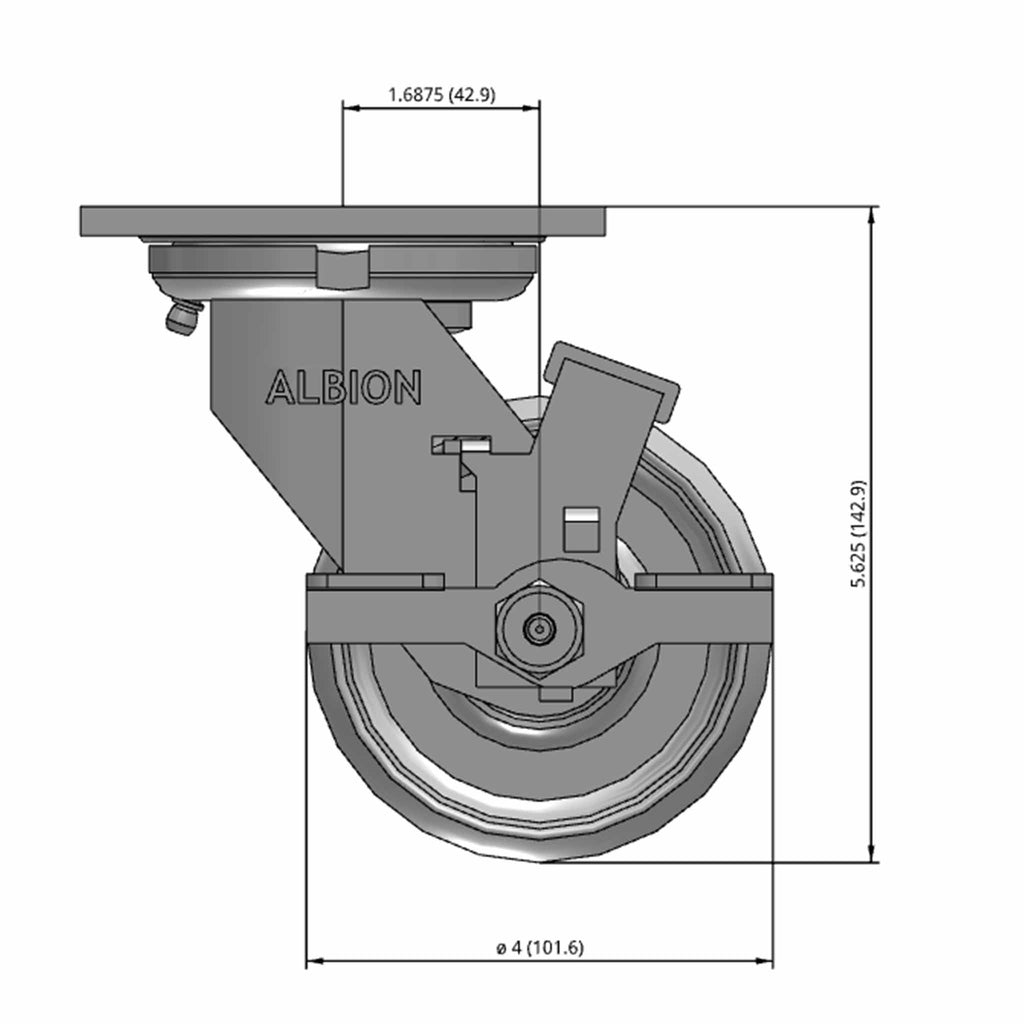

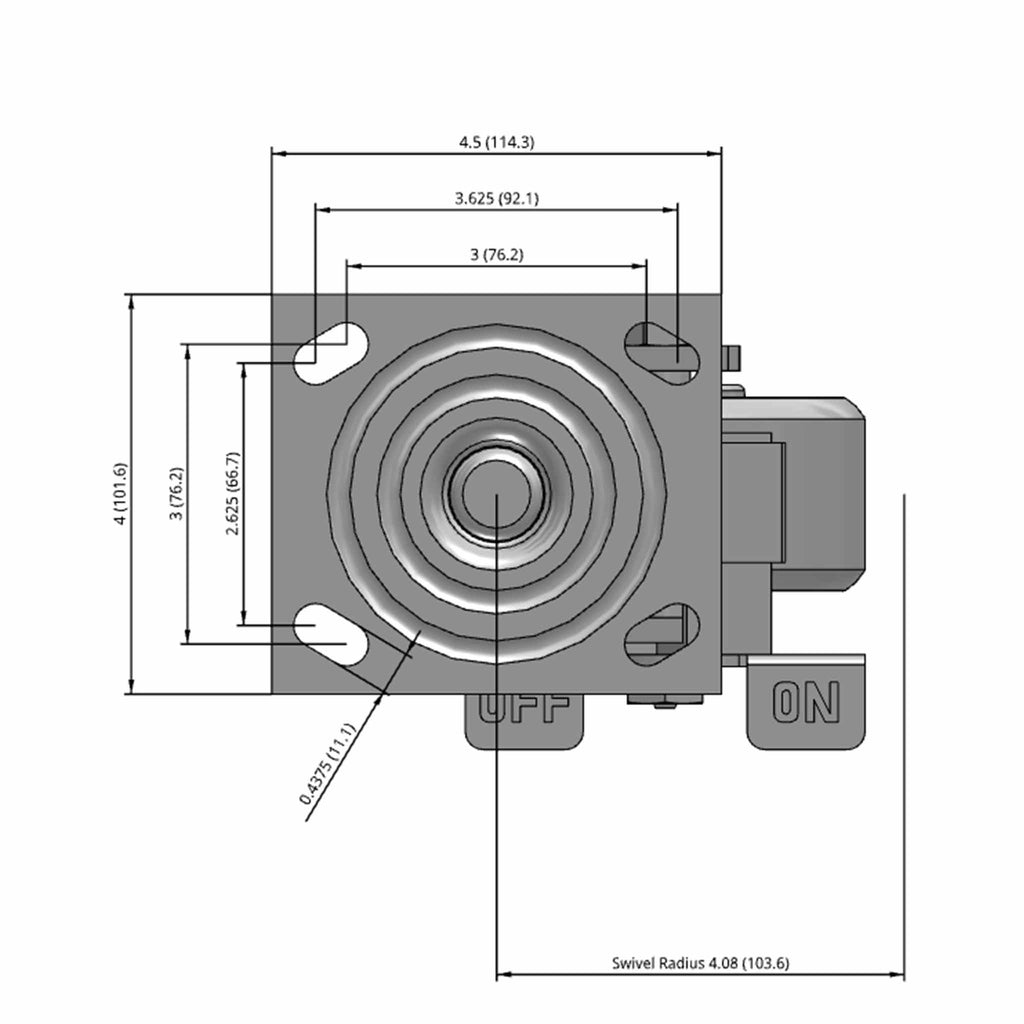

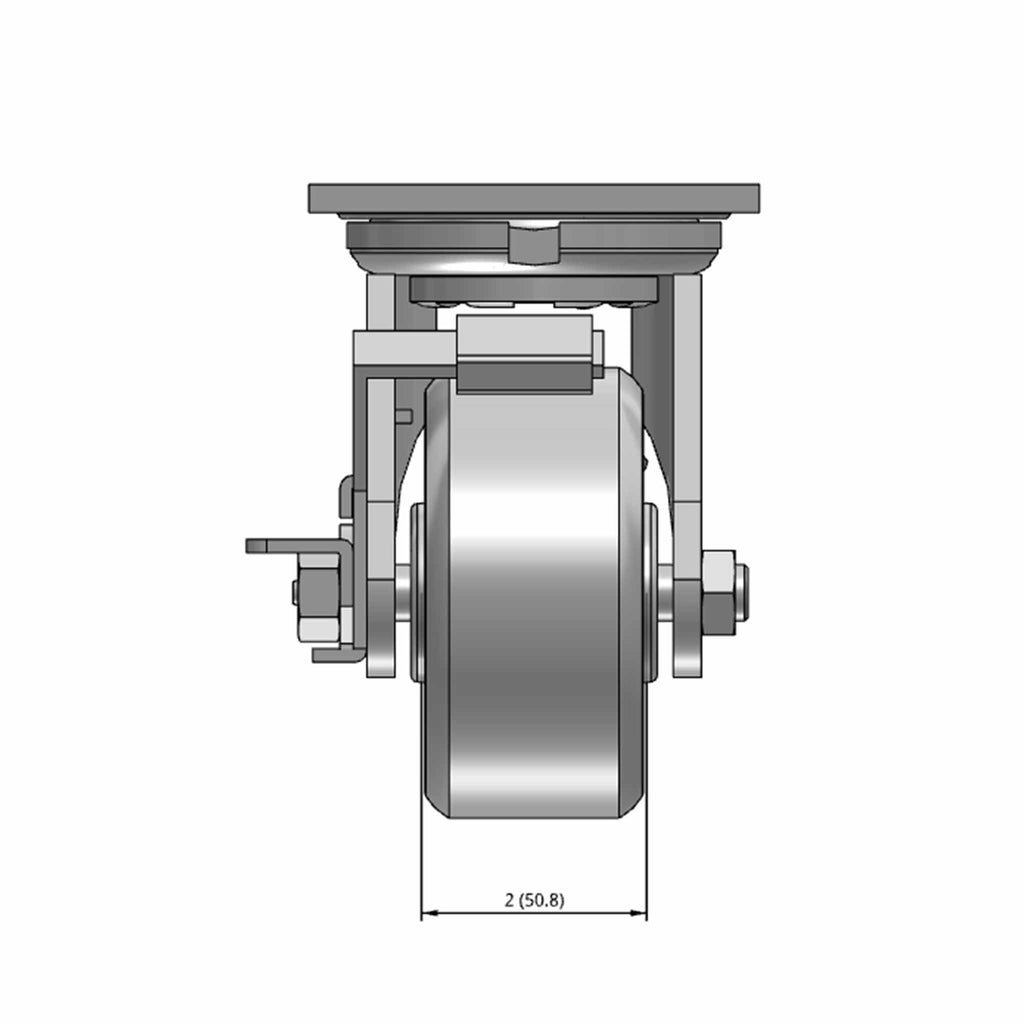

See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:
Sale price$33.16 Regular price$39.01

Description

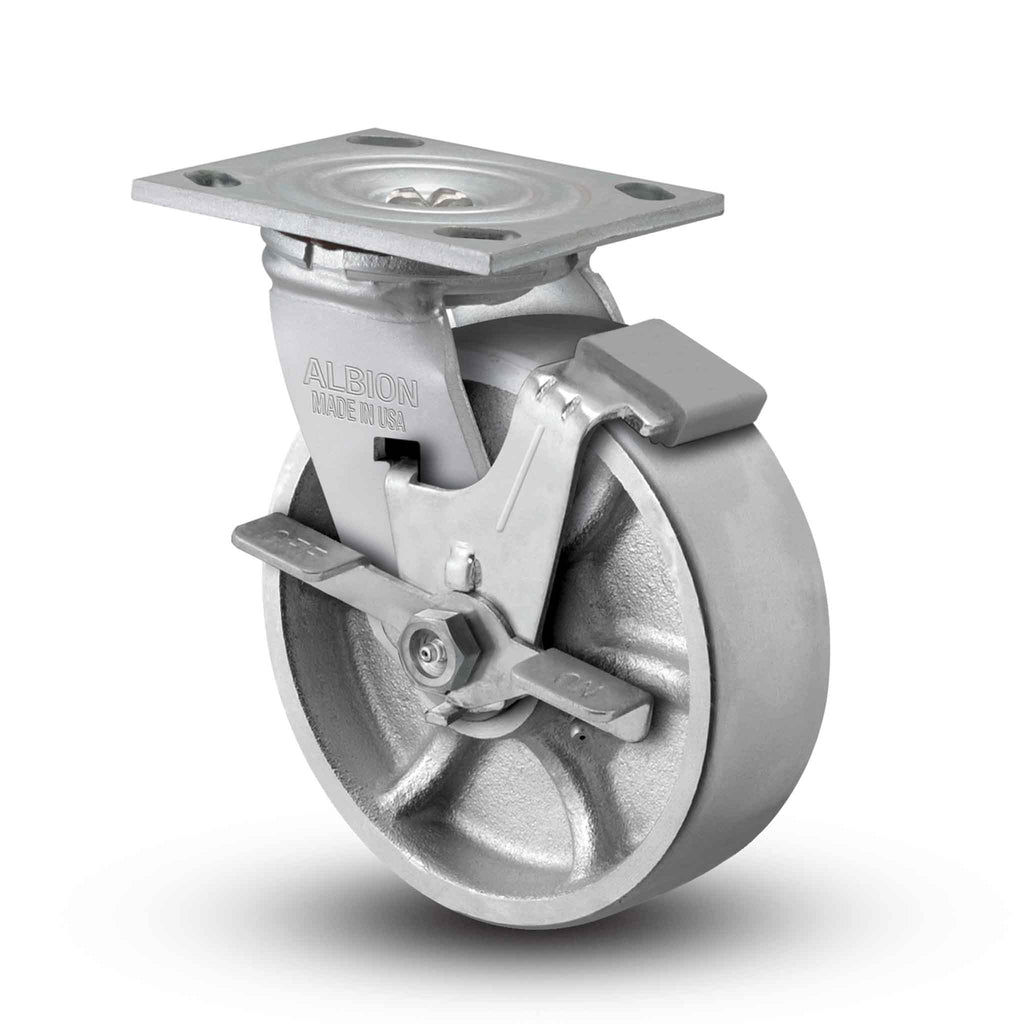

This 4" x 2" cast iron premium heavy duty swivel caster with tread brake offers high capacity at a lower price. Cast iron wheels are ideal for heavy loads in industrial environments. Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.

Product Details

Part Number:
44CIR42S-TB
SKU
16CA04201SFBA
Series:
44 Series - Medium/Heavy (to 1250 lb/ea)
Raceway Type:
3/4" Kingpin Hardened Dual Ball Bearing Raceway
Brake:
FBA Face Brake (FBA)
Load Capacity:
800 lb
Mounting Height:
5.63 in
Wheel Diameter:
4 in
Wheel Tread Width:
2 in
Wheel Description:
CA - Cast Iron
Wheel Color:
Grey Enamel
Wheel Bearing:
Roller
Wheel Profile:
Flat with Rounded Edges
Wheel Hardness:
Brinell 145
Wheel Thread Guards:
None
Fastening:
4" x 4-1/2" top plate
Bolt Hole Pattern:
2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:
3/8"
Swivel Radius:
4.08 in
Swivel Lead:
1.69 in
Finish:
Zinc Plated
Axle Size:
1/2" diameter with zerk fitting
Operating Temperature Range:
Up to +800°F; special grease required for high-temp applications; contact us for details
Mfg:
16CA04201SFBA
Warranty:
3 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

CAD Model and Datasheet Downloads
