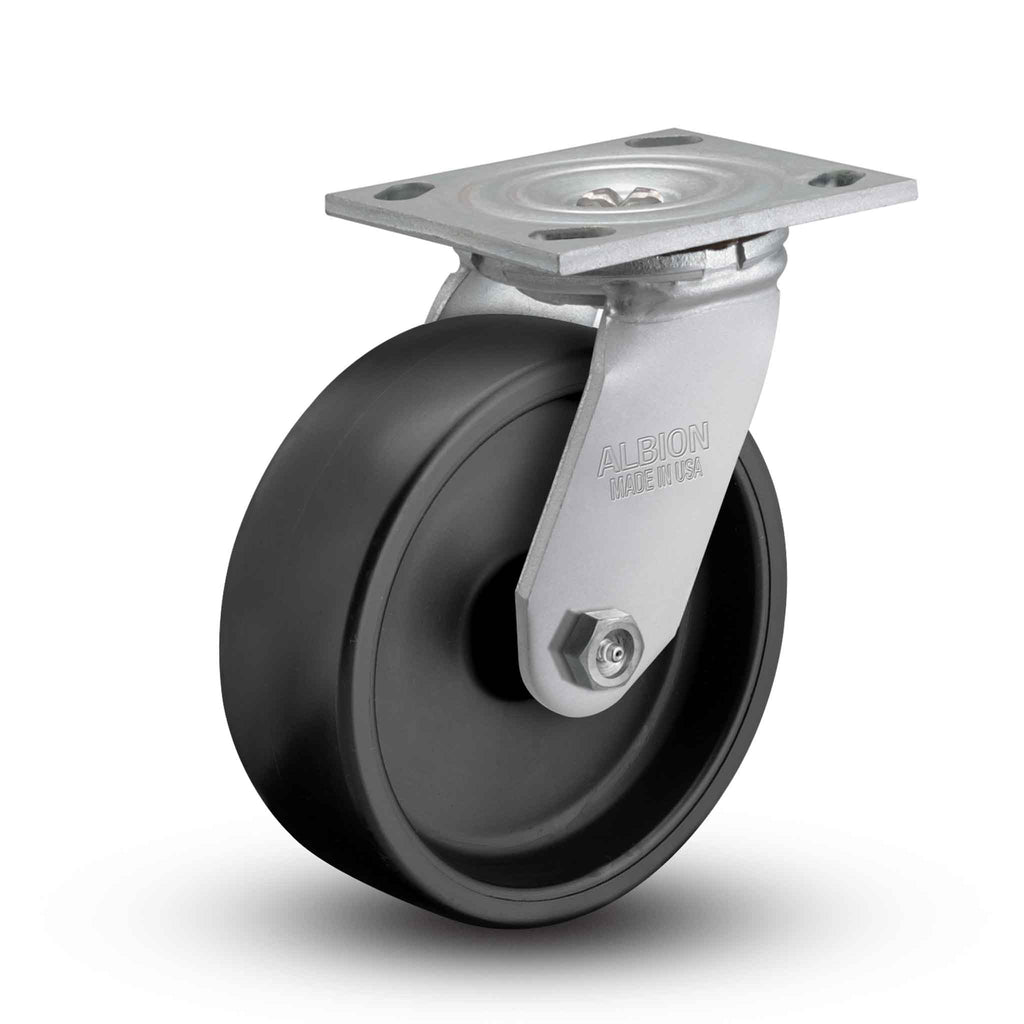

Main view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, without a brake, PB - Polypropylene (Black) wheel and 500 lb. capacity part

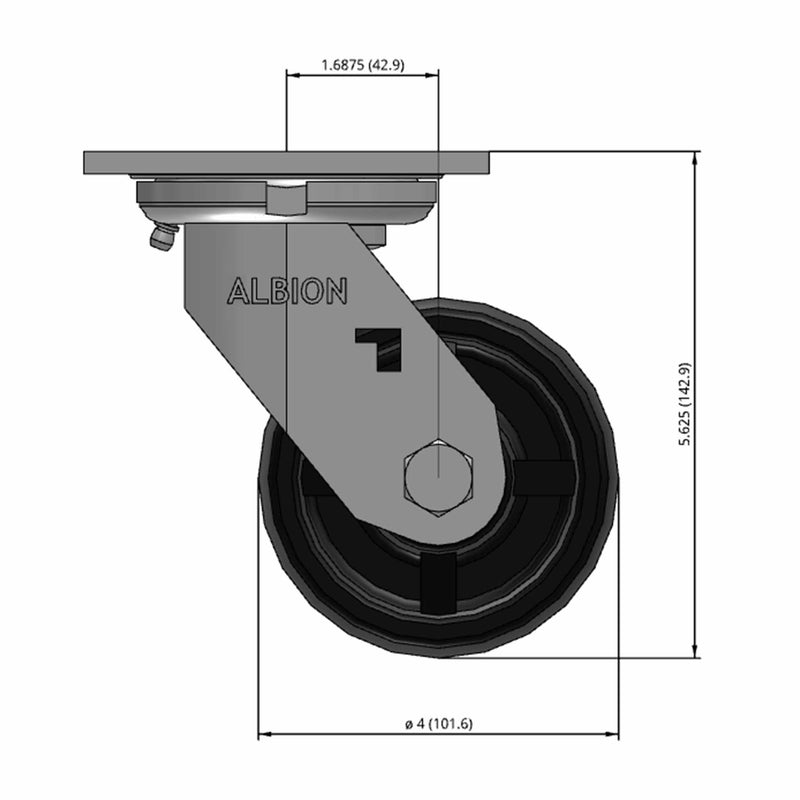

Front dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, without a brake, PB - Polypropylene (Black) wheel and 500 lb. capacity part

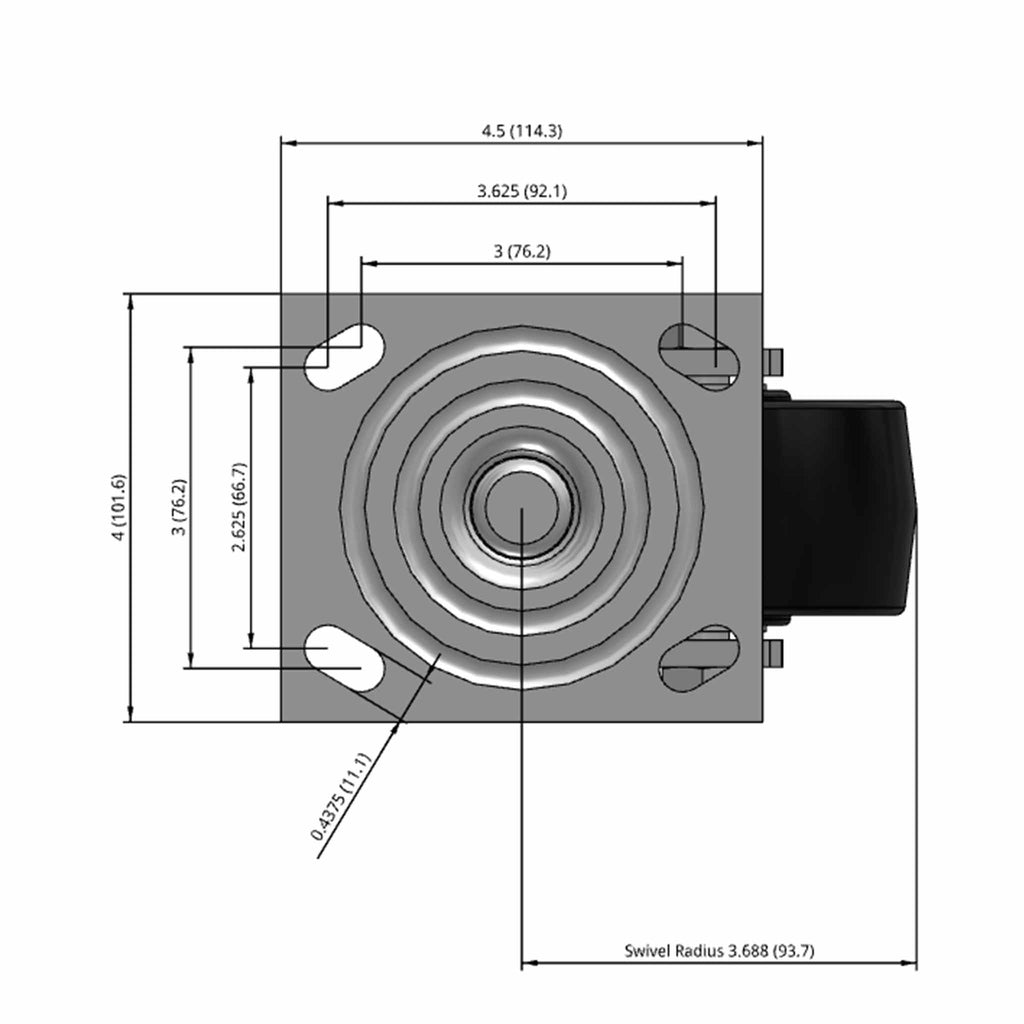

Top dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, without a brake, PB - Polypropylene (Black) wheel and 500 lb. capacity part

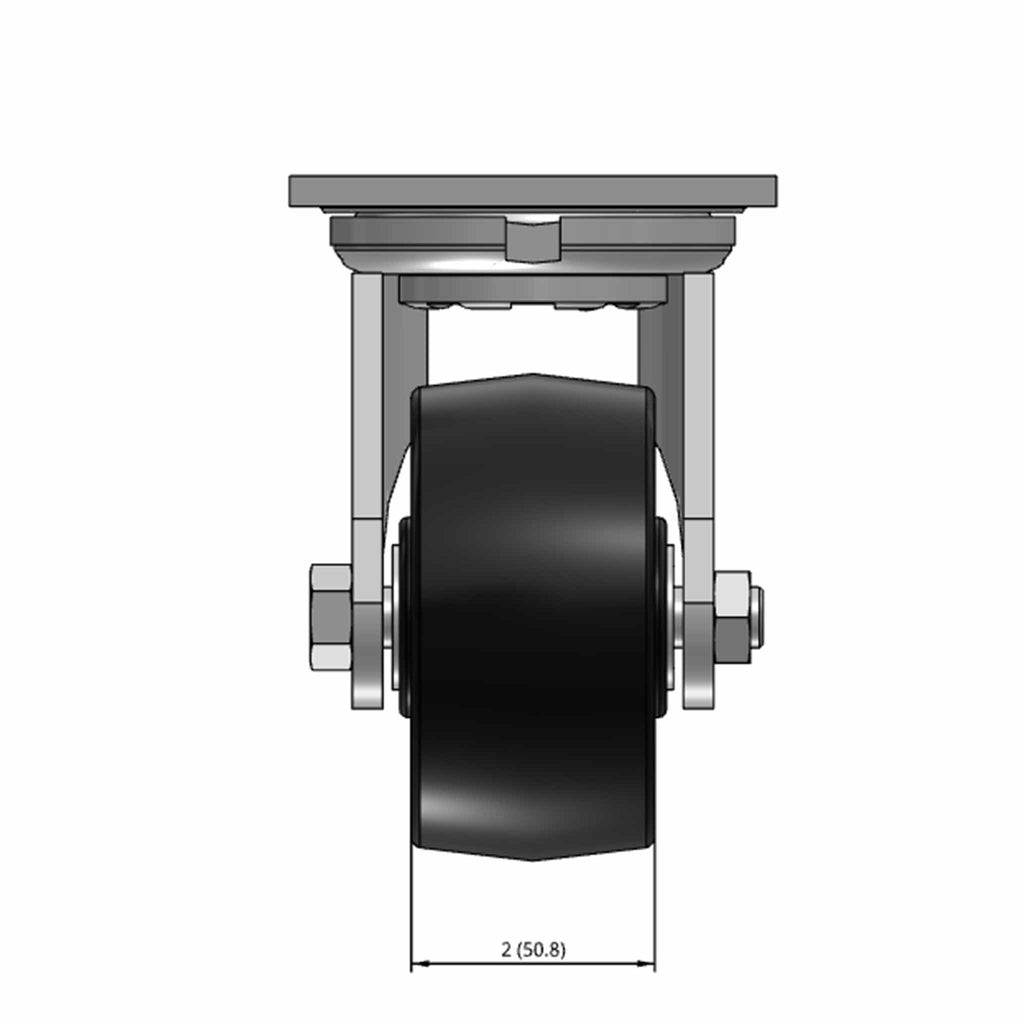

Side dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, without a brake, PB - Polypropylene (Black) wheel and 500 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4"x2" USA-Rig Swivel Caster with Water Resistant Polypropylene Wheel

Name: 4"x2" USA-Rig Swivel Caster with Water Resistant Polypropylene Wheel
Brand: Albion Casters
SKU: 16PB04201S
Price: 23.13 USD
Availability: InStock

Albion Casters SKU: 16PB04201S
Fastening: 4" x 4-1/2" top plate | Load Capacity: 500 lb
Mount Height: 5.63 in | Swivel Radius: 3.69 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$23.13 $27.21

Quantity:

Share this product

This 4" x 2" polypropylene premium heavy duty swivel caster has a one piece plastic wheel ideal for use in wet and chemical environments. Polypropylene is non-reactive and non-marking.Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.

Part Number:	44POR42S
SKU	16PB04201S
Series:	44 Series - Medium/Heavy (to 1250 lb/ea)
Raceway Type:	3/4" Kingpin Hardened Dual Ball Bearing Raceway
Brake:	None
Load Capacity:	500 lb
Mounting Height:	5.63 in
Wheel Diameter:	4 in
Wheel Tread Width:	2 in
Wheel Description:	PB - Polypropylene (Black)
Wheel Color:	Black Polypropylene
Wheel Bearing:	Roller
Wheel Profile:	Crowned Tread
Wheel Hardness:	65 Shore D
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate
Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	3.69 in
Swivel Lead:	1.69 in
Finish:	Zinc Plated
Axle Size:	1/2" diameter with zerk fitting
Operating Temperature Range:	-20°F to +180°F
Mfg:	16PB04201S
Warranty:	3 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

4"x2" USA-Rig Swivel Caster with Water Resistant Polypropylene Wheel

Description

Product Details

Part Number:

44POR42S

SKU

16PB04201S

Series:

44 Series - Medium/Heavy (to 1250 lb/ea)

Raceway Type:

3/4" Kingpin Hardened Dual Ball Bearing Raceway

Brake:

None

Load Capacity:

500 lb

Mounting Height:

5.63 in

Wheel Diameter:

4 in

Wheel Tread Width:

2 in

Wheel Description:

PB - Polypropylene (Black)

Wheel Color:

Black Polypropylene

Wheel Bearing:

Roller

Wheel Profile:

Crowned Tread

Wheel Hardness:

65 Shore D

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

3.69 in

Swivel Lead:

1.69 in

Finish:

Zinc Plated

Axle Size:

1/2" diameter with zerk fitting

Operating Temperature Range:

-20°F to +180°F

Mfg:

16PB04201S

Warranty:

3 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
