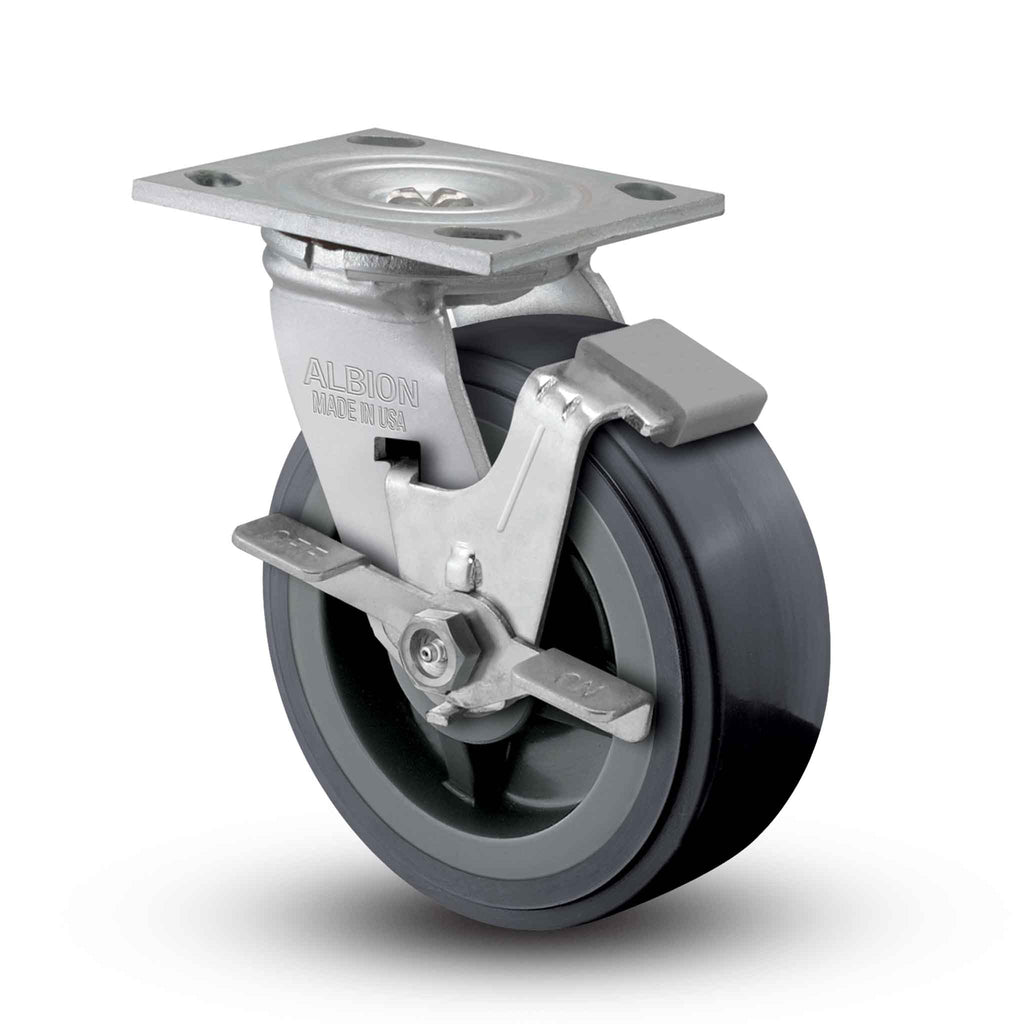

Main view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, XA - Polyurethane (Polypropylene Core) wheel and 600 lb. capacity part

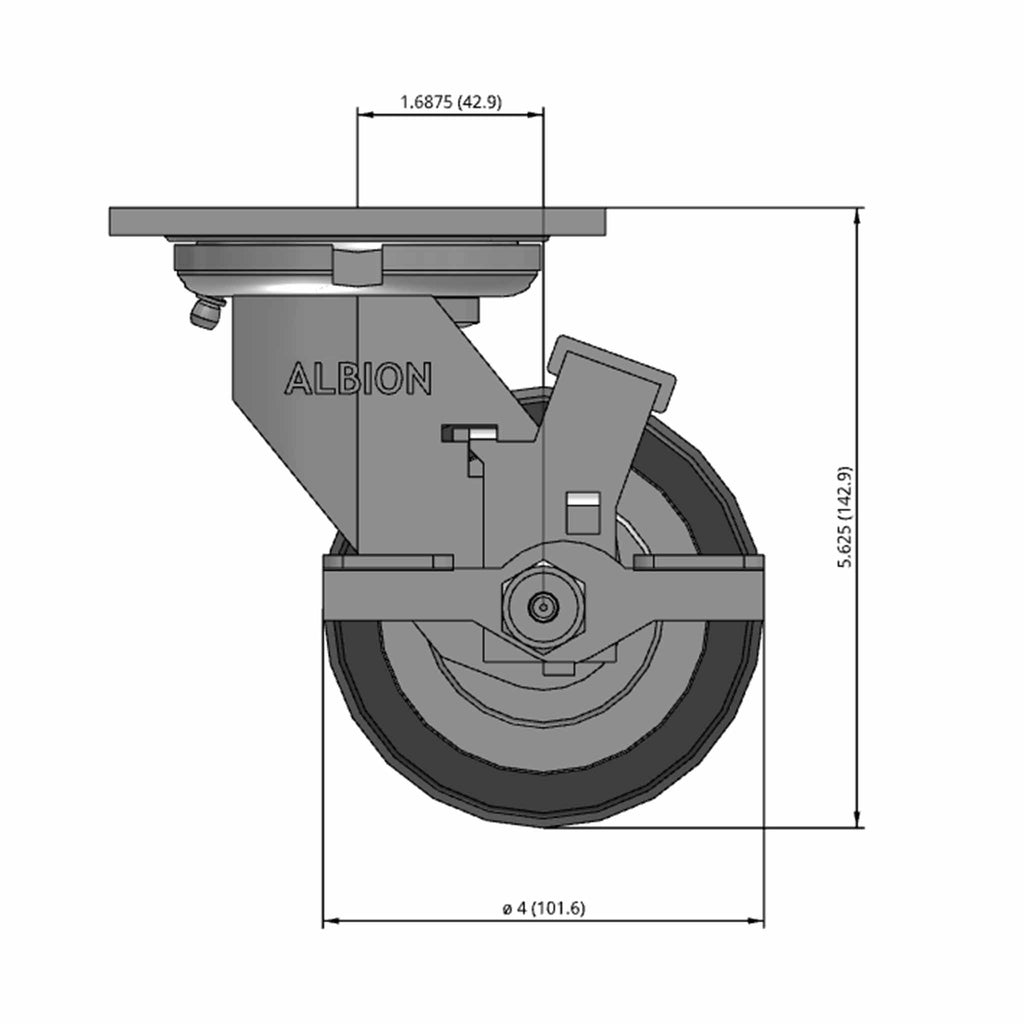

Front dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, XA - Polyurethane (Polypropylene Core) wheel and 600 lb. capacity part

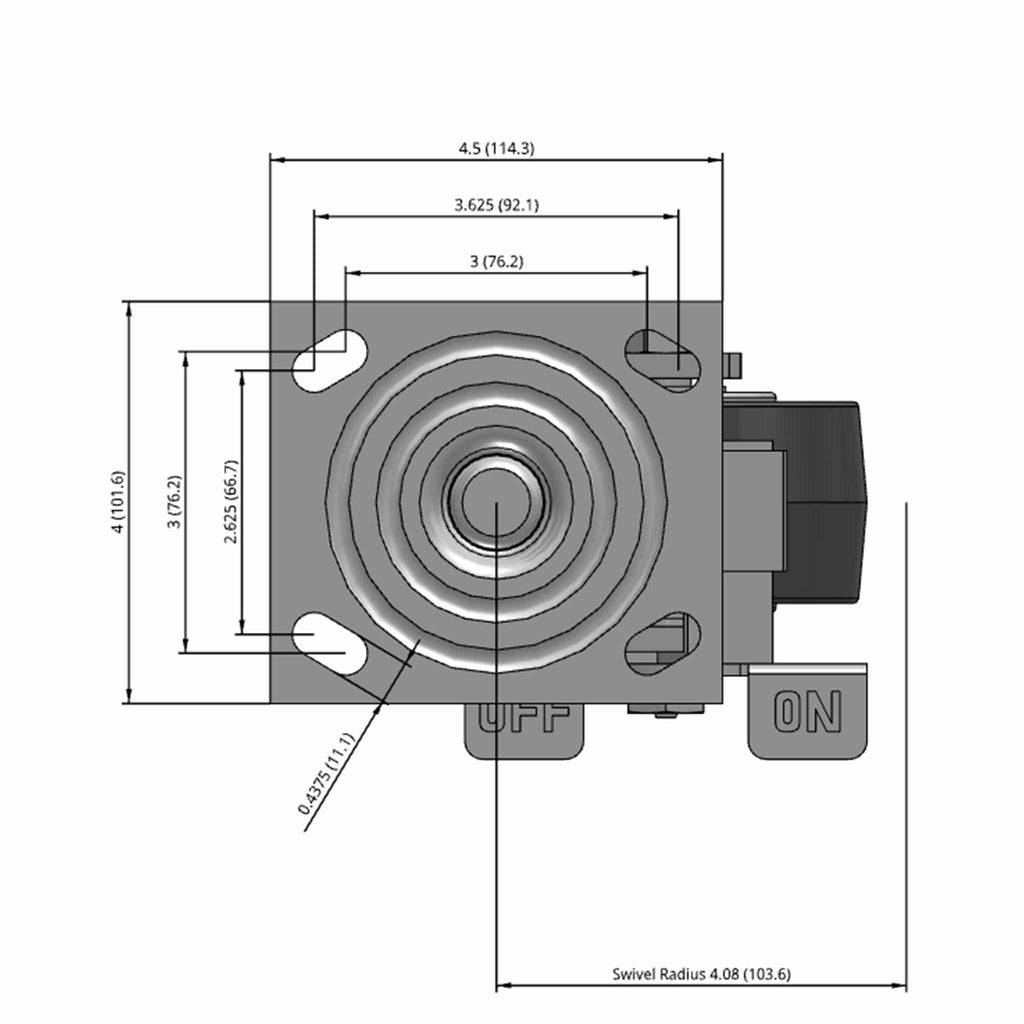

Top dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, XA - Polyurethane (Polypropylene Core) wheel and 600 lb. capacity part

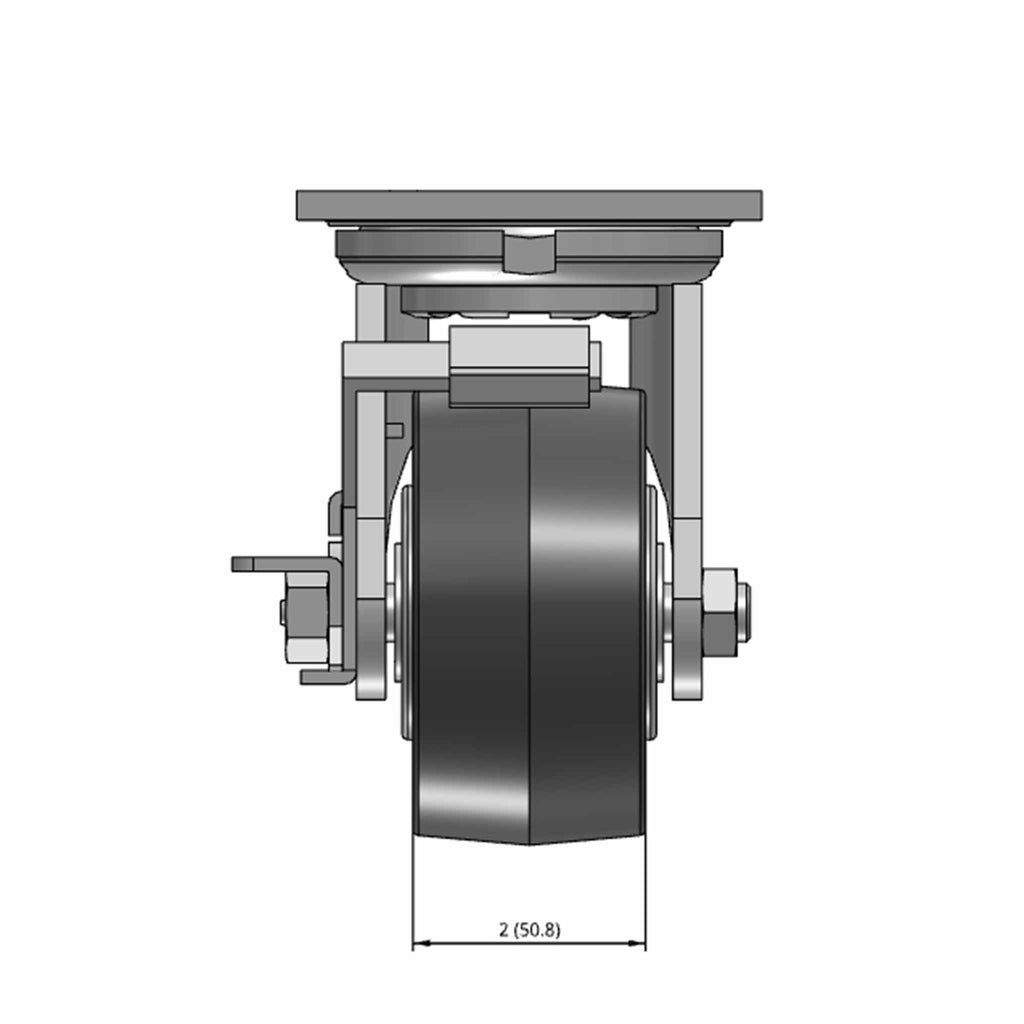

Side dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, XA - Polyurethane (Polypropylene Core) wheel and 600 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4"x2" USA-Rig Side Locking Caster with Floor Protective TPU Wheel

Name: 4"x2" USA-Rig Side Locking Caster with Floor Protective TPU Wheel
Brand: Albion Casters
SKU: 16XA04201SFBA
Price: 33.51 USD
Availability: InStock

Greater Capacity vs. Rubber

Albion Casters SKU: 16XA04201SFBA
Fastening: 4" x 4-1/2" top plate | Load Capacity: 600 lb
Mount Height: 5.63 in | Swivel Radius: 4.08 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$33.51 $39.42

Quantity:

Share this product

This 4" x 2" polyurethane on plastic premium heavy duty swivel caster with tread brake is a great all around wheel - it's floor protective, chemically resistant and high capacity.Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.

Part Number:	44PPR42S-TB
SKU	16XA04201SFBA
Series:	44 Series - Medium/Heavy (to 1250 lb/ea)
Raceway Type:	3/4" Kingpin Hardened Dual Ball Bearing Raceway
Brake:	FBA Face Brake (FBA)
Load Capacity:	600 lb
Mounting Height:	5.63 in
Wheel Diameter:	4 in
Wheel Tread Width:	2 in
Wheel Description:	XA - Polyurethane (Polypropylene Core)
Wheel Color:	Grey Tread on Grey Polypropylene Core
Wheel Bearing:	Roller
Wheel Profile:	Crowned Tread
Wheel Hardness:	63(±5) Shore D
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate
Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	4.08 in
Swivel Lead:	1.69 in
Finish:	Zinc Plated
Axle Size:	1/2" diameter with zerk fitting
Operating Temperature Range:	-40°F to +180°F
Mfg:	16XA04201SFBA
Warranty:	3 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

4"x2" USA-Rig Side Locking Caster with Floor Protective TPU Wheel

Description

Product Details

Part Number:

44PPR42S-TB

SKU

16XA04201SFBA

Series:

44 Series - Medium/Heavy (to 1250 lb/ea)

Raceway Type:

3/4" Kingpin Hardened Dual Ball Bearing Raceway

Brake:

FBA Face Brake (FBA)

Load Capacity:

600 lb

Mounting Height:

5.63 in

Wheel Diameter:

4 in

Wheel Tread Width:

2 in

Wheel Description:

XA - Polyurethane (Polypropylene Core)

Wheel Color:

Grey Tread on Grey Polypropylene Core

Wheel Bearing:

Roller

Wheel Profile:

Crowned Tread

Wheel Hardness:

63(±5) Shore D

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

4.08 in

Swivel Lead:

1.69 in

Finish:

Zinc Plated

Axle Size:

1/2" diameter with zerk fitting

Operating Temperature Range:

-40°F to +180°F

Mfg:

16XA04201SFBA

Warranty:

3 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
