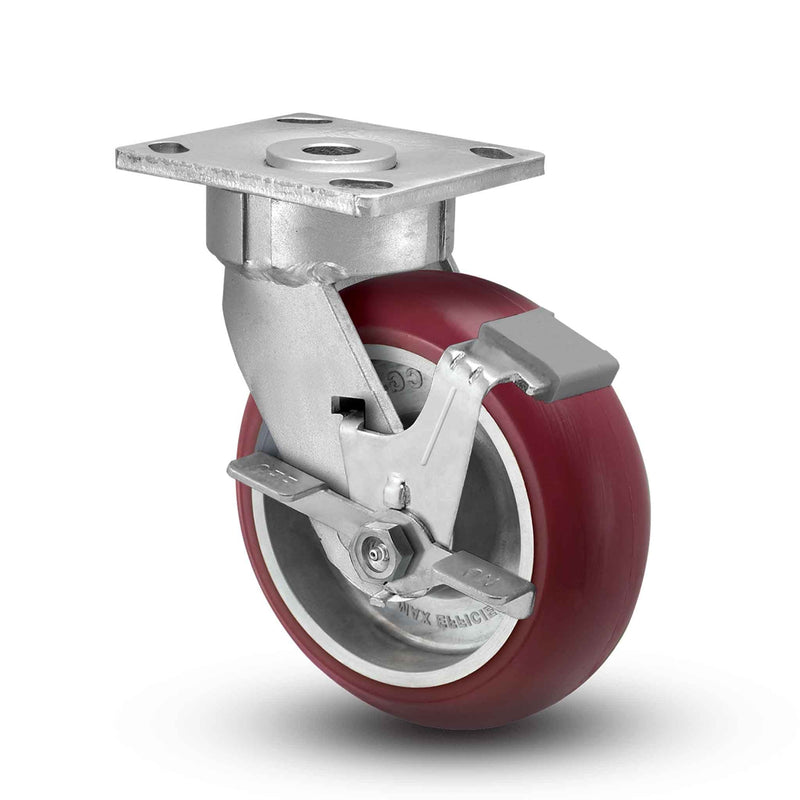

Main view of an Albion Casters 8" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, AX - Round Polyurethane (Aluminum Core) wheel and 1250 lb. capacity part
Roll over to zoom; image may be representative for size Click on image to zoom
Main view of an Albion Casters 8" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, AX - Round Polyurethane (Aluminum Core) wheel and 1250 lb. capacity part
8"x2" Maintenance-Free Side Locking MAX-Efficiency Maroon Wheel Caster
8"x2" Maintenance-Free Side Locking MAX-Efficiency Maroon Wheel Caster
8"x2" Maintenance-Free Side Locking MAX-Efficiency Maroon Wheel Caster

8"x2" Maintenance-Free Side Locking MAX-Efficiency Maroon Wheel Caster

Maintenance-Free
Albion Casters SKU: 18AX08228SFBC
Fastening: 4" x 4-1/2" top plate | Load Capacity: 1250 lb
Mount Height: 9.5 in | Swivel Radius: 5.75 in

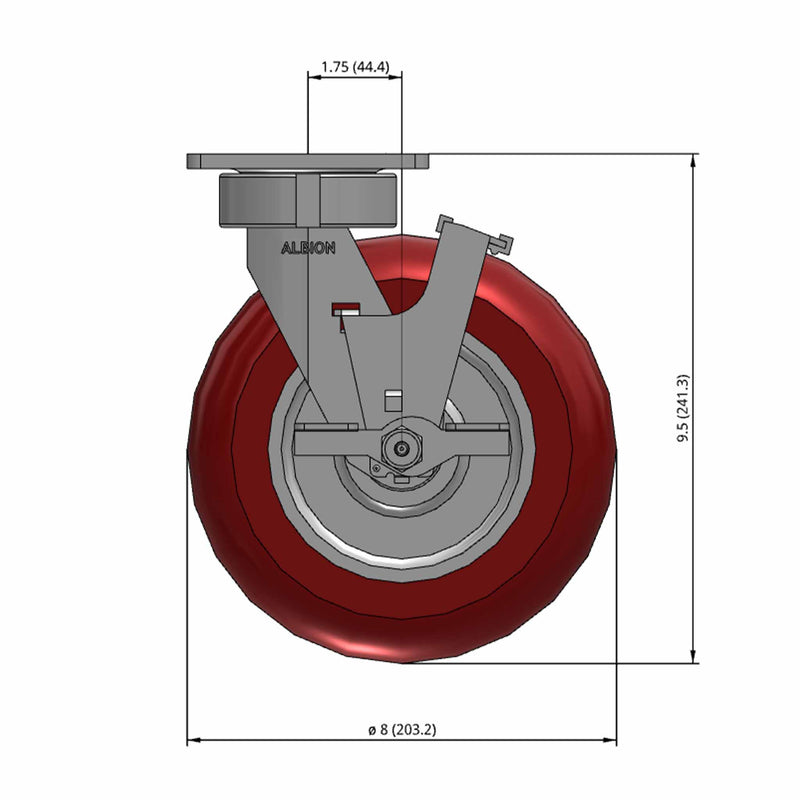

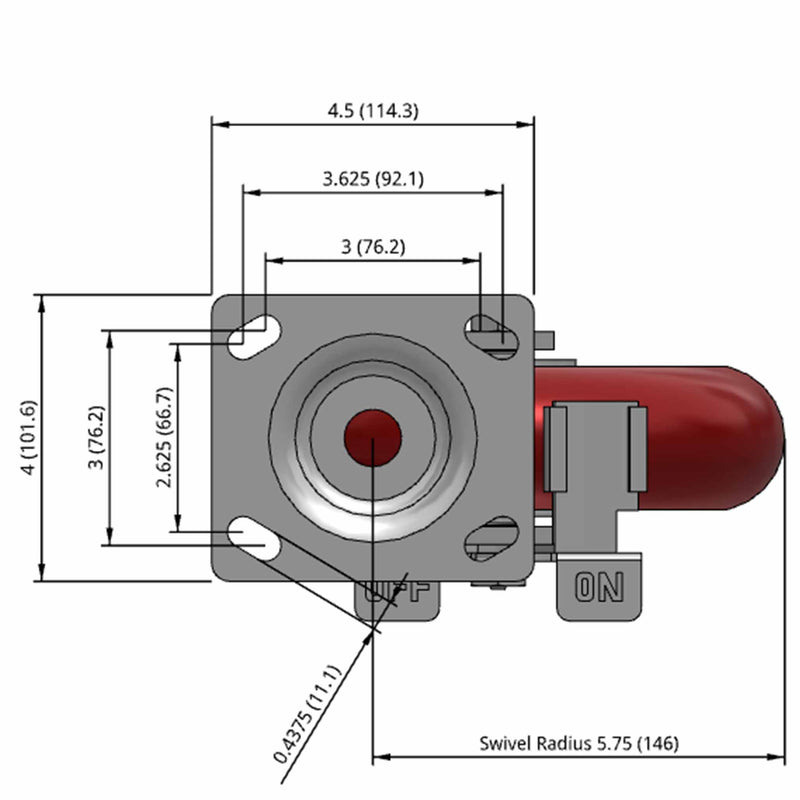

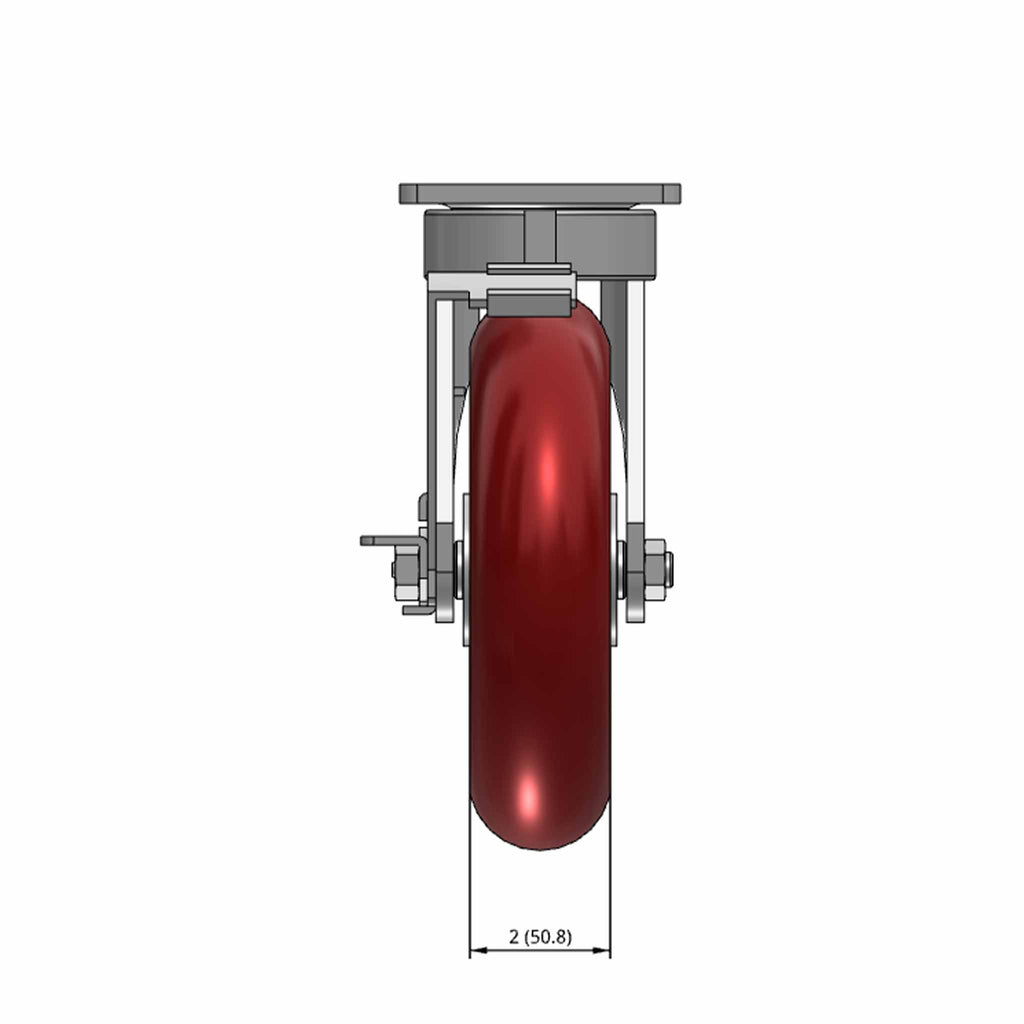

See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:
$191.74

Description

This 8" x 2" maroon polyurethane heavy duty ergonomic swivel caster with tread brake is easy to push and rolls effortlessly, making it excellent for manual push and towing applications. Our 48 Series casters are ergonomically designed for ease of movement and quiet mobility. The sealed precision swivel bearing is maintenance-free and significantly reduces push/pull force, keeping equipment operations safer while improving efficiency. Rig is zinc-plated for an attractive, corrosion-resistant finish.

Product Details

Part Number:
48XMB82S-TB
SKU
18AX08228SFBC
Series:
48 Series - Ergonomic/Precision (to 1250 lb/ea)
Raceway Type:
Maintenance-Free Sealed Precision Ball Bearing Raceway
Brake:
FBC Face Brake (FBC)
Load Capacity:
1250 lb
Mounting Height:
9.5 in
Wheel Diameter:
8 in
Wheel Tread Width:
2 in
Wheel Description:
AX - Round Polyurethane (Aluminum Core)
Wheel Color:
Maroon Tread on Aluminum Core
Wheel Bearing:
Precision Ball
Wheel Profile:
Round Tread
Wheel Hardness:
85 Shore A
Wheel Thread Guards:
None
Fastening:
4" x 4-1/2" top plate
Bolt Hole Pattern:
2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:
3/8"
Swivel Radius:
5.75 in
Swivel Lead:
1.75 in
Finish:
Zinc Plated
Axle Size:
1/2" diameter
Operating Temperature Range:
-40°F to +180°F
Mfg:
18AX08228SFBC
Warranty:
1 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

CAD Model and Datasheet Downloads
