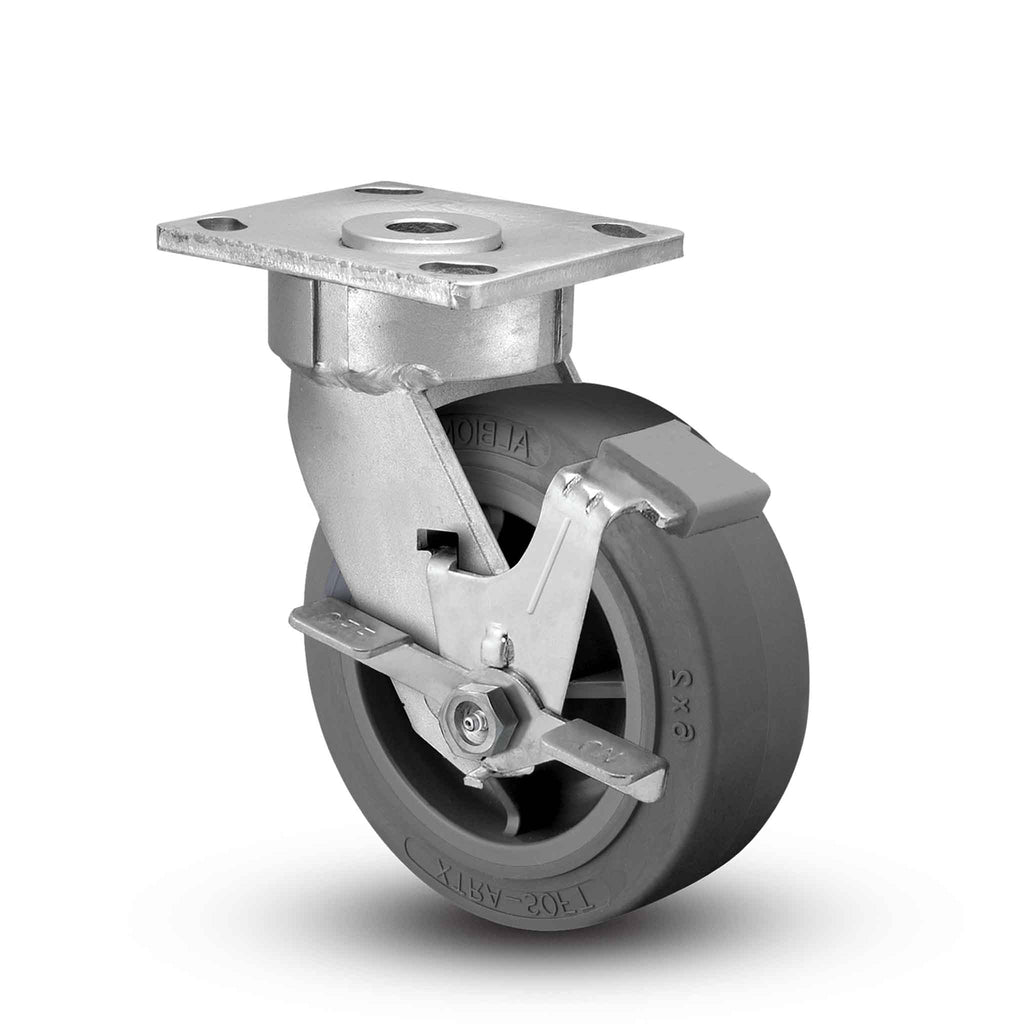

Main view of an Albion Casters 6" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, XS - X-tra Soft Rubber (Flat) wheel and 600 lb. capacity part
Roll over to zoom; image may be representative for size Click on image to zoom
Main view of an Albion Casters 6" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, XS - X-tra Soft Rubber (Flat) wheel and 600 lb. capacity part
6"x2" Maintenance-Free Side Lock Flat Performance-Rubber Wheel Caster
6"x2" Maintenance-Free Side Lock Flat Performance-Rubber Wheel Caster
6"x2" Maintenance-Free Side Lock Flat Performance-Rubber Wheel Caster

6"x2" Maintenance-Free Side Lock Flat Performance-Rubber Wheel Caster

Ergonomics & Shock Mitigation
Albion Casters SKU: 18XS06228SFBC
Fastening: 4" x 4-1/2" top plate | Load Capacity: 600 lb
Mount Height: 7.5 in | Swivel Radius: 4.75 in

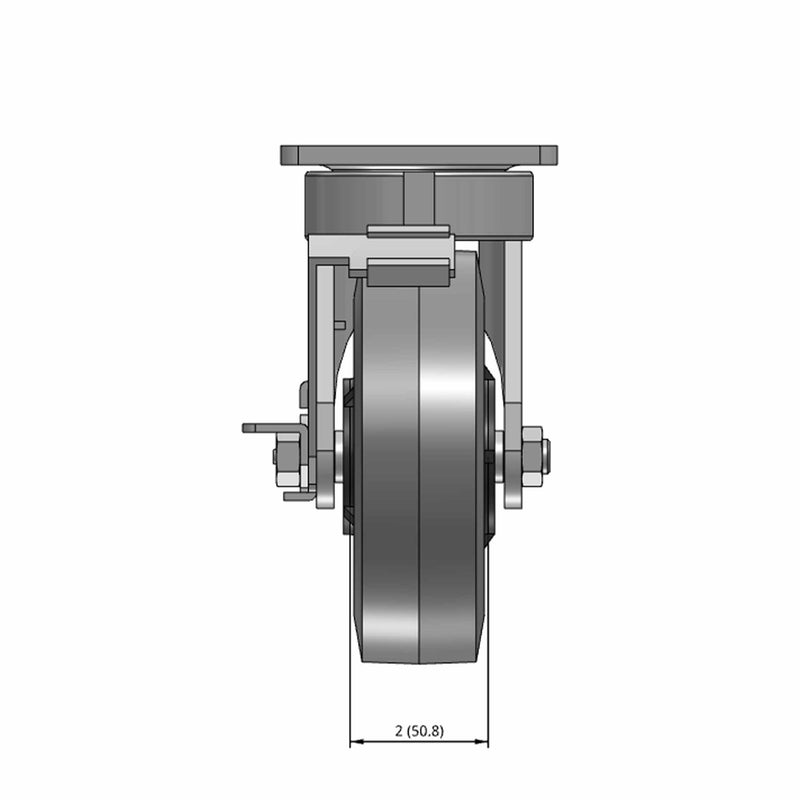

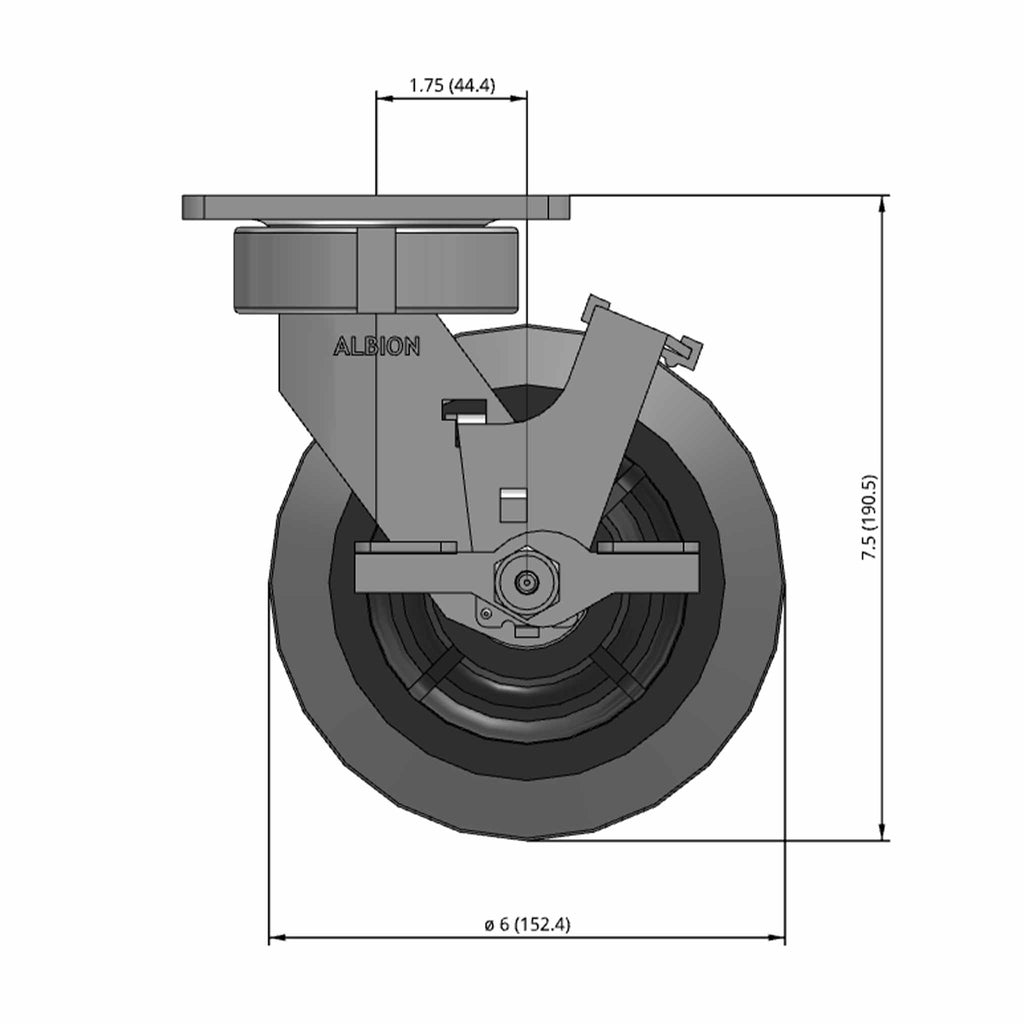

See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:
$137.74
Related Products
Click red checkbox to include when adding main item to cart
6 View
6 View
Bolt-on Swivel Lock for 4 View

Description

This 6" x 2" thermoplastic rubber (TPR) heavy duty ergonomic swivel caster with flat tread and tread brake provide smooth and quiet operation, and are safe for all floor types. Our 48 Series casters are ergonomically designed for ease of movement and quiet mobility. The sealed precision swivel bearing is maintenance-free and significantly reduces push/pull force, keeping equipment operations safer while improving efficiency. Rig is zinc-plated for an attractive, corrosion-resistant finish.

Product Details

Part Number:
48TRB62S-TB
SKU
18XS06228SFBC
Series:
48 Series - Ergonomic/Precision (to 1250 lb/ea)
Raceway Type:
Maintenance-Free Sealed Precision Ball Bearing Raceway
Brake:
FBC Face Brake (FBC)
Load Capacity:
600 lb
Mounting Height:
7.5 in
Wheel Diameter:
6 in
Wheel Tread Width:
2 in
Wheel Description:
XS - X-tra Soft Rubber (Flat)
Wheel Color:
Grey Tread on Grey Core
Wheel Bearing:
Precision Ball
Wheel Profile:
Crowned Tread
Wheel Hardness:
65-75 Shore A
Wheel Thread Guards:
None
Fastening:
4" x 4-1/2" top plate
Bolt Hole Pattern:
2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:
3/8"
Swivel Radius:
4.75 in
Swivel Lead:
1.75 in
Finish:
Zinc Plated
Axle Size:
1/2" diameter
Operating Temperature Range:
-45°F to +180°F
Mfg:
18XS06228SFBC
Warranty:
1 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

CAD Model and Datasheet Downloads
