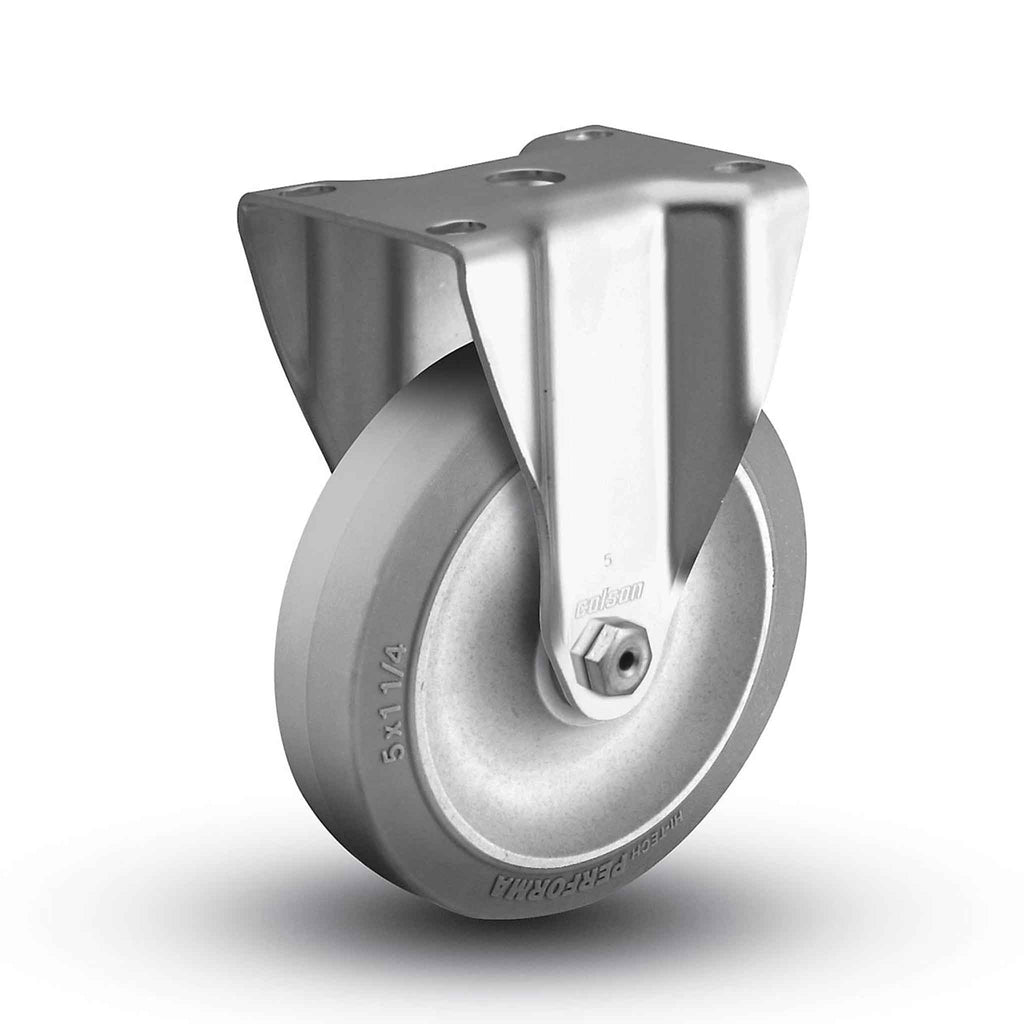

Main view of a Colson Casters 3.5" x 1.25" wide wheel Rigid caster with 2-11/16" x 3-5/8" top plate, without a brake, Performa wheel and 250 lb. capacity part

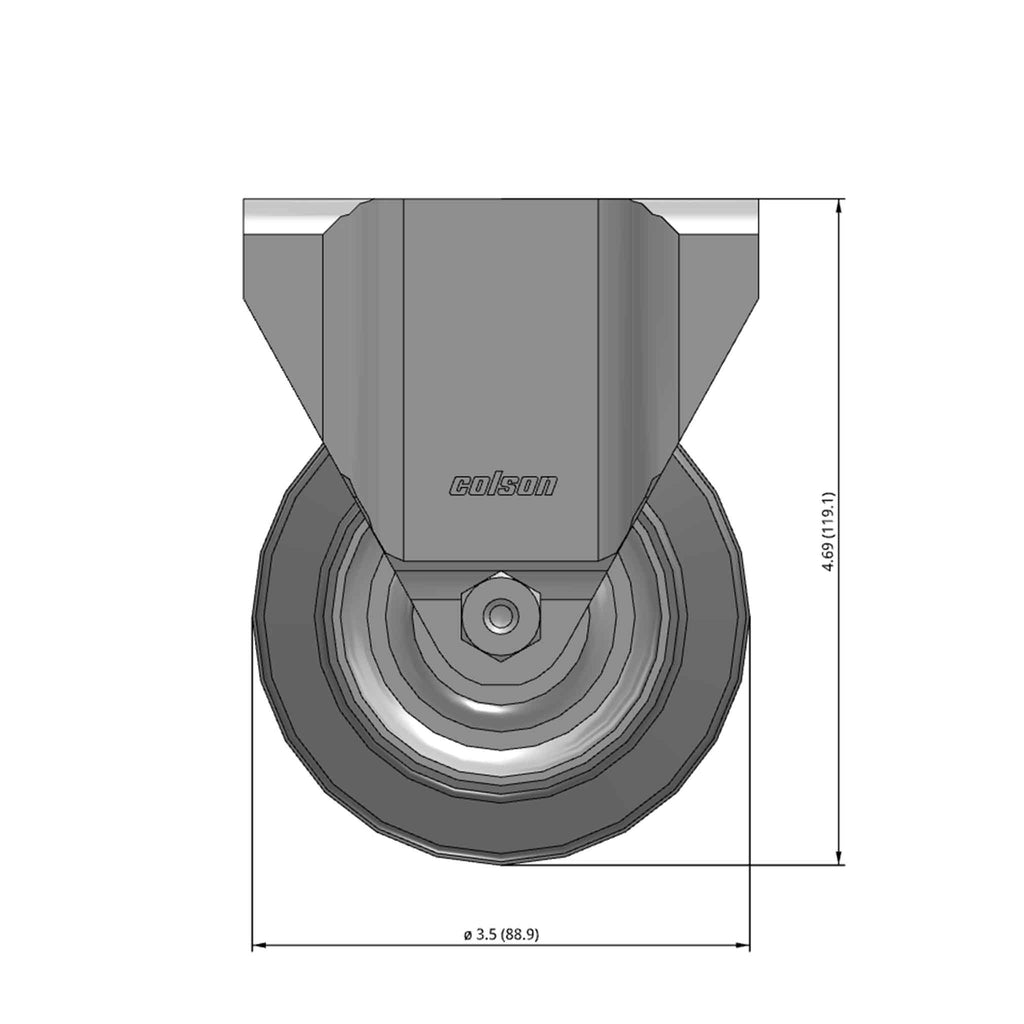

Front dimensioned CAD view of a Colson Casters 3.5" x 1.25" wide wheel Rigid caster with 2-11/16" x 3-5/8" top plate, without a brake, Performa wheel and 250 lb. capacity part

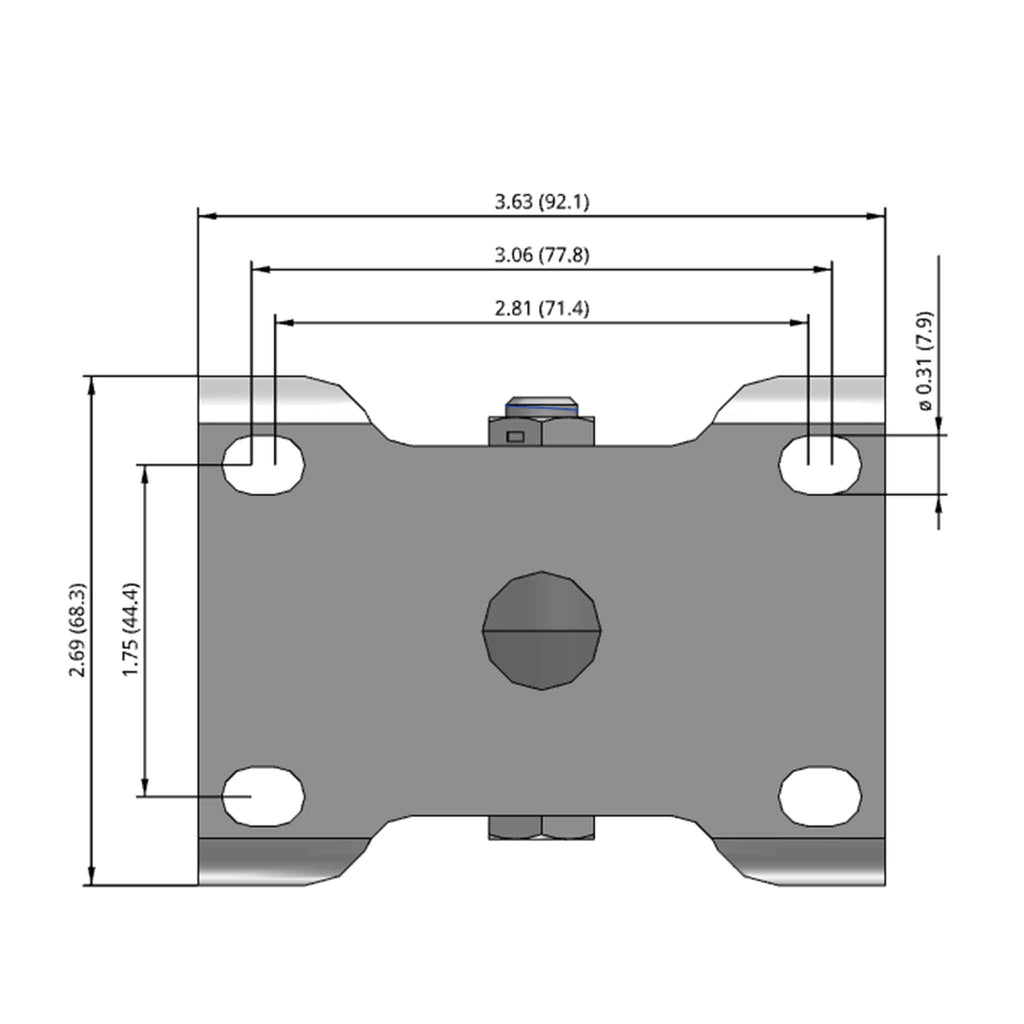

Top dimensioned CAD view of a Colson Casters 3.5" x 1.25" wide wheel Rigid caster with 2-11/16" x 3-5/8" top plate, without a brake, Performa wheel and 250 lb. capacity part

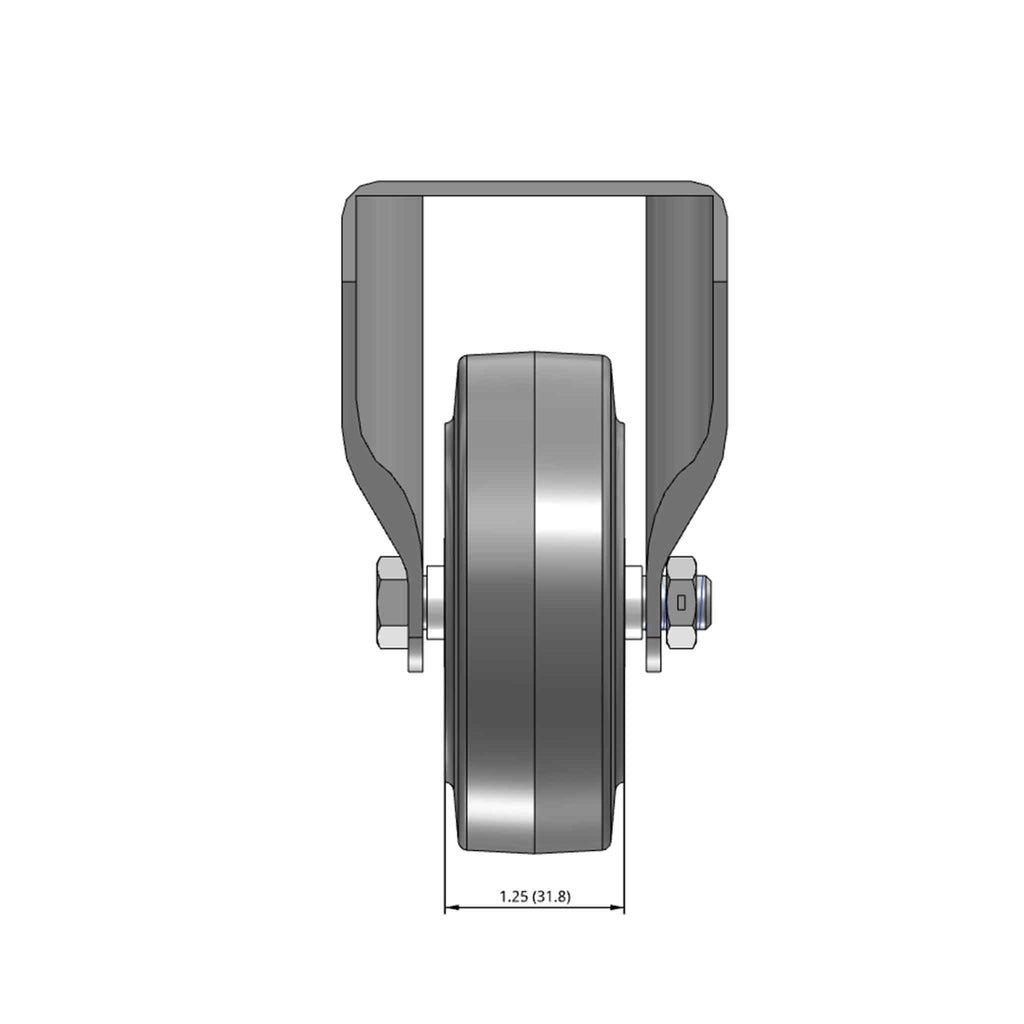

Side dimensioned CAD view of a Colson Casters 3.5" x 1.25" wide wheel Rigid caster with 2-11/16" x 3-5/8" top plate, without a brake, Performa wheel and 250 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

3.5"x1.25" Rigid Plate Caster with Performa Rubber Ball Bearing Wheel

Name: 3.5"x1.25" Rigid Plate Caster with Performa Rubber Ball Bearing Wheel
Brand: Colson Casters
SKU: 2.03208.445
Price: 19.04 USD
Availability: InStock

Industry's Best Soft Wheel

Colson Casters SKU: 2.03208.445
Fastening: 2-11/16" x 3-5/8" top plate | Load Capacity: 250 lb
Mount Height: 4.69 in
See "Product Details" and below CAD model for full specs.

Ships In: 3-4 weeks **FREE Shipping on orders over $250**

Price:

$19.04 $22.40

Quantity:

Share this product

This 3-1/2" x 1-1/4" flat tread thermoplastic rubber premium standard duty institional rigid plate caster is quiet and smooth rolling. Thermoplastic rubber wheels are floor protective and easy to start. The flat tread increases capacity.The 34 Series premium plate casters feature high quality, durable and quiet wheels and optional brakes. Total lock brakes provide positive braking of both the wheel and the swivel section.

Part Number:	34TRB35R
SKU	2.03208.445
Series:	22 Series (to 325 lb/ea)
Raceway Type:	Rigid Construction
Brake:	None
Load Capacity:	250 lb
Mounting Height:	4.69 in
Wheel Diameter:	3.5 in
Wheel Tread Width:	1.25 in
Wheel Description:	Performa
Wheel Color:	Grey on Grey
Wheel Bearing:	Precision Ball
Wheel Profile:	Flat Tread
Wheel Hardness:	65(+/-5) Shore A
Wheel Thread Guards:	None
Fastening:	2-11/16" x 3-5/8" top plate
Bolt Hole Pattern:	1-3/4" x 2-13/16" to 3-1/16"
Plate Bolt Size Recommended:	5/16"
Finish:	Zinc Plated
Axle Size:	3/8" diameter
Operating Temperature Range:	-45F° to +180F°
Mfg:	2.03208.445
Warranty:	3 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

3.5"x1.25" Rigid Plate Caster with Performa Rubber Ball Bearing Wheel

Description

Product Details

Part Number:

34TRB35R

SKU

2.03208.445

Series:

22 Series (to 325 lb/ea)

Raceway Type:

Rigid Construction

Brake:

None

Load Capacity:

250 lb

Mounting Height:

4.69 in

Wheel Diameter:

3.5 in

Wheel Tread Width:

1.25 in

Wheel Description:

Performa

Wheel Color:

Grey on Grey

Wheel Bearing:

Precision Ball

Wheel Profile:

Flat Tread

Wheel Hardness:

65(+/-5) Shore A

Wheel Thread Guards:

None

Fastening:

2-11/16" x 3-5/8" top plate

Bolt Hole Pattern:

1-3/4" x 2-13/16" to 3-1/16"

Plate Bolt Size Recommended:

5/16"

Finish:

Zinc Plated

Axle Size:

3/8" diameter

Operating Temperature Range:

-45F° to +180F°

Mfg:

2.03208.445

Warranty:

3 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
