Main view of a Colson Casters 3.5" x 1.25" wide wheel Swivel caster with 2-1/2" x 3-5/8" top plate, without a brake, Polyolefin wheel and 230 lb. capacity part
Roll over to zoom; image may be representative for size Click on image to zoom
Main view of a Colson Casters 3.5" x 1.25" wide wheel Swivel caster with 2-1/2" x 3-5/8" top plate, without a brake, Polyolefin wheel and 230 lb. capacity part

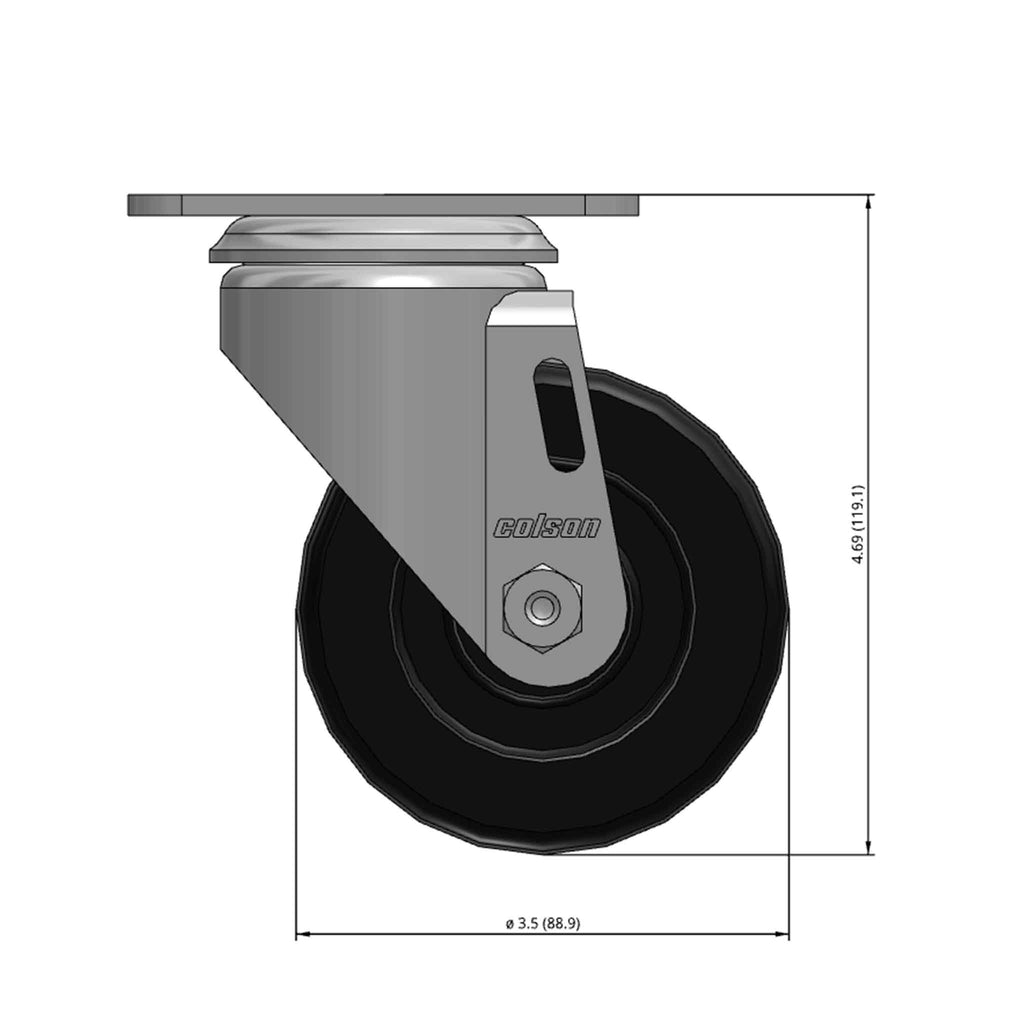

Front dimensioned CAD view of a Colson Casters 3.5" x 1.25" wide wheel Swivel caster with 2-1/2" x 3-5/8" top plate, without a brake, Polyolefin wheel and 230 lb. capacity part

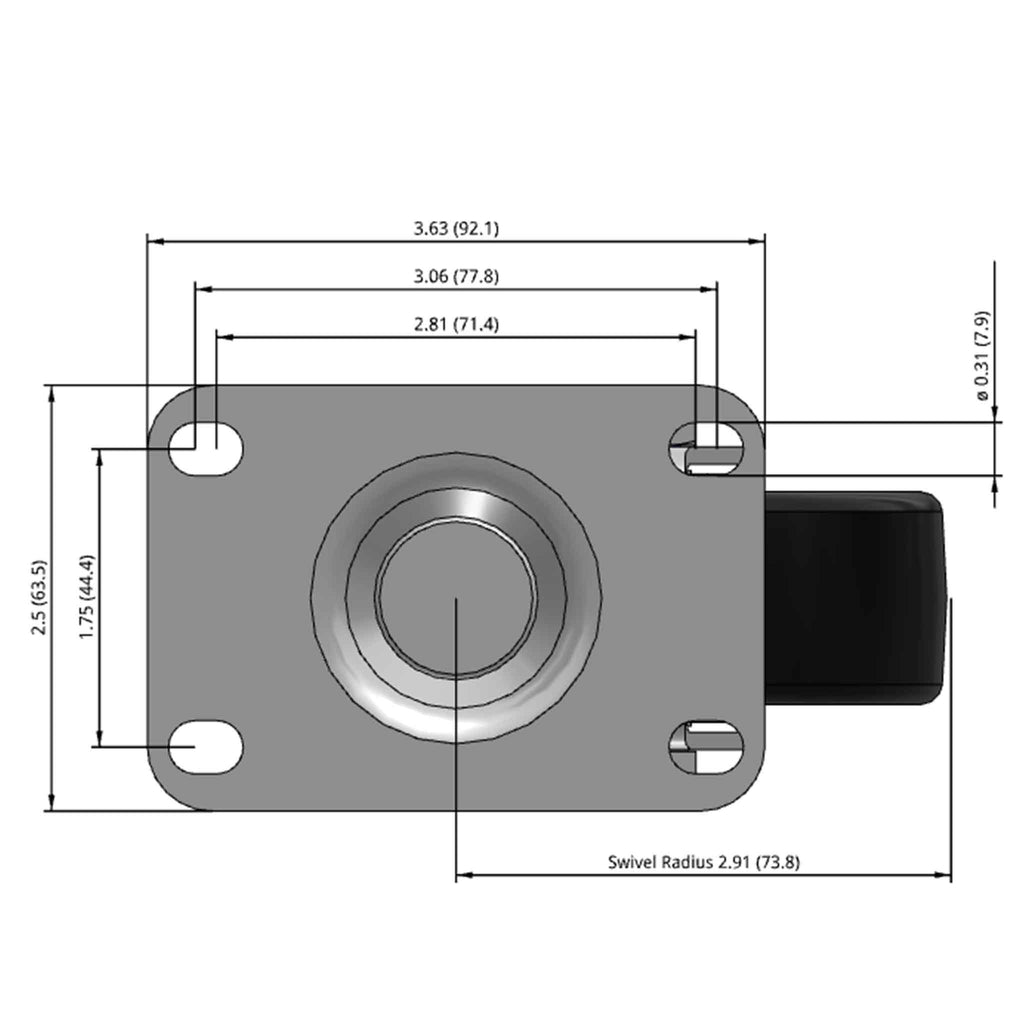

Top dimensioned CAD view of a Colson Casters 3.5" x 1.25" wide wheel Swivel caster with 2-1/2" x 3-5/8" top plate, without a brake, Polyolefin wheel and 230 lb. capacity part

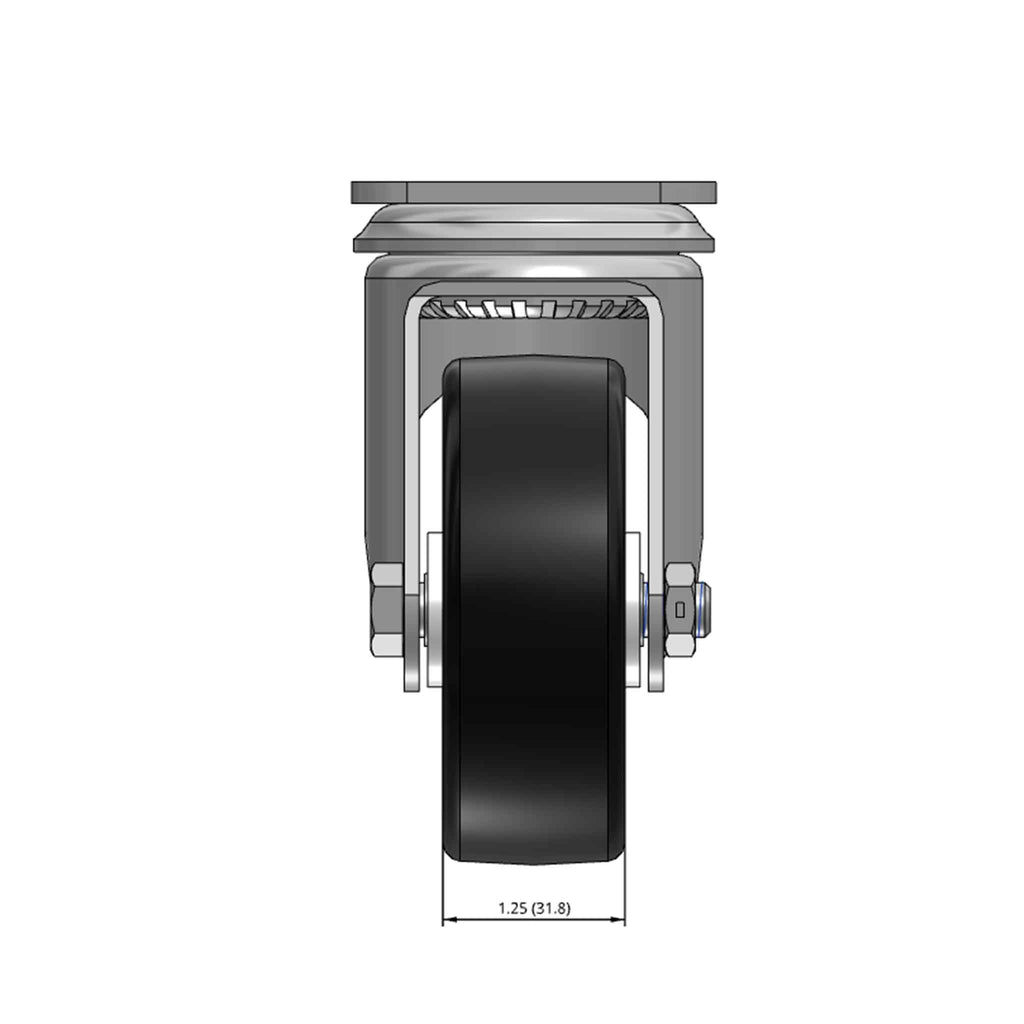

Side dimensioned CAD view of a Colson Casters 3.5" x 1.25" wide wheel Swivel caster with 2-1/2" x 3-5/8" top plate, without a brake, Polyolefin wheel and 230 lb. capacity part

3.5"x1.25" Swivel Plate Caster with Polyolefin Delrin Bearing Wheel

Colson Casters SKU: 2.03256.53
Fastening: 2-1/2" x 3-5/8" top plate | Load Capacity: 230 lb
Mount Height: 4.69 in | Swivel Radius: 2.91 in
See "Product Details" and below CAD model for full specs.

Ships In: 1-3 days **FREE Shipping on orders over $250**
Price:
$16.36 $17.22

Description

This 3-1/2" x 1-1/4" polypropylene premium standard duty swivel plate caster is ideal for wash-down and wet environments. Polypropylene is non-reactive and non-marking.The 34 Series premium plate casters feature high quality, durable and quiet wheels and optional brakes. Total lock brakes provide positive braking of both the wheel and the swivel section.

Product Details

Part Number:
34POD35S
SKU
2.03256.53
Series:
34 Series (to 325 lb/ea)
Raceway Type:
Full Double Ball Hardened Raceways
Brake:
None
Load Capacity:
230 lb
Mounting Height:
4.69 in
Wheel Diameter:
3.5 in
Wheel Tread Width:
1.25 in
Wheel Description:
Polyolefin
Wheel Color:
Black
Wheel Bearing:
Delrin
Wheel Profile:
Round Tread
Wheel Hardness:
70(+/-5) Shore D
Wheel Thread Guards:
None
Fastening:
2-1/2" x 3-5/8" top plate
Bolt Hole Pattern:
1-3/4" x 2-13/16" to 3-1/16"
Plate Bolt Size Recommended:
5/16"
Swivel Radius:
2.91 in
Finish:
Zinc Plated
Axle Size:
3/8" diameter
Operating Temperature Range:
-45F° to +180F°
Mfg:
2.03256.53
Warranty:
3 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
