Main view of a Faultless Casters 4" x 1.3125" wide wheel Swivel caster with 4" x 5-1/8" top plate, without a brake, Polypropylene wheel and 350 lb. capacity part
Roll over to zoom; image may be representative for size Click on image to zoom

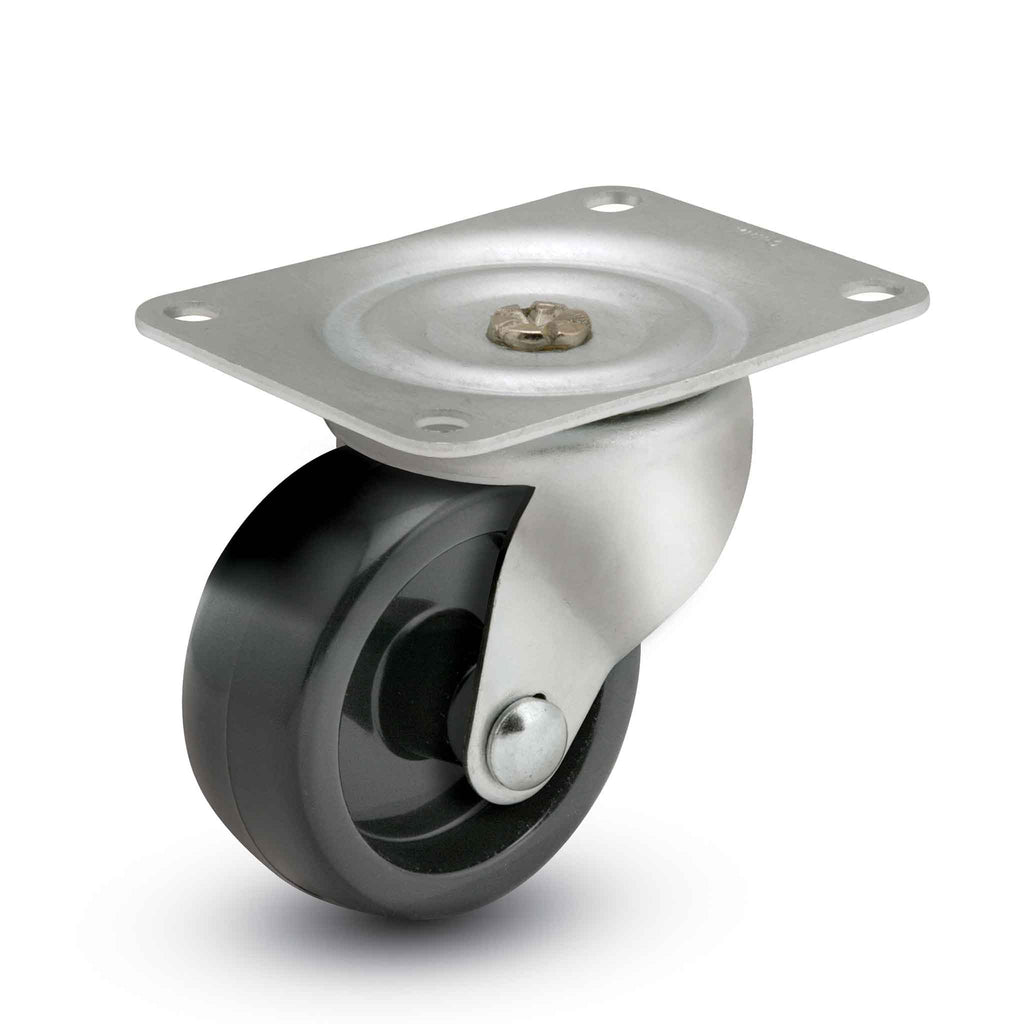

Main view of a Faultless Casters 4" x 1.3125" wide wheel Swivel caster with 4" x 5-1/8" top plate, without a brake, Polypropylene wheel and 350 lb. capacity part

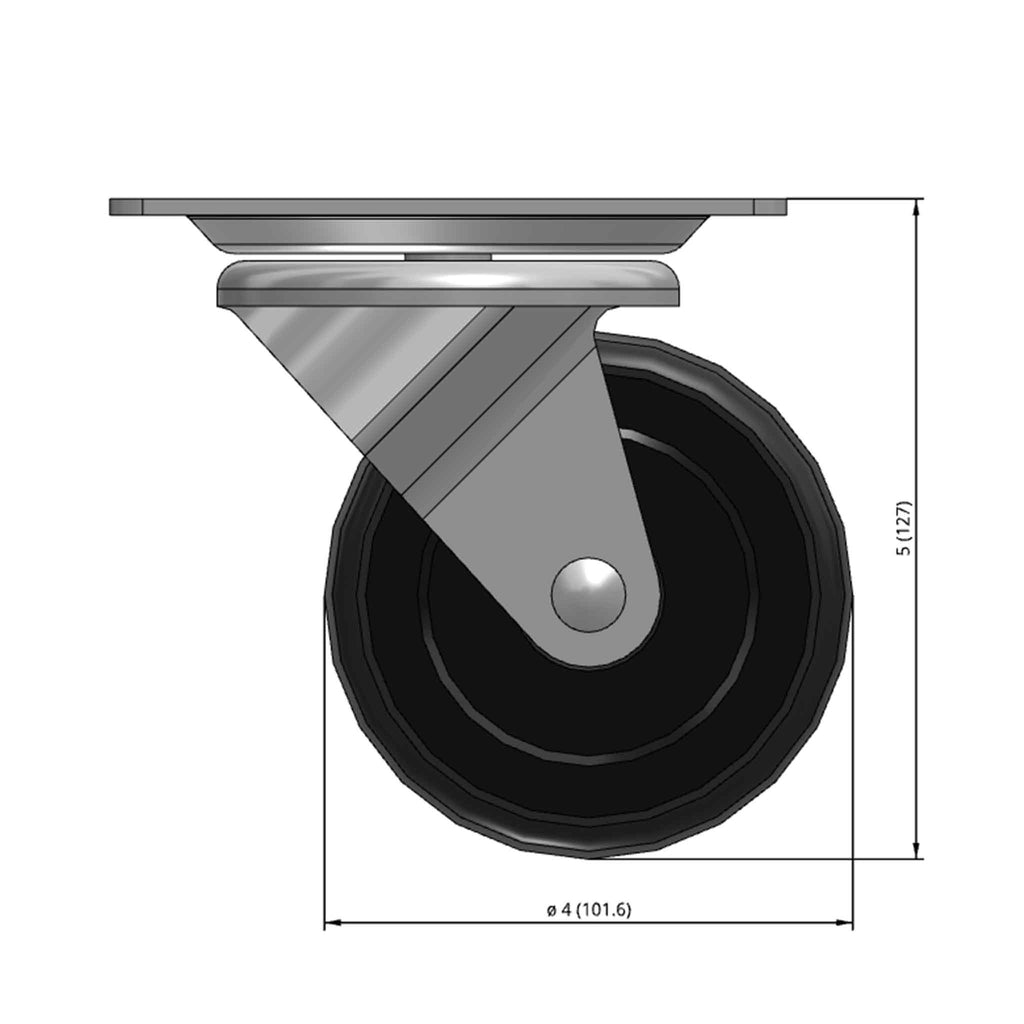

Front dimensioned CAD view of a Faultless Casters 4" x 1.3125" wide wheel Swivel caster with 4" x 5-1/8" top plate, without a brake, Polypropylene wheel and 350 lb. capacity part

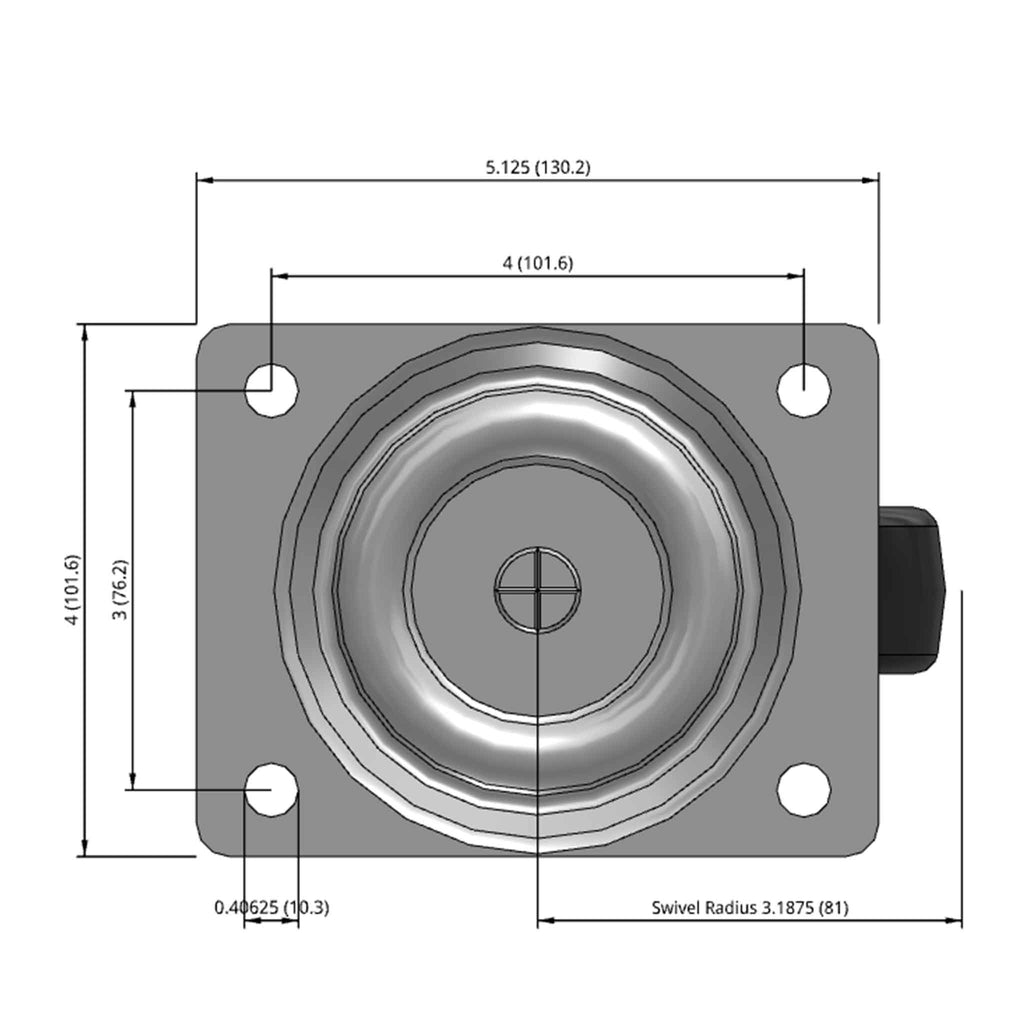

Top dimensioned CAD view of a Faultless Casters 4" x 1.3125" wide wheel Swivel caster with 4" x 5-1/8" top plate, without a brake, Polypropylene wheel and 350 lb. capacity part

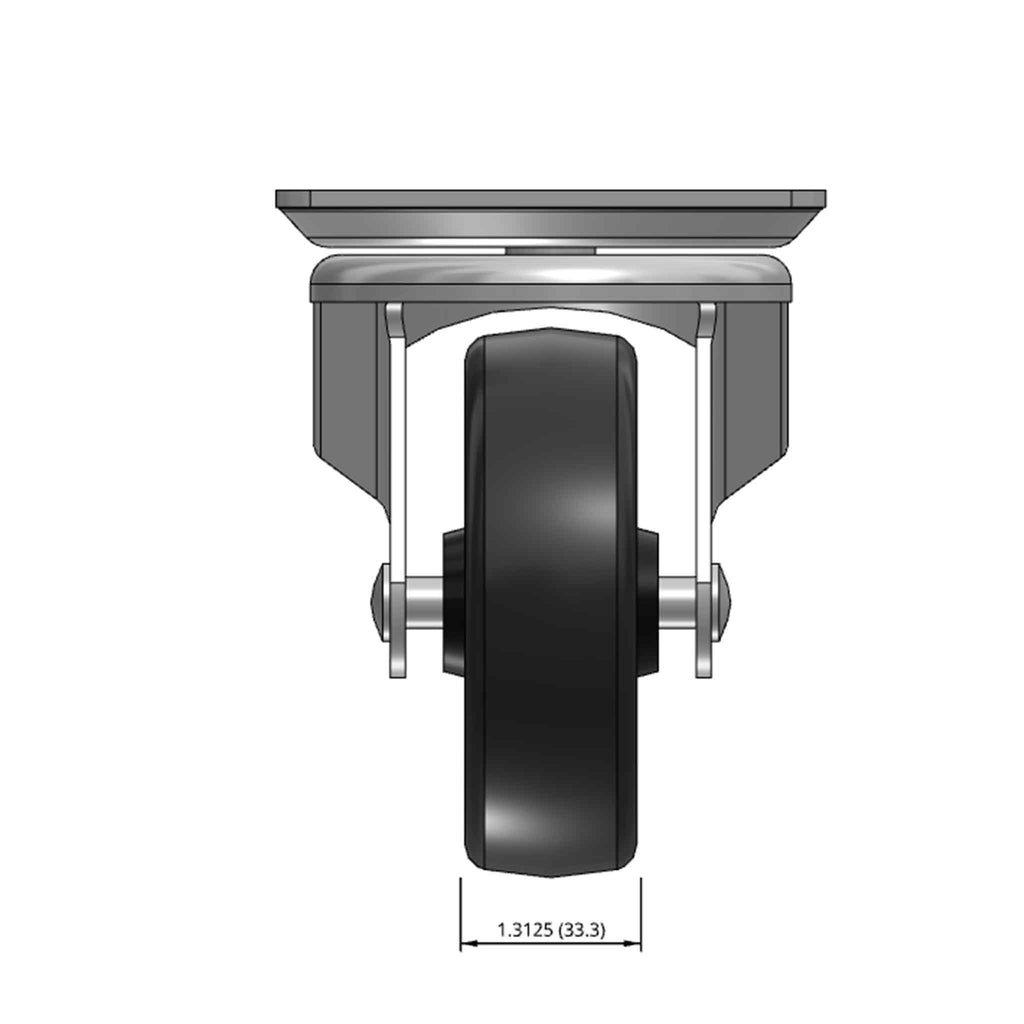

Side dimensioned CAD view of a Faultless Casters 4" x 1.3125" wide wheel Swivel caster with 4" x 5-1/8" top plate, without a brake, Polypropylene wheel and 350 lb. capacity part

4" Polypropylene Wheel General-Duty Swivel Plate Caster

Faultless Casters SKU: 160-4R
Fastening: 4" x 5-1/8" top plate | Load Capacity: 350 lb
Mount Height: 5 in | Swivel Radius: 3.19 in
See "Product Details" and below CAD model for full specs.

Ships In: 1-3 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:
$23.25

Description

This 4" x 1-3/8" polypropylene general duty swivel dolly caster is ideal for wash-down and wet environments. Polypropylene is non-reactive and non-marking.Our 30 Series general duty dolly casters are great for shop equipment and dollies. They feature high capacities, a wide variety of tread materials and low overall heights relative to their size.

Product Details

Part Number:
30POP40S
SKU
160-4R
Series:
30 Series
Raceway Type:
Single Row of Hardened, Polished Ball Bearings In Large-Diamater, Lubricated Raceway
Brake:
None
Load Capacity:
350 lb
Mounting Height:
5 in
Wheel Diameter:
4 in
Wheel Tread Width:
1.31 in
Wheel Description:
Polypropylene
Wheel Color:
Black
Wheel Bearing:
Plain
Wheel Profile:
Flat Tread
Wheel Hardness:
60(+/-5) Shore D
Wheel Thread Guards:
None
Fastening:
4" x 5-1/8" top plate
Bolt Hole Pattern:
3" x 4"
Plate Bolt Size Recommended:
3/8"
Swivel Radius:
3.19 in
Finish:
Zinc Plated
Axle Size:
7/16" diameter
Operating Temperature Range:
-20F° to +180F°
Mfg:
160-4R
Warranty:
1 year
Conformity:
Tested to ANSI ICWM:2012 standards for capacity and durability
