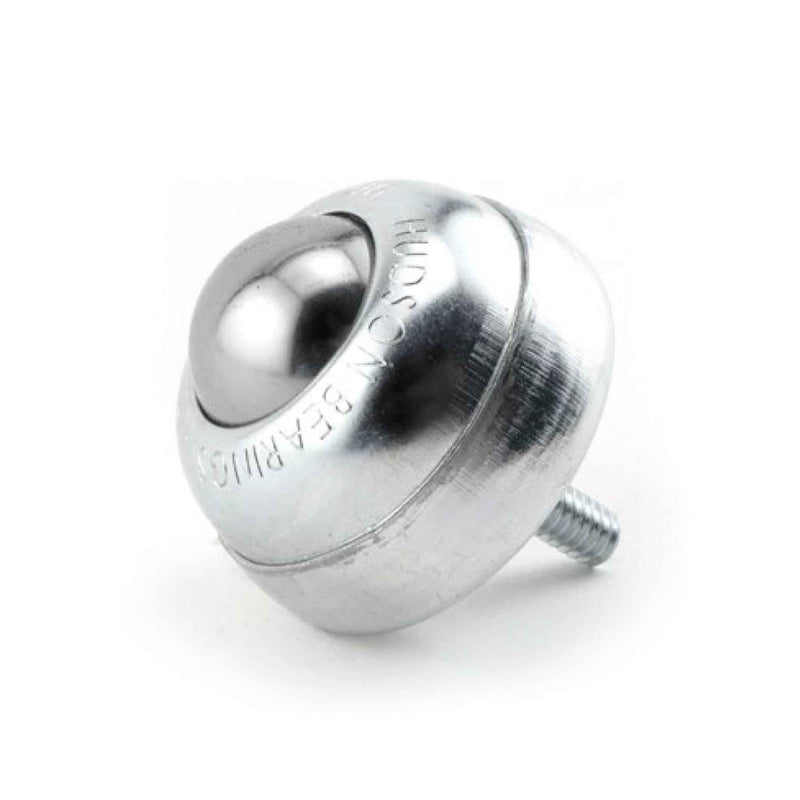

Main view of a Hudson Bearings Ball Transfers 1" steel ball with 1/4"-20 x 11/16" stud and 75 lb. capacity it is Made-in-USA under part
Roll over to zoom; image may be representative for size Click on image to zoom
Main view of a Hudson Bearings Ball Transfers 1" steel ball with 1/4"-20 x 11/16" stud and 75 lb. capacity it is Made-in-USA under part

1" Steel Ball Transfer with 1/4"-20 x 11/16" Threaded Stud

Hudson Bearings SKU: SBT-1CS-1/4-20

Ships In: 1-2 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:
$4.49

Description

Made in the USA, Hudson Bearings' SBT-1CS 1/4-20 features a 1" main ball that rotates on eighty (80) 1/8" support balls. The ball support cup is machine formed, hardened and plated, integral protective cover assures low torque and long life.

Product Details

Part Number: SBT-1CS-1/4-20 BALL TRANSFER
Series: Ball Transfers
Fastening Type: Threaded Stem
Height: 1-3/8" above table
Load Capacity: 75 lb
Ball Size: 1" steel ball
Fastening: 1/4"-20 x 11/16" stud
Construction: 1/4-20 UNC Threaded Stem Mounting, All Steel Construction
Material: Carbon Steel (available in stainless steel as well; contact us for details)
Finish: Zinc Plated
Mfg: SBT-1CS-1/4-20
