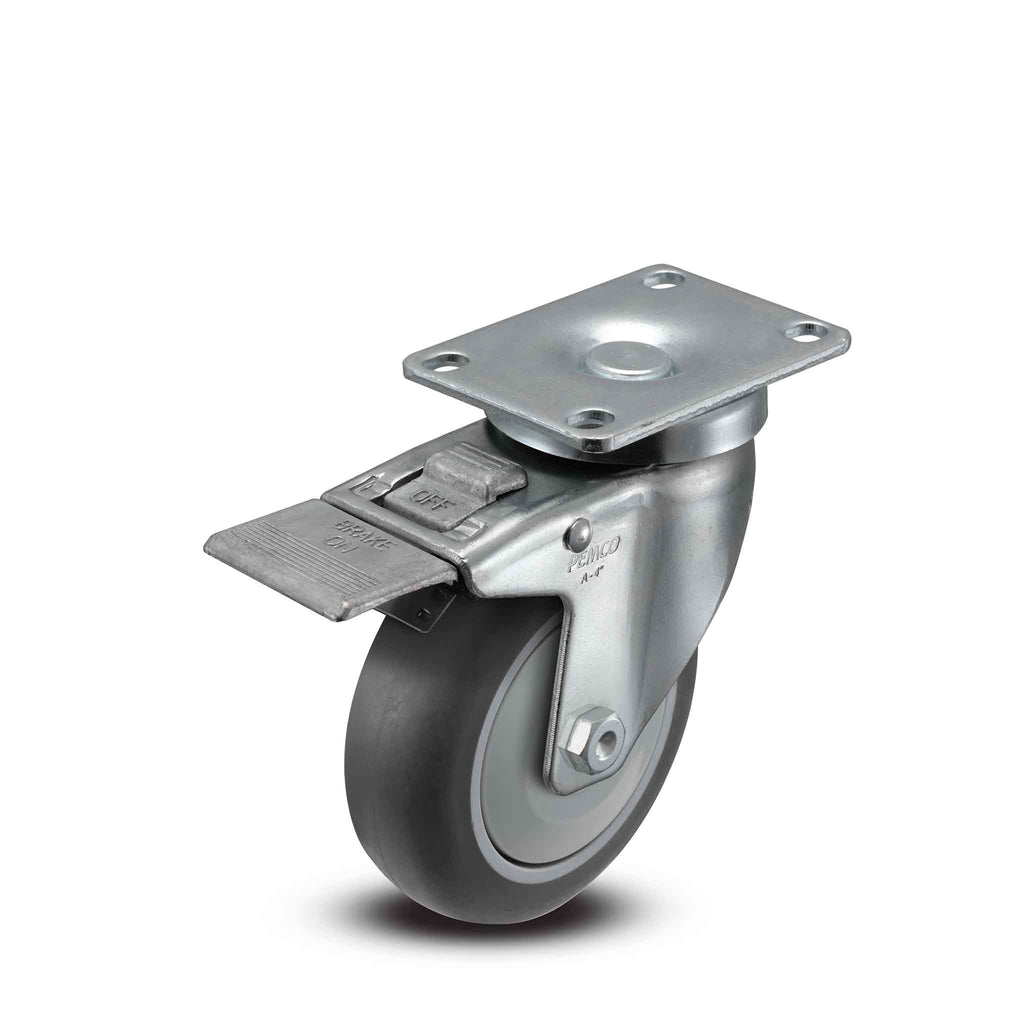

Main view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 2-5/8" x 3-3/4" top plate, with a top total locking brake, Thermoplastic Rubber wheel and 275 lb. capacity part

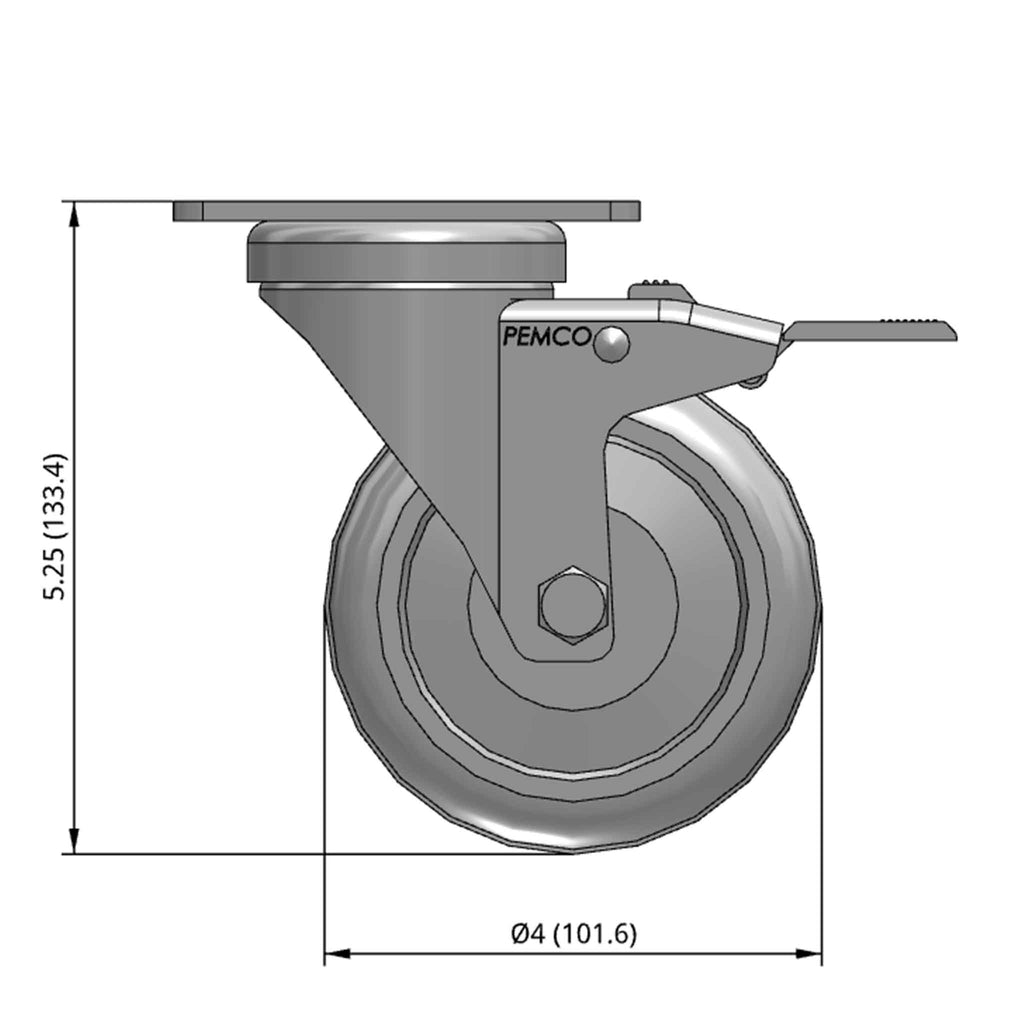

Front dimensioned CAD view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 2-5/8" x 3-3/4" top plate, with a top total locking brake, Thermoplastic Rubber wheel and 275 lb. capacity part

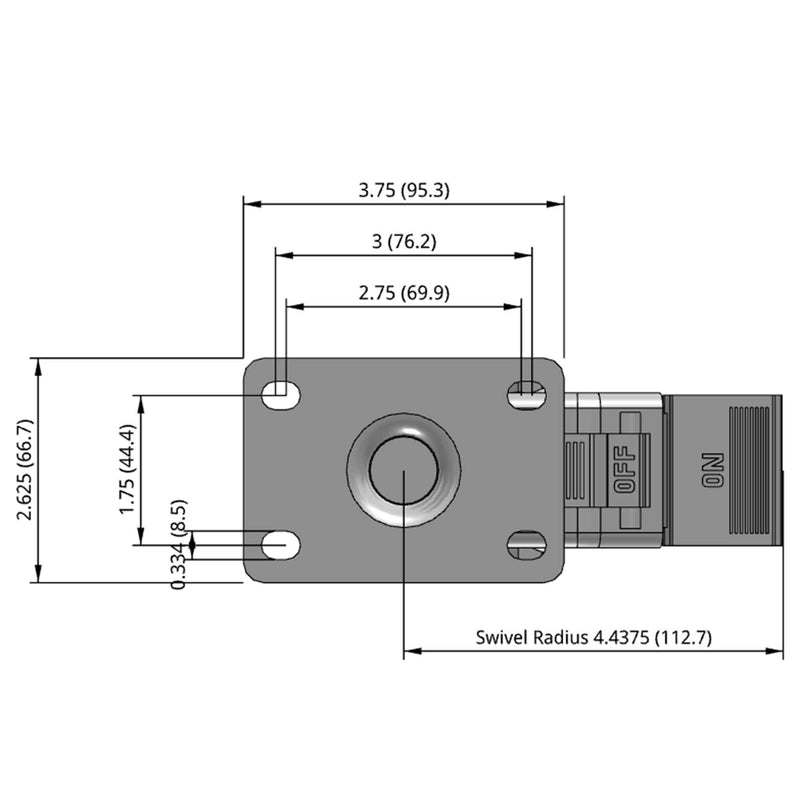

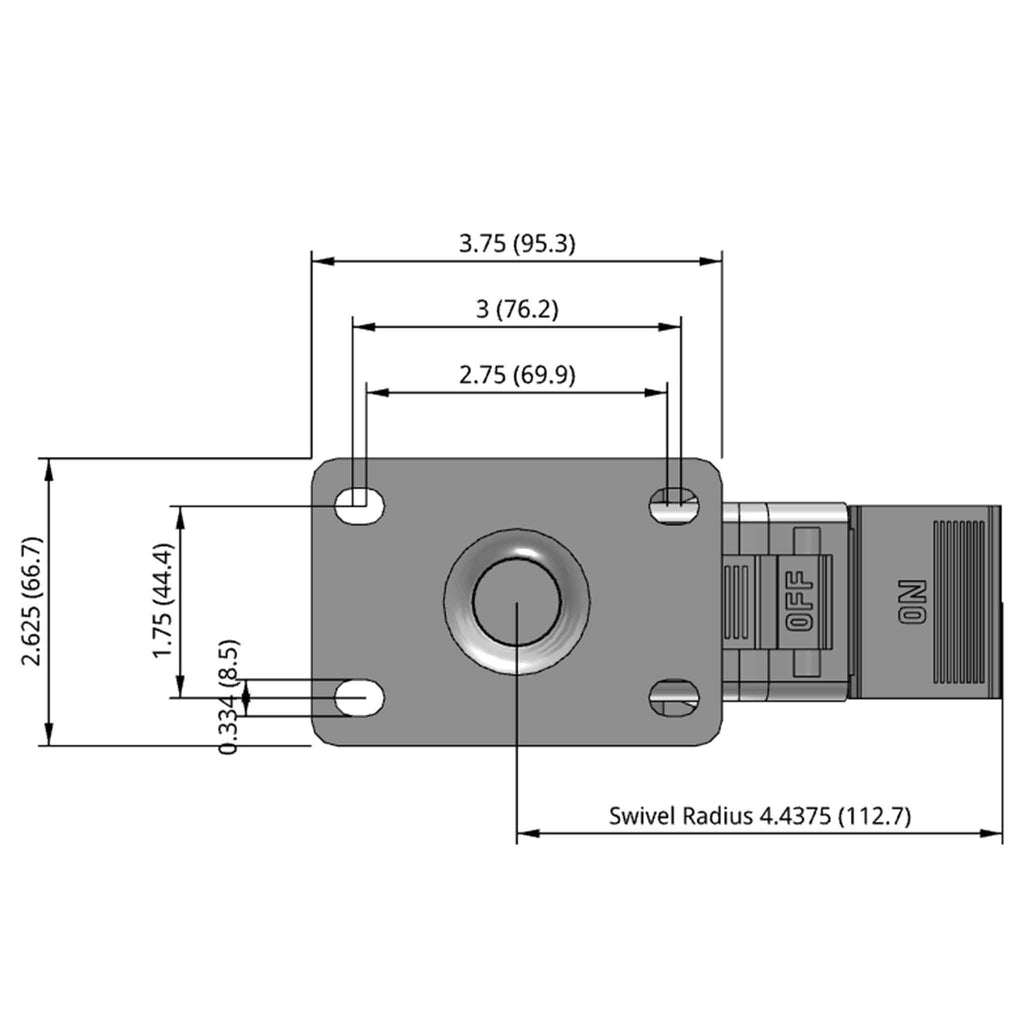

Top dimensioned CAD view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 2-5/8" x 3-3/4" top plate, with a top total locking brake, Thermoplastic Rubber wheel and 275 lb. capacity part

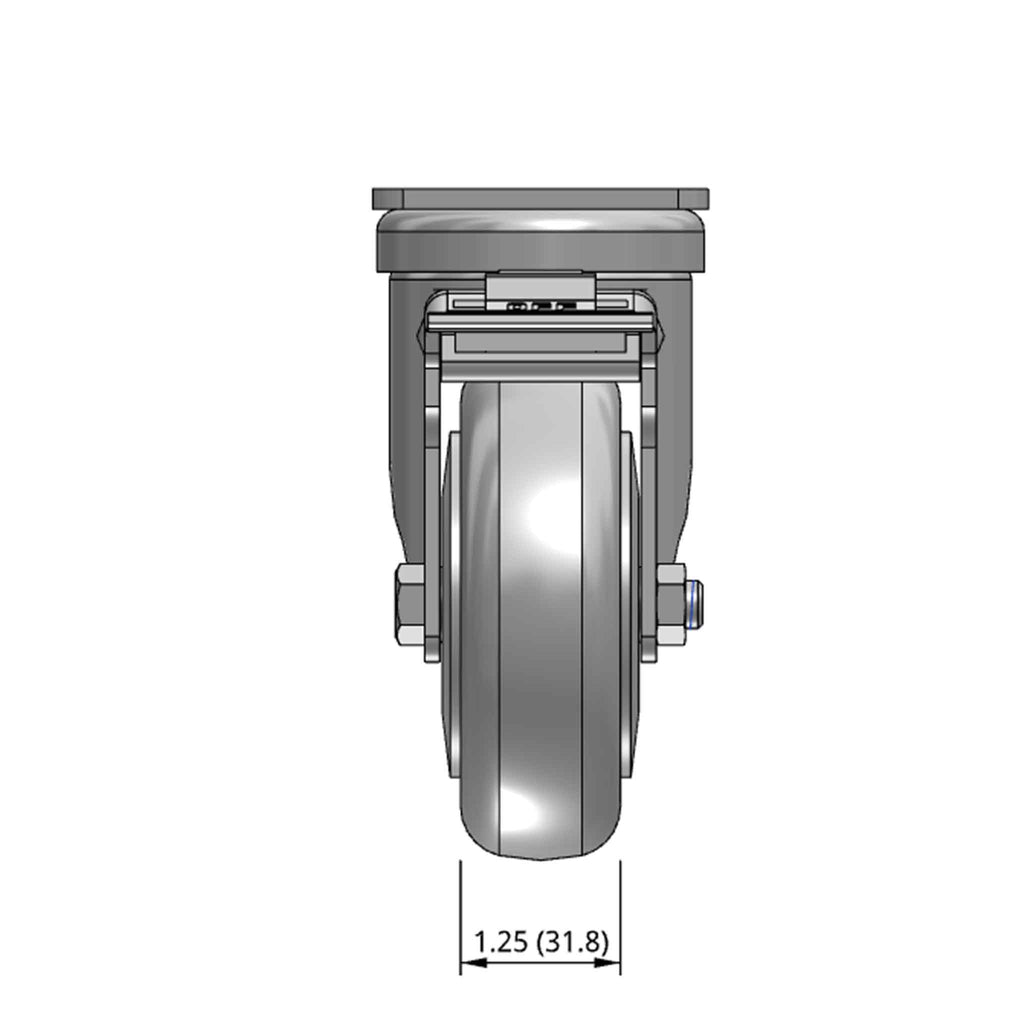

Side dimensioned CAD view of a Pemco Casters 4" x 1.25" wide wheel Swivel caster with 2-5/8" x 3-3/4" top plate, with a top total locking brake, Thermoplastic Rubber wheel and 275 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4"x1.25" TPR BB Wheel Standard Plate Total Lock Caster

Name: 4"x1.25" TPR BB Wheel Standard Plate Total Lock Caster
Brand: Pemco Casters
SKU: AS40P1TPRTL
Price: 17.41 USD
Availability: InStock

Total Lock Brake

Pemco Casters SKU: AS40P1TPRTL
Fastening: 2-5/8" x 3-3/4" top plate | Load Capacity: 275 lb
Mount Height: 5.25 in | Swivel Radius: 4.44 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$17.41 $19.35

Quantity:

Share this product

This 4" x 1-1/4" flat tread thermoplastic rubber standard duty swivel plate caster with total lock brake is quiet, smooth rolling, easy to start and floor protective.Our 35 Series is a competitive, core lineup of 1-1/4" wide casters designed for a wide range of applications with load capacities up to 350 pounds. These casters are available in a variety of size, wheel, fastening and brake options, and features a one-year standard warranty.

Part Number:	35TRB40S-TLB
SKU	AS40P1TPRTL
Series:	25/35 Series - 1-1/4" Wide (to 350 lb/ea)
Raceway Type:	Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake:	Total Lock
Load Capacity:	275 lb
Mounting Height:	5.25 in
Wheel Diameter:	4 in
Wheel Tread Width:	1.25 in
Wheel Description:	Thermoplastic Rubber
Wheel Color:	Grey on Grey
Wheel Bearing:	Precision Ball
Wheel Profile:	Slight Crown
Wheel Hardness:	75(+/-5) Shore A
Wheel Thread Guards:	Full Thread Guards
Fastening:	2-5/8" x 3-3/4" top plate
Bolt Hole Pattern:	1-3/4" x 2-3/4" to 3"
Plate Bolt Size Recommended:	5/16"
Swivel Radius:	4.44 in
Finish:	Zinc Plated
Axle Size:	3/8" diameter
Operating Temperature Range:	-40F° to +180F°
Mfg:	AS40P1TPRTL
Warranty:	1 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

4"x1.25" TPR BB Wheel Standard Plate Total Lock Caster

Description

Product Details

Part Number:

35TRB40S-TLB

SKU

AS40P1TPRTL

Series:

25/35 Series - 1-1/4" Wide (to 350 lb/ea)

Raceway Type:

Dual Ball Swivel Raceways For Smooth Swivel and Strength

Brake:

Total Lock

Load Capacity:

275 lb

Mounting Height:

5.25 in

Wheel Diameter:

4 in

Wheel Tread Width:

1.25 in

Wheel Description:

Thermoplastic Rubber

Wheel Color:

Grey on Grey

Wheel Bearing:

Precision Ball

Wheel Profile:

Slight Crown

Wheel Hardness:

75(+/-5) Shore A

Wheel Thread Guards:

Full Thread Guards

Fastening:

2-5/8" x 3-3/4" top plate

Bolt Hole Pattern:

1-3/4" x 2-3/4" to 3"

Plate Bolt Size Recommended:

5/16"

Swivel Radius:

4.44 in

Finish:

Zinc Plated

Axle Size:

3/8" diameter

Operating Temperature Range:

-40F° to +180F°

Mfg:

AS40P1TPRTL

Warranty:

1 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
