5"x1.25" Polyolefin Wheel 1/2"x1.5" Threaded Stem Swivel Caster

Pemco Casters SKU: AS50T2POD
Fastening: 1/2"-13 x 1-1/2" stud | Load Capacity: 325 lb
Mount Height: 6.13 in | Swivel Radius: 3.88 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:
Sale price$11.45 Regular price$12.72

Description

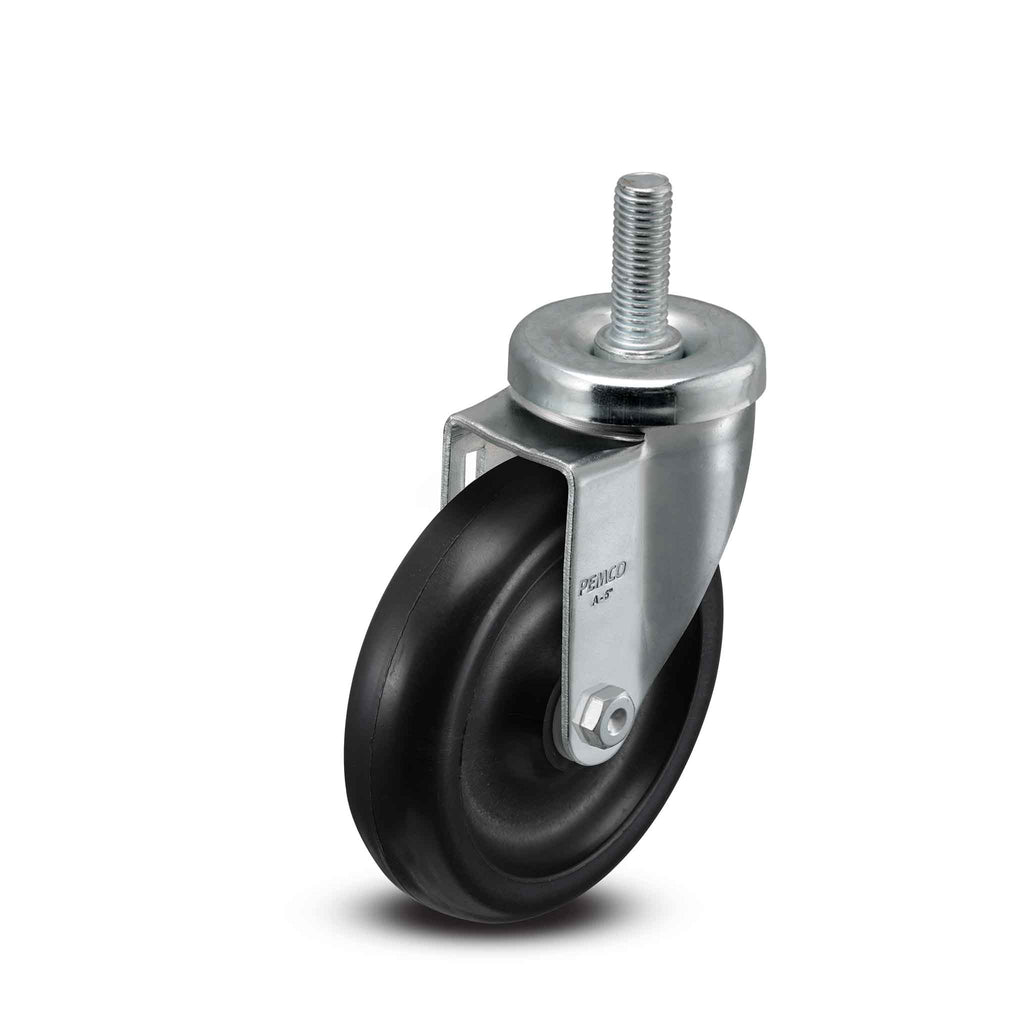

This 5" x 1-1/4" polypropylene standard duty threaded stem caster is ideal for wash-down and wet environments. Polypropylene is non-reactive and non-marking. The caster is retained with a 1/2-13UNC x 1-1/2" threaded stem. Our 25 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements up to 350 pounds. These casters are available in a variety of size, wheel, fastening and brake options, and features a one-year standard warranty.

Product Details

Part Number:
25POD50S-T824
SKU
AS50T2POD
Series:
25/35 Series - 1-1/4" Wide (to 350 lb/ea)
Raceway Type:
Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake:
None
Load Capacity:
325 lb
Mounting Height:
6.13 in
Wheel Diameter:
5 in

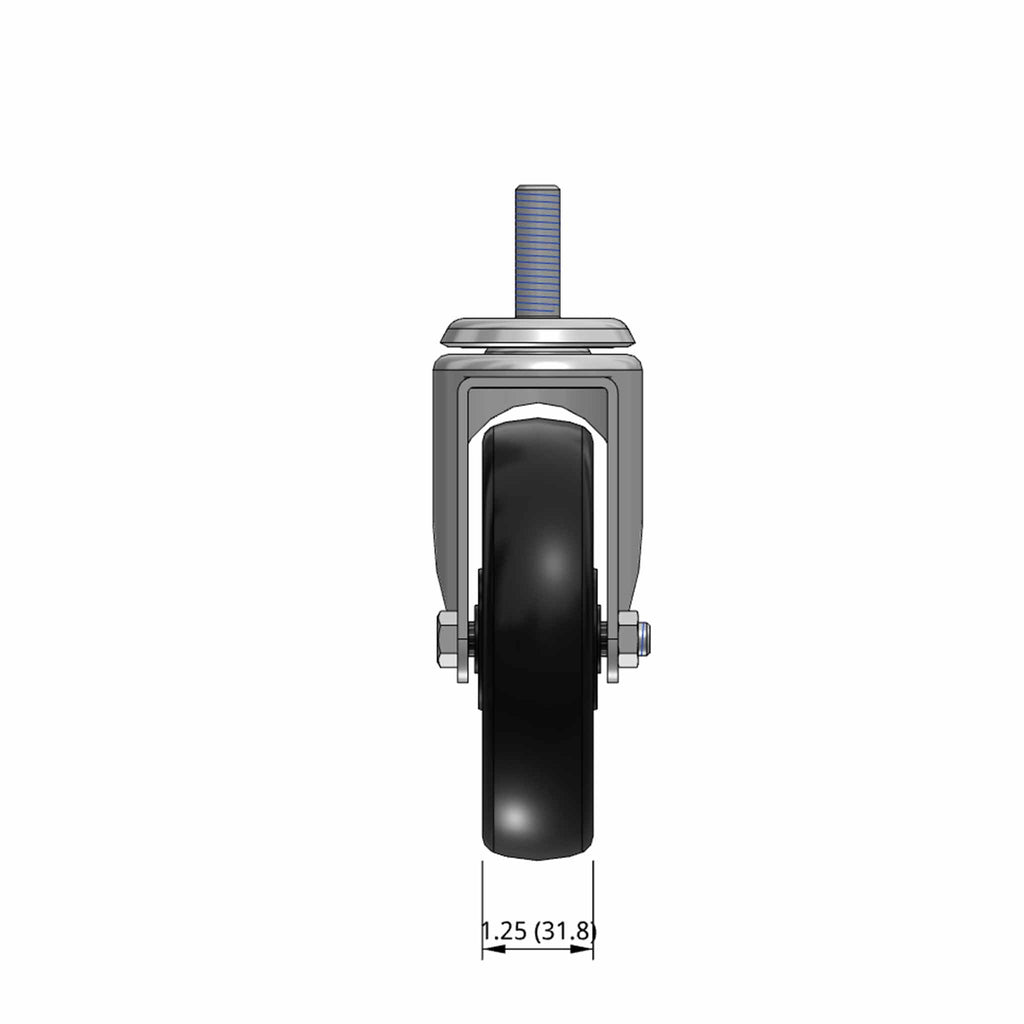

Wheel Tread Width:
1.25 in
Wheel Description:
Polypropylene
Wheel Color:
Black
Wheel Bearing:
Delrin
Wheel Profile:
Slight Crown
Wheel Hardness:
70(+/-5) Shore D
Wheel Thread Guards:
None
Fastening:
1/2"-13 x 1-1/2" stud

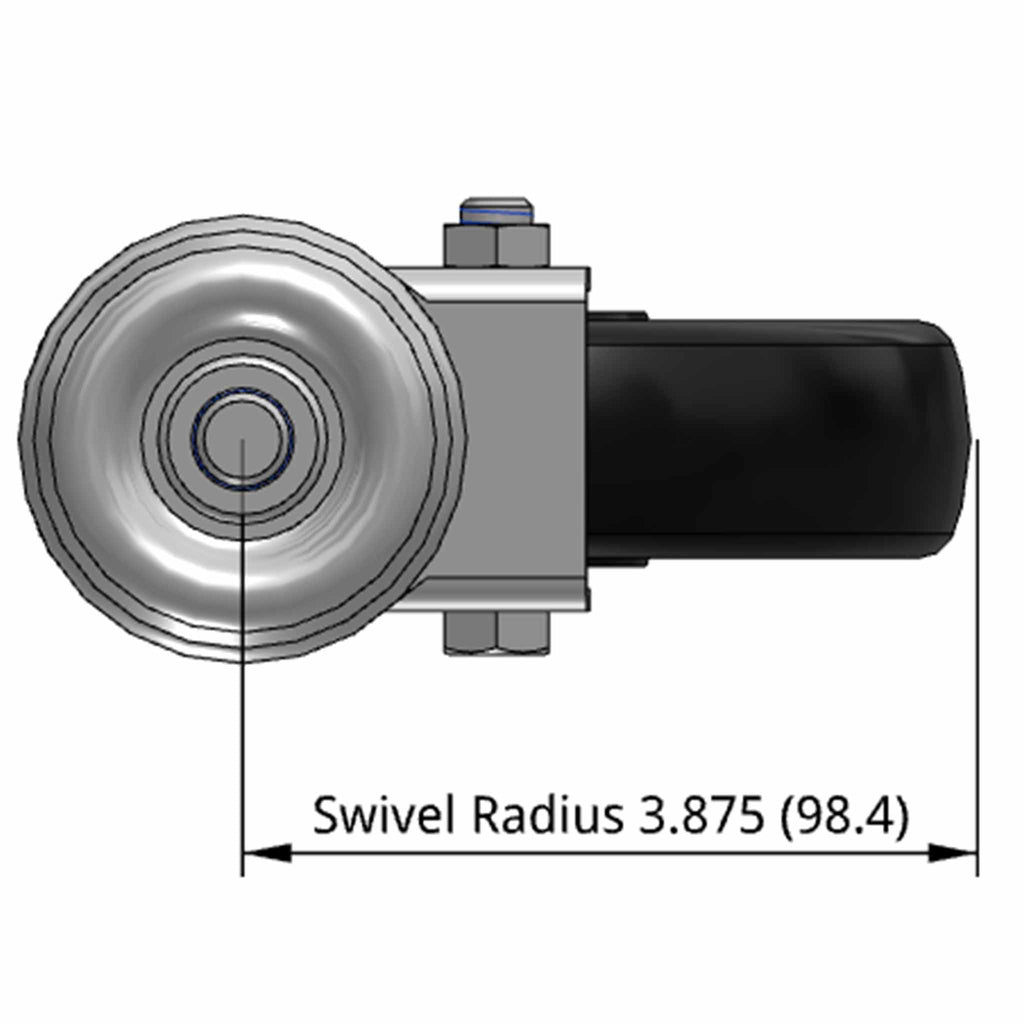

Swivel Radius:
3.88 in
Finish:
Zinc Plated
Axle Size:
3/8" diameter
Operating Temperature Range:
-20F° to +180F°
Mfg:
AS50T2POD
Warranty:
1 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component

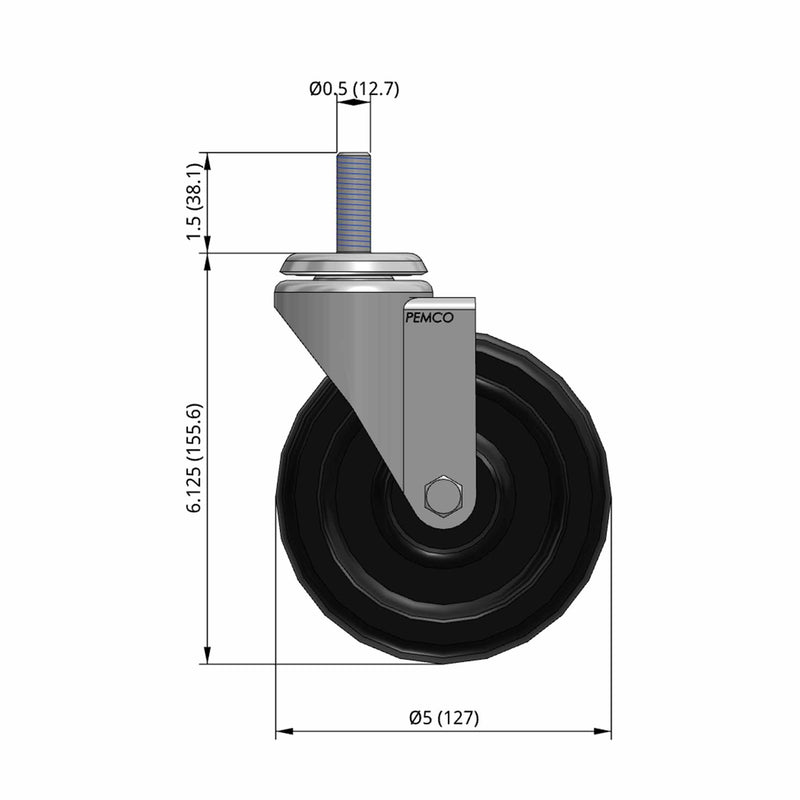

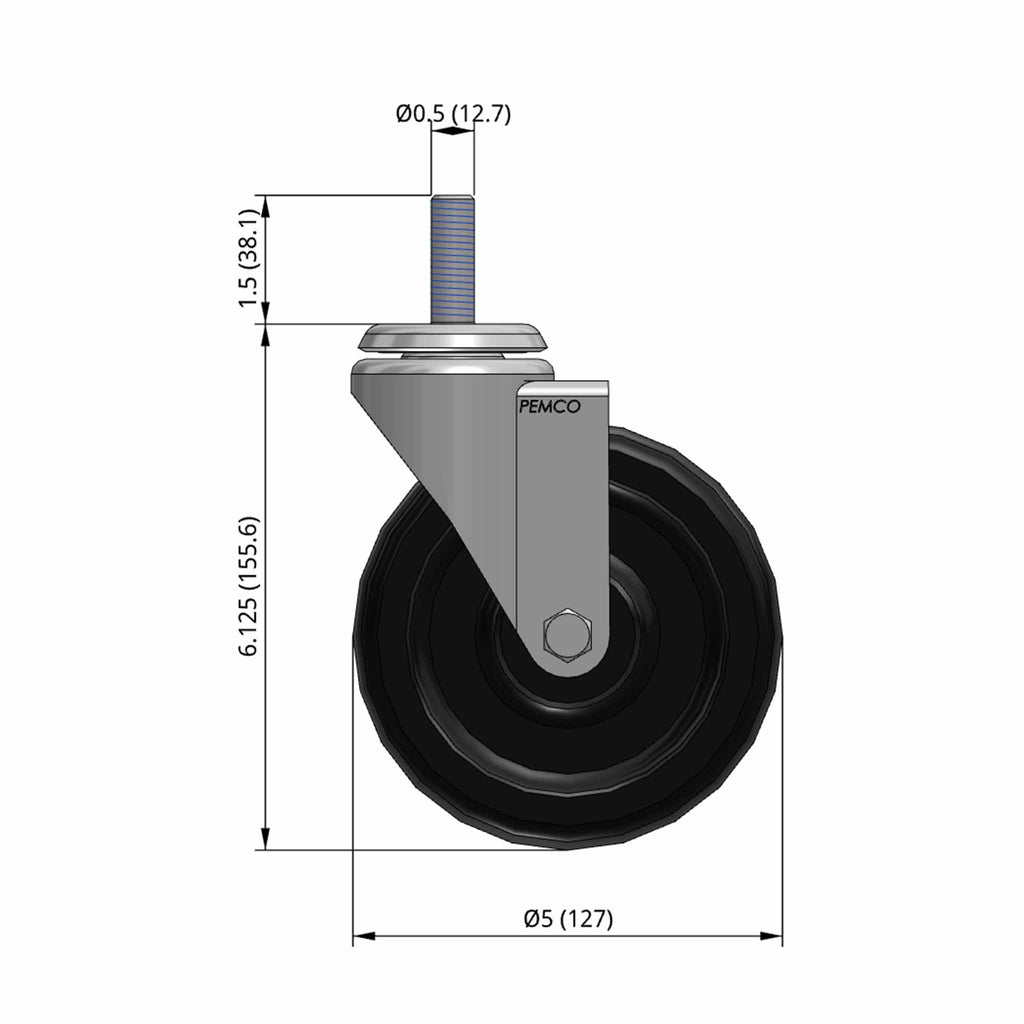

CAD Model and Datasheet Downloads
