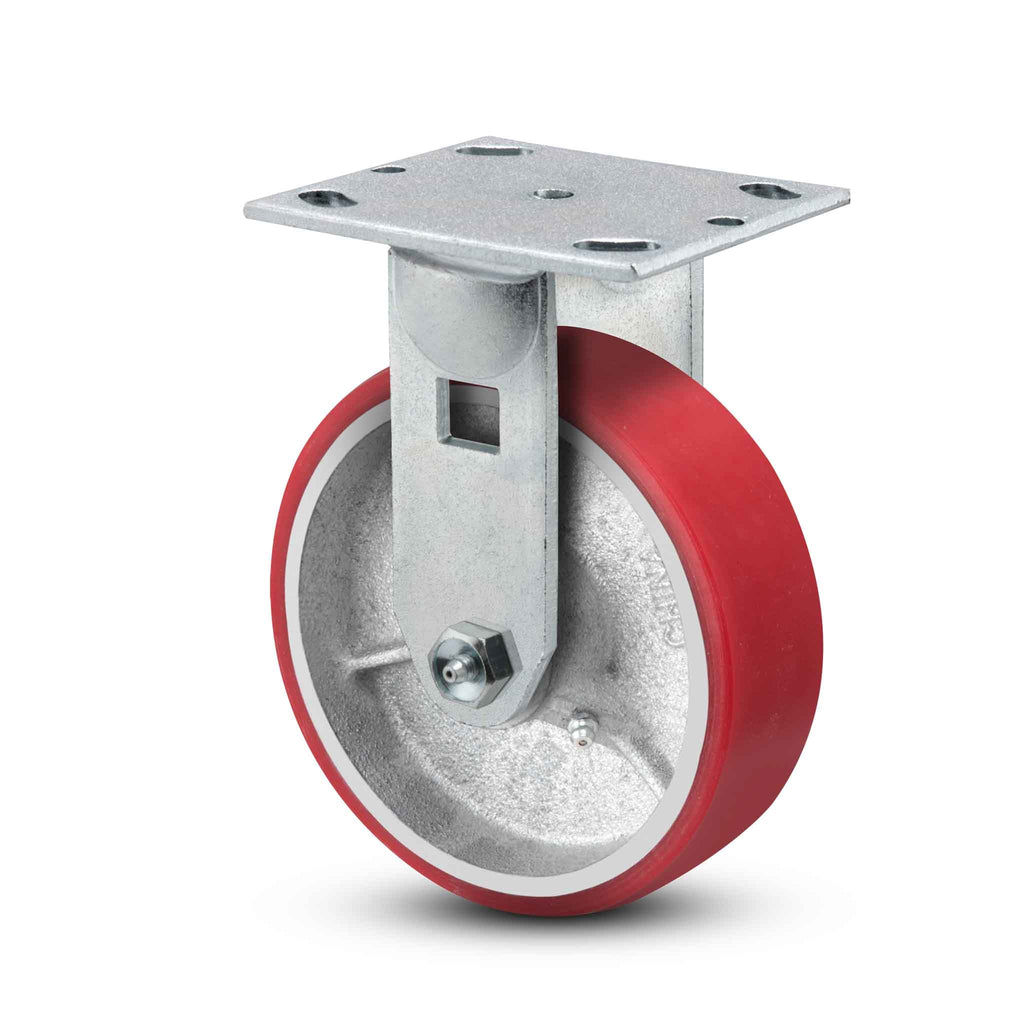

5"x2" Polyurethane-on-Iron Wheel Rigid Caster

Pemco Casters SKU: ER5X2MOP
Fastening: 4" x 4-1/2" top plate | Load Capacity: 1100 lb
Mount Height: 6.5 in

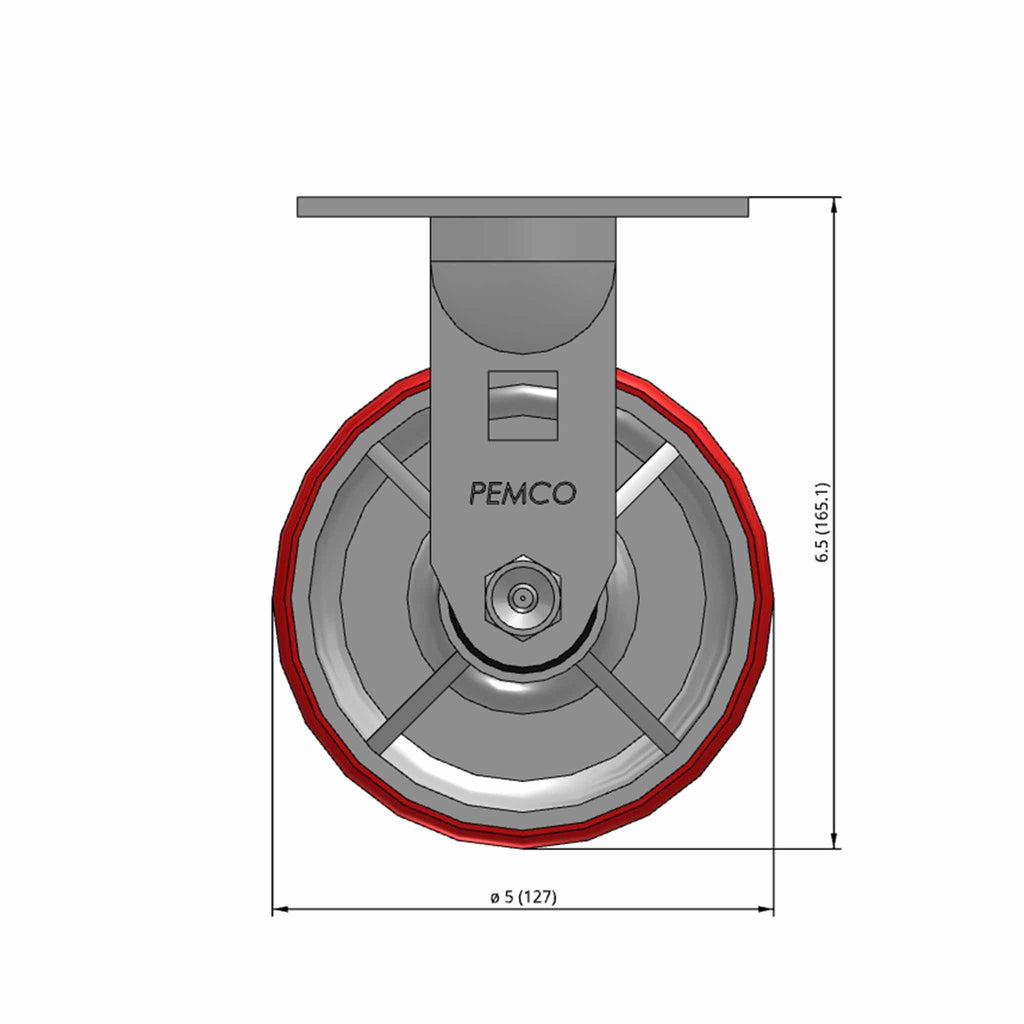

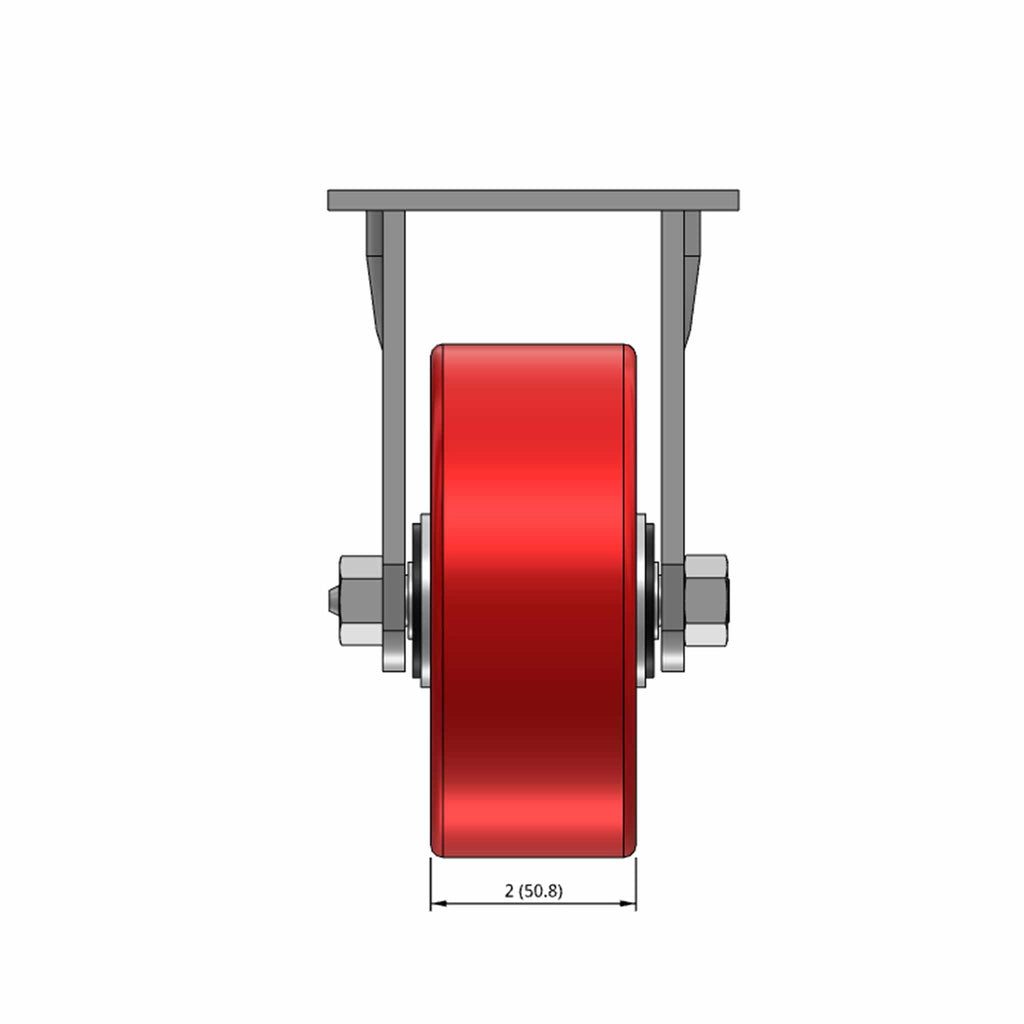

See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:
Sale price$32.65

Description

This 5" x 2" polyurethane on iron heavy duty rigid caster is a durable, high capacity caster that fits almost any budget. The polyurethane tread is floor protective and non-scuffing. Our 45 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements ranging from 300 to 1,250 pounds per caster. From shop carts to containers, to platform and lumber carts the 45 Series is the most competitive and in-stock 2" wide solution.

Product Details

Part Number:
45PIR52R
SKU
ER5X2MOP
Series:
45 Series - 2" Wide (to 1250 lb/ea)
Raceway Type:
Rigid Construction
Brake:
None
Load Capacity:
1100 lb
Mounting Height:
6.5 in
Wheel Diameter:
5 in
Wheel Tread Width:
2 in
Wheel Description:
Mold-on Poly
Wheel Color:
Red
Wheel Bearing:
Roller
Wheel Profile:
Flat Tread
Wheel Hardness:
95(+/-5) Shore A
Wheel Thread Guards:
None
Fastening:
4" x 4-1/2" top plate

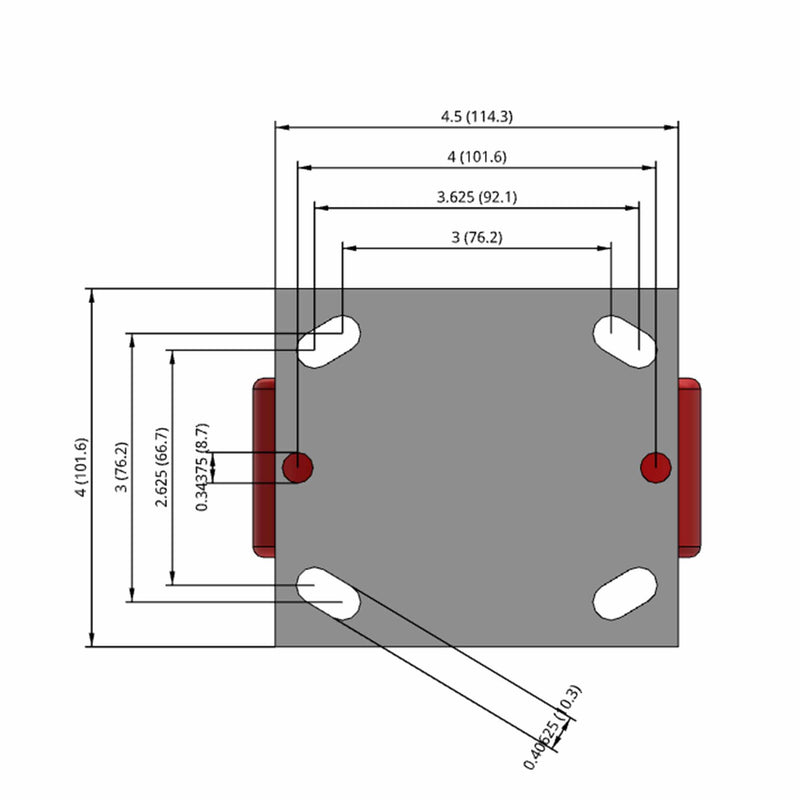

Bolt Hole Pattern:
2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:
3/8"
Finish:
Zinc Plated
Axle Size:
1/2" diameter with zerk fitting
Operating Temperature Range:
-40F° to +180F°
Mfg:
ER5X2MOP
Warranty:
1 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
