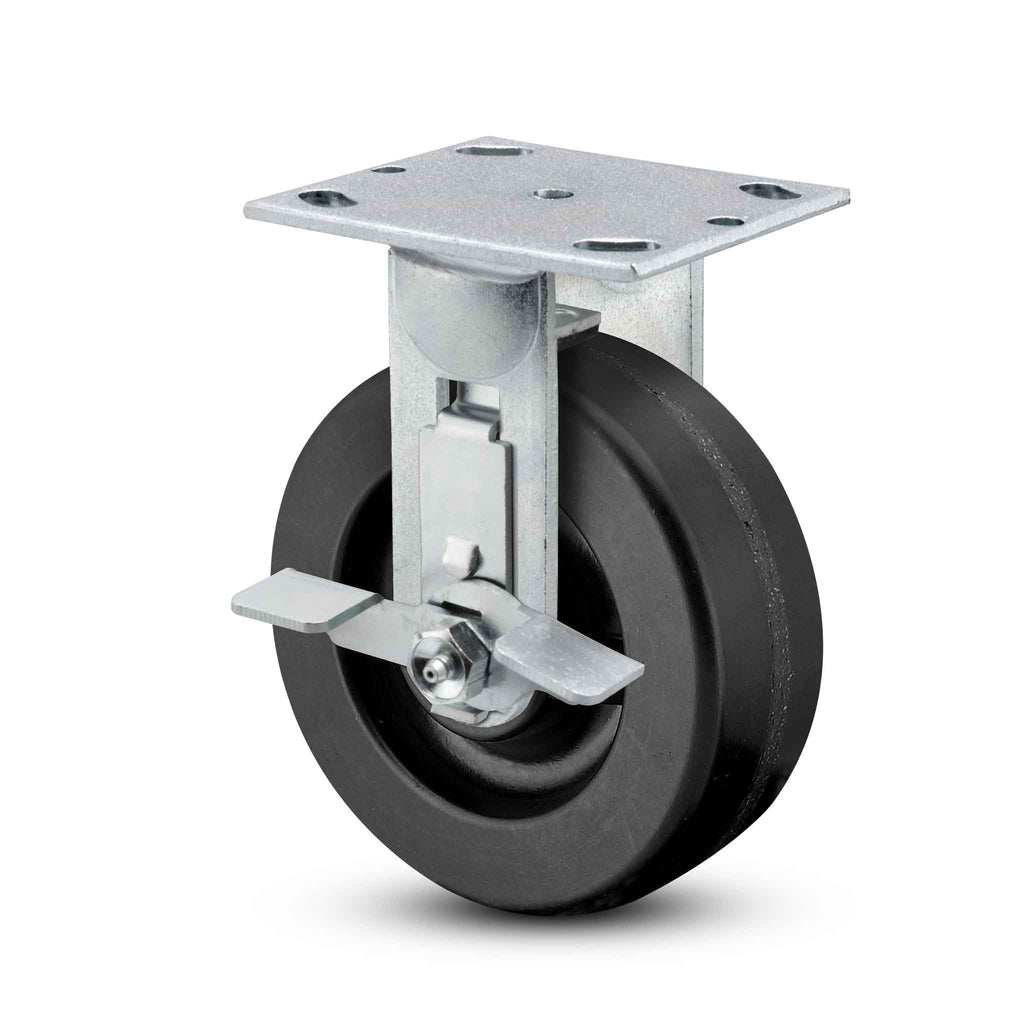

6"x2" Phenolic Wheel Side Locking Rigid Caster

USA-Made Wheel
Pemco Casters SKU: ER6X2PHNTBK
Fastening: 4" x 4-1/2" top plate | Load Capacity: 1200 lb
Mount Height: 7.5 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:
Sale price$23.13

Related Products
Click red checkbox + adjust quantity to include when adding main item to cart

Description

Inexpensive and durable, this 6" x 2" phenolic heavy duty rigid caster with tread brake is high capacity and floor protective. Phenolic wheels should not be used in wet or moist applications. Our 45 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements ranging from 300 to 1,250 pounds per caster. From shop carts to containers, to platform and lumber carts the 45 Series is the most competitive and in-stock 2" wide solution.

Product Details

Part Number:
45PNR62R-TB
SKU
ER6X2PHNTBK
Series:
45 Series - 2" Wide (to 1250 lb/ea)
Raceway Type:
Rigid Construction
Brake:
Tread Lock
Load Capacity:
1200 lb
Mounting Height:
7.5 in
Wheel Diameter:
6 in
Wheel Tread Width:
2 in
Wheel Description:
Phenolic
Wheel Color:
Black
Wheel Bearing:
Roller
Wheel Profile:
Flat with Slightly Rounded Edges
Wheel Hardness:
90(+/-5) Shore D
Wheel Thread Guards:
None
Fastening:
4" x 4-1/2" top plate
Bolt Hole Pattern:
2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:
3/8"
Finish:
Zinc Plated
Axle Size:
1/2" diameter with zerk fitting
Operating Temperature Range:
-40F° to +180F°
Mfg:
ER6X2PHNTBK
Warranty:
1 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

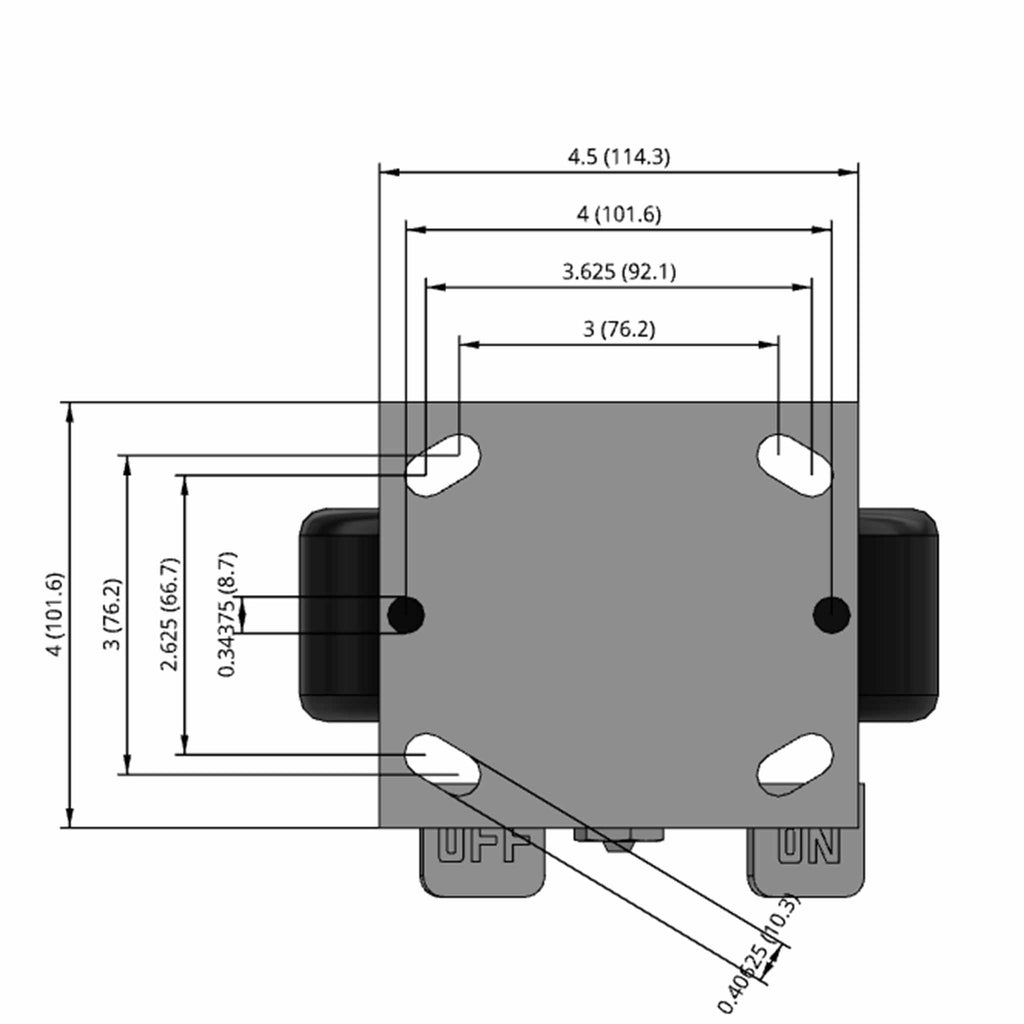

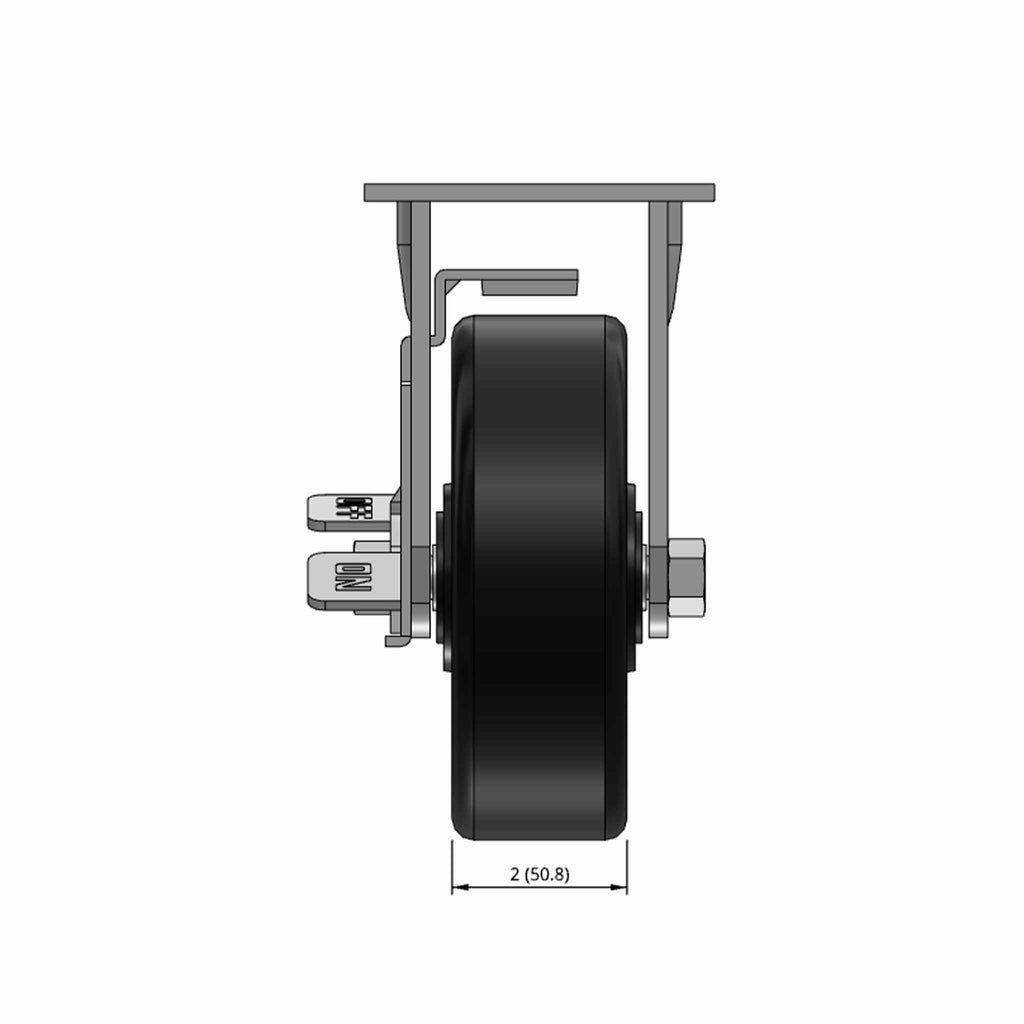

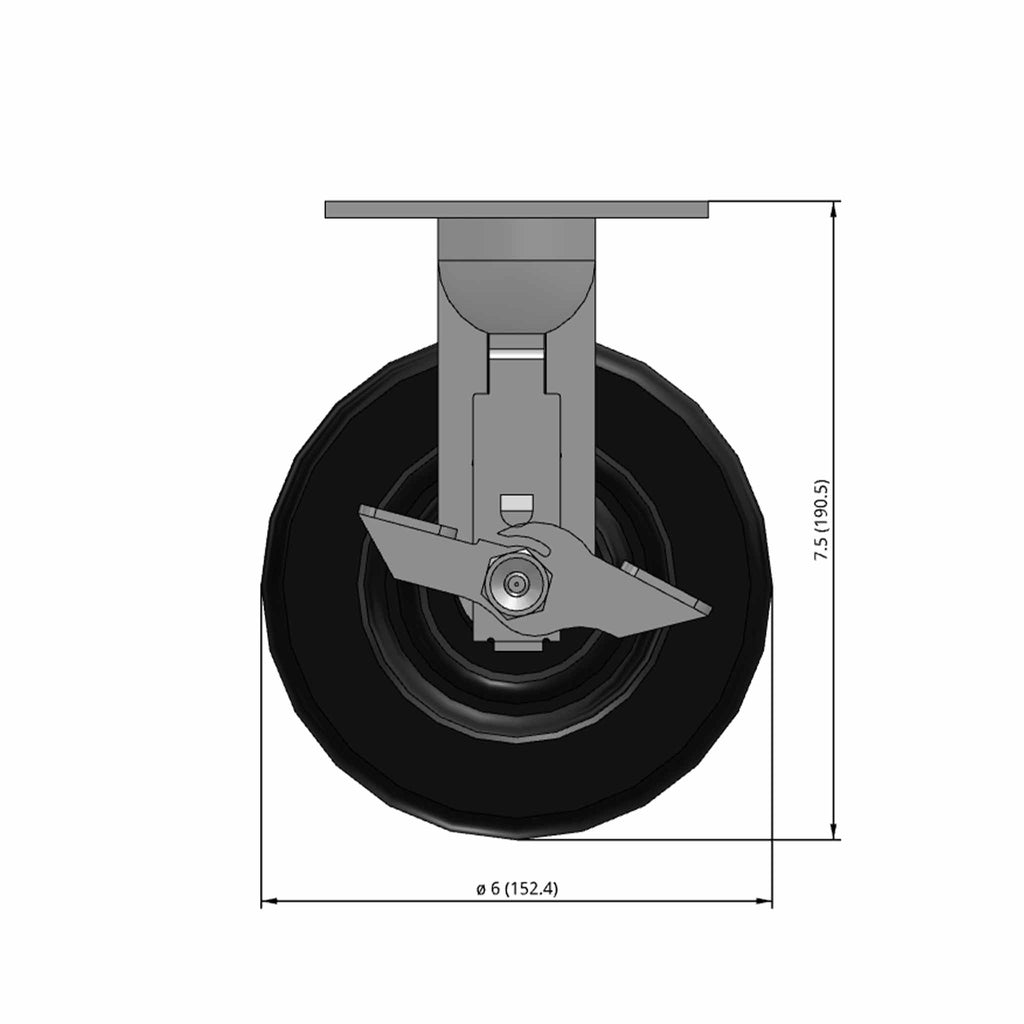

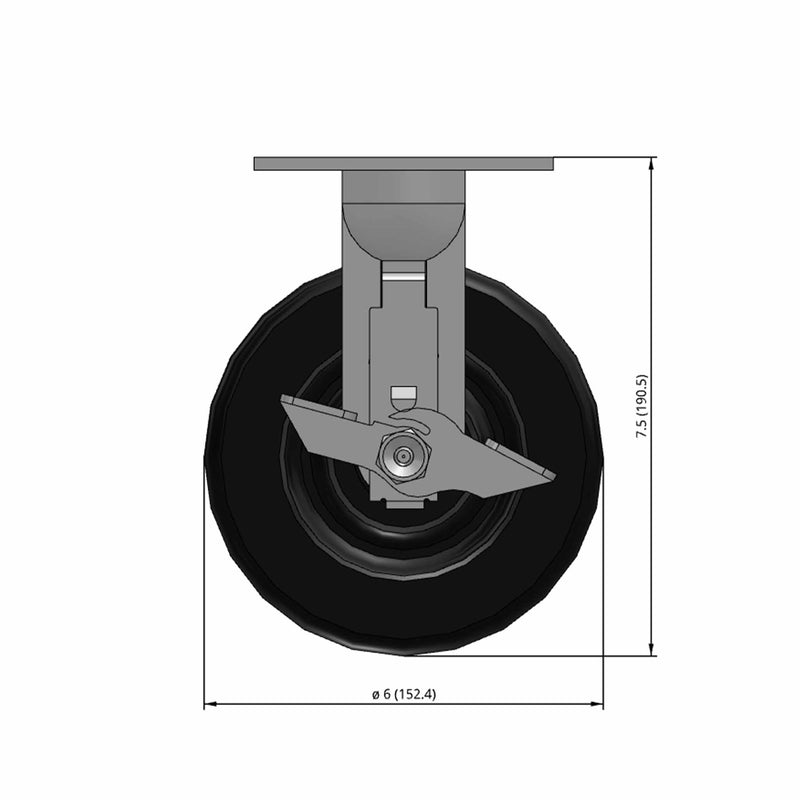

CAD Model and Datasheet Downloads
