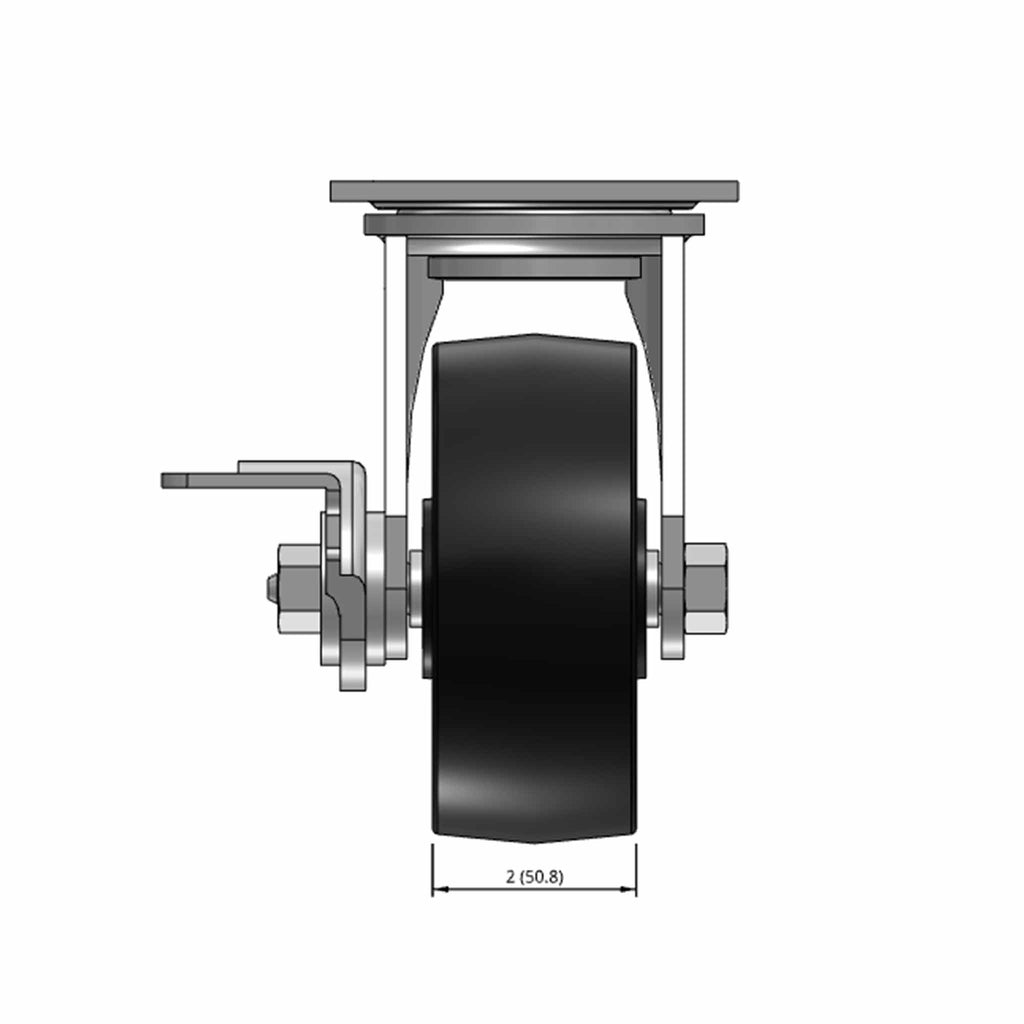

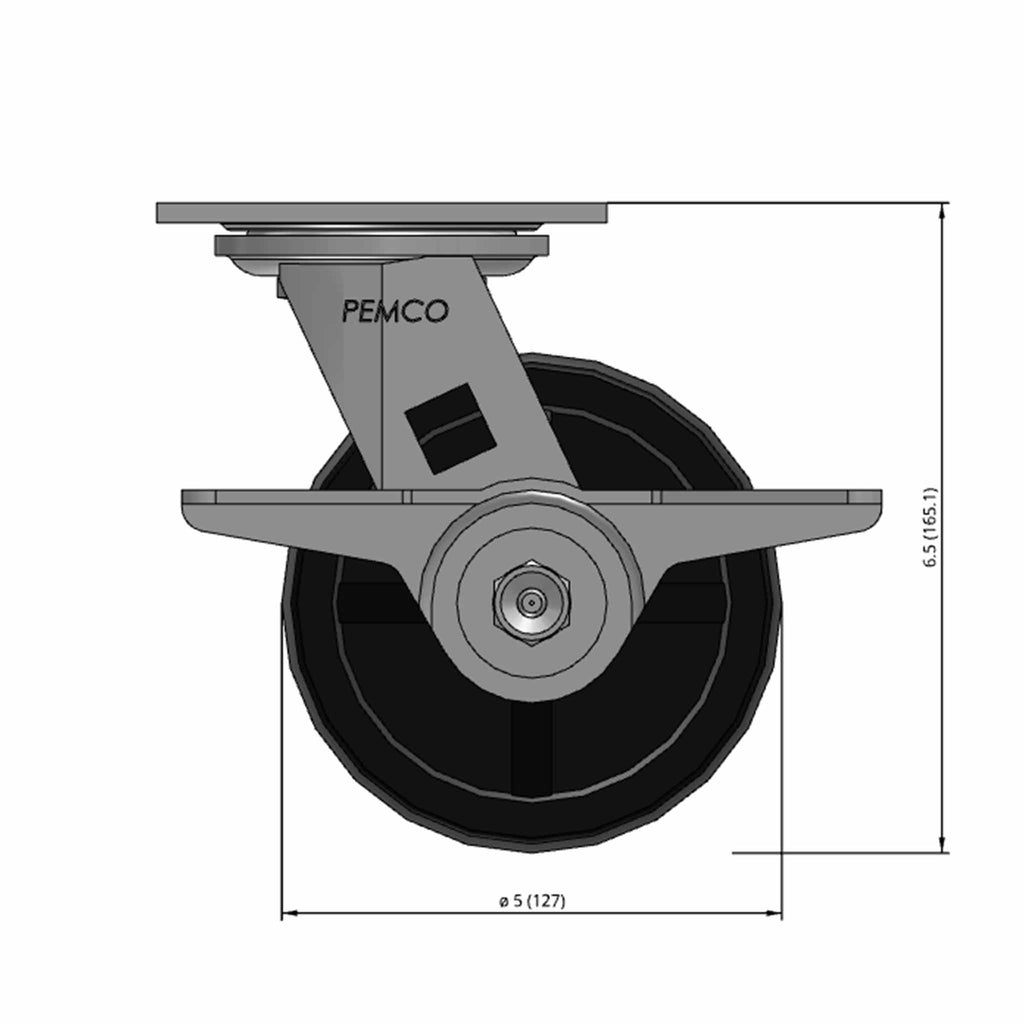

Main view of a Pemco Casters 5" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, Polypropylene HD wheel and 600 lb. capacity part
Roll over to zoom; image may be representative for size Click on image to zoom
Main view of a Pemco Casters 5" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, Polypropylene HD wheel and 600 lb. capacity part

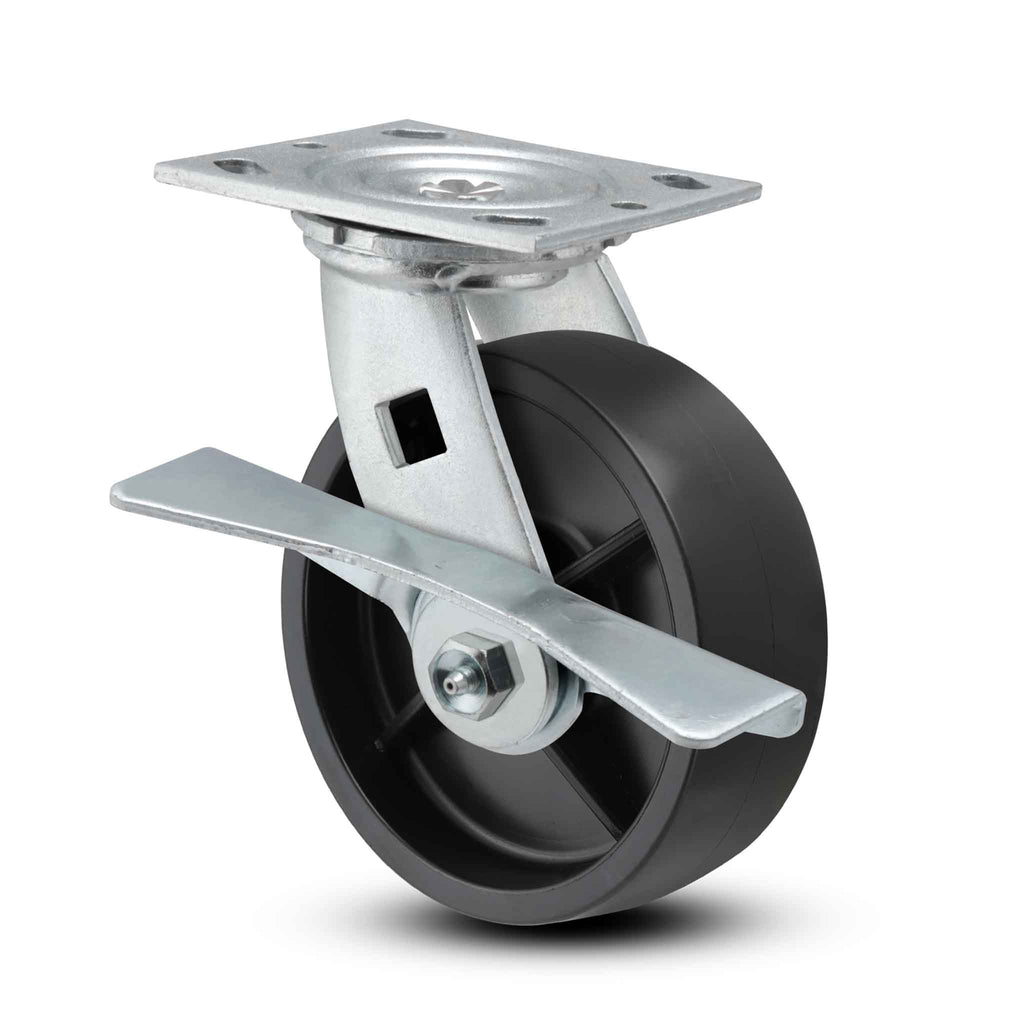

5"x2" Polypropylene Wheel Side CAM Locking Swivel Caster
5"x2" Polypropylene Wheel Side CAM Locking Swivel Caster
5"x2" Polypropylene Wheel Side CAM Locking Swivel Caster

5"x2" Polypropylene Wheel Side CAM Locking Swivel Caster

USA-Made Wheel
Pemco Casters SKU: ES5X2PODCAML
Fastening: 4" x 4-1/2" top plate | Load Capacity: 600 lb
Mount Height: 6.5 in | Swivel Radius: 6 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:
$39.39

Description

This 5" x 2" polypropylene heavy duty swivel caster with cam brake has a one piece plastic wheel ideal for use in wet and chemical environments. Polypropylene is non-reactive and non-marking. Our 45 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements ranging from 300 to 1,250 pounds per caster. From shop carts to containers, to platform and lumber carts the 45 Series is the most competitive and in-stock 2" wide solution.

Product Details

Part Number:
45POR52S-CB
SKU
ES5X2PODCAML
Series:
45 Series - 2" Wide (to 1250 lb/ea)
Raceway Type:
Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake:
7-Inch Cam Brake
Load Capacity:
600 lb
Mounting Height:
6.5 in
Wheel Diameter:
5 in
Wheel Tread Width:
2 in
Wheel Description:
Polypropylene HD
Wheel Color:
Black
Wheel Bearing:
Roller
Wheel Profile:
Flat Tread
Wheel Hardness:
70(+/-5) Shore D
Wheel Thread Guards:
None
Fastening:
4" x 4-1/2" top plate

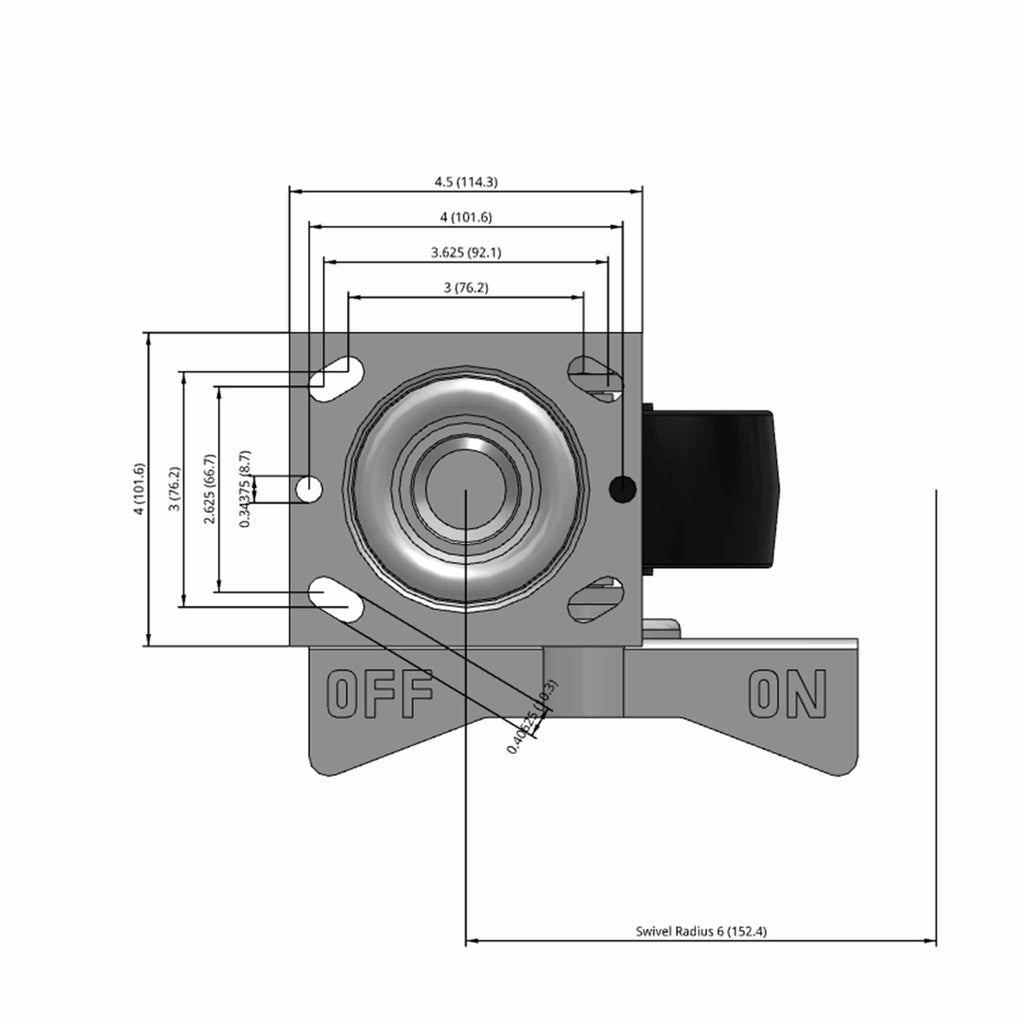

Bolt Hole Pattern:
2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:
3/8"
Swivel Radius:
6 in
Finish:
Zinc Plated
Axle Size:
1/2" diameter with zerk fitting
Operating Temperature Range:
-20F° to +180F°
Mfg:
ES5X2PODCAML
Warranty:
1 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

CAD Model and Datasheet Downloads
