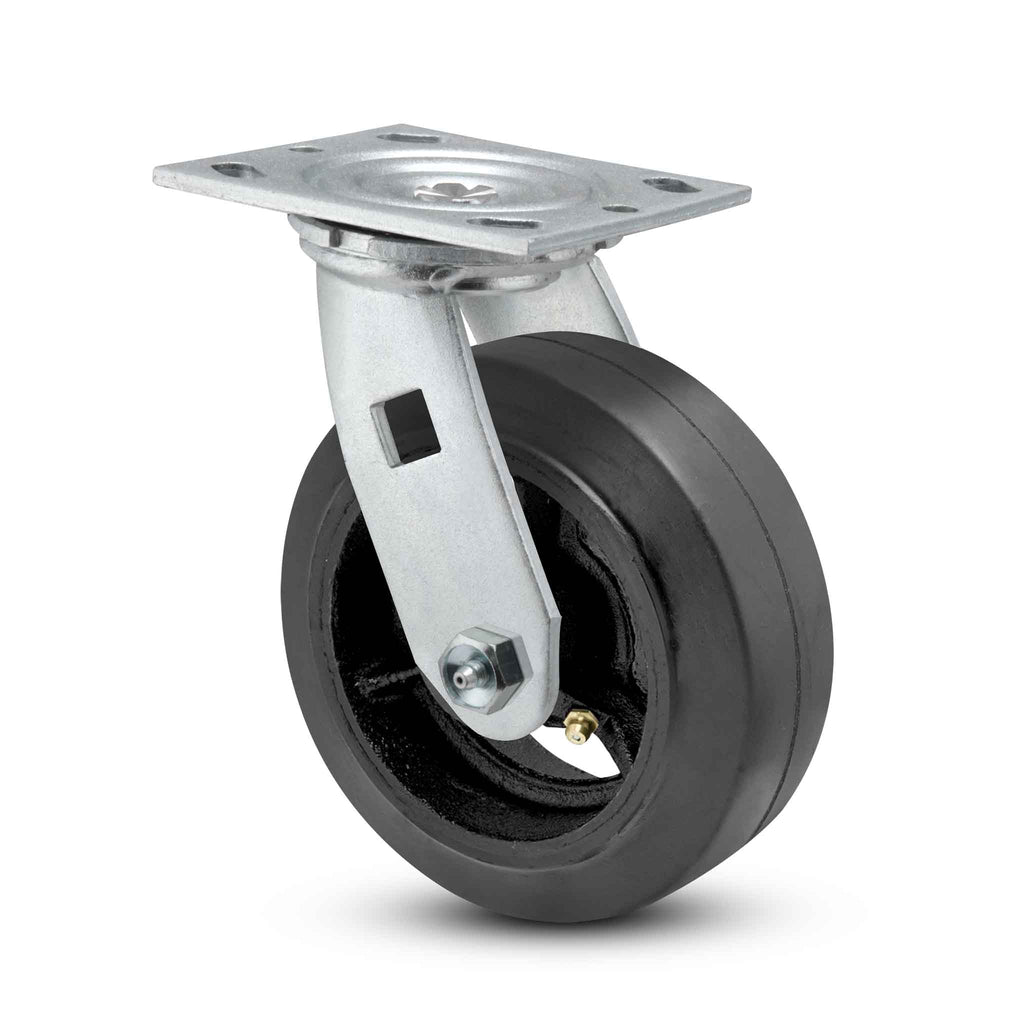

8"x2" Rubber-on-Iron Wheel Swivel Caster

Pemco Casters SKU: ES8X2MOR
Fastening: 4" x 4-1/2" top plate | Load Capacity: 600 lb
Mount Height: 9.5 in | Swivel Radius: 6.25 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:
Sale price$32.03

Description

This 8" x 2" rubber on cast iron heavy duty swivel caster is an economical, quiet wheel ideal for use on platform trucks or stock dollies. Our 45 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements ranging from 300 to 1,250 pounds per caster. From shop carts to containers, to platform and lumber carts the 45 Series is the most competitive and in-stock 2" wide solution.

Product Details

Part Number:
45RIR82S
SKU
ES8X2MOR
Series:
45 Series - 2" Wide (to 1250 lb/ea)
Raceway Type:
Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake:
None
Load Capacity:
600 lb

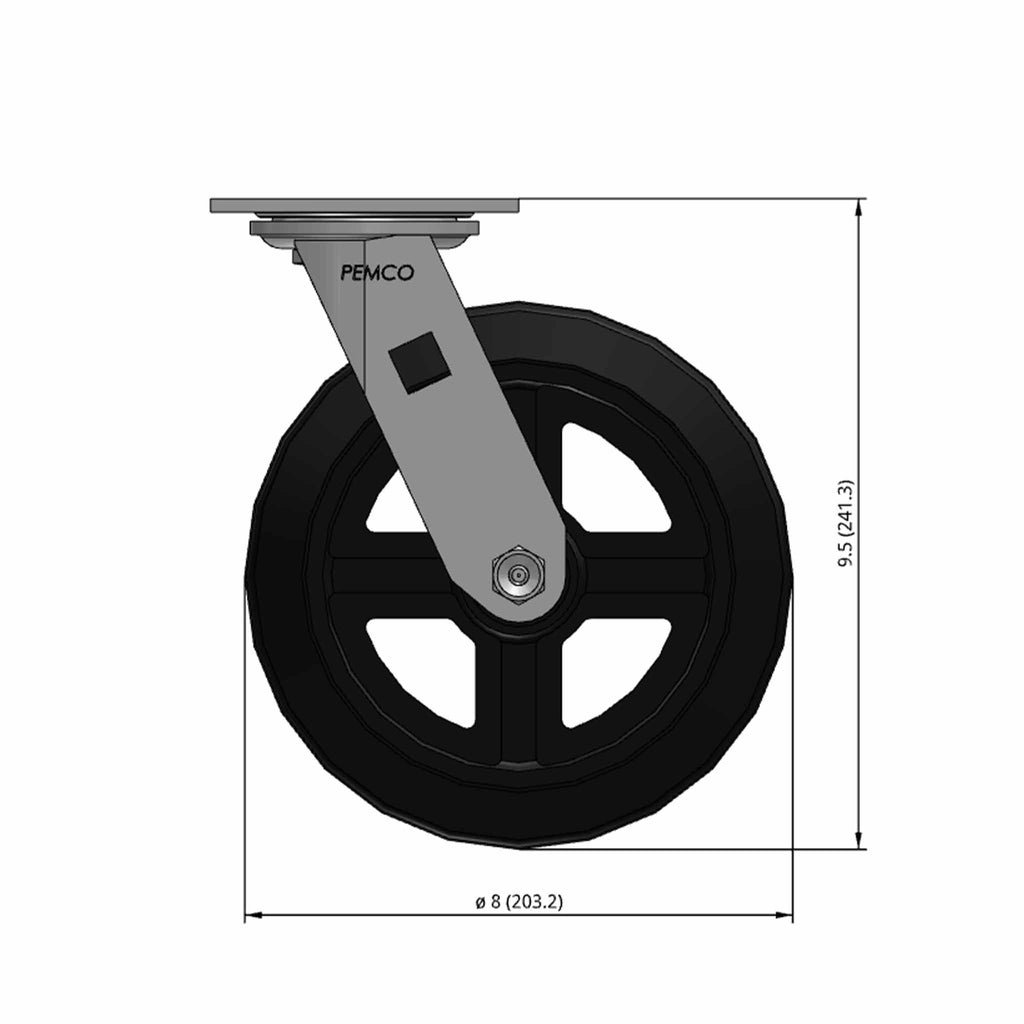

Mounting Height:
9.5 in
Wheel Diameter:
8 in

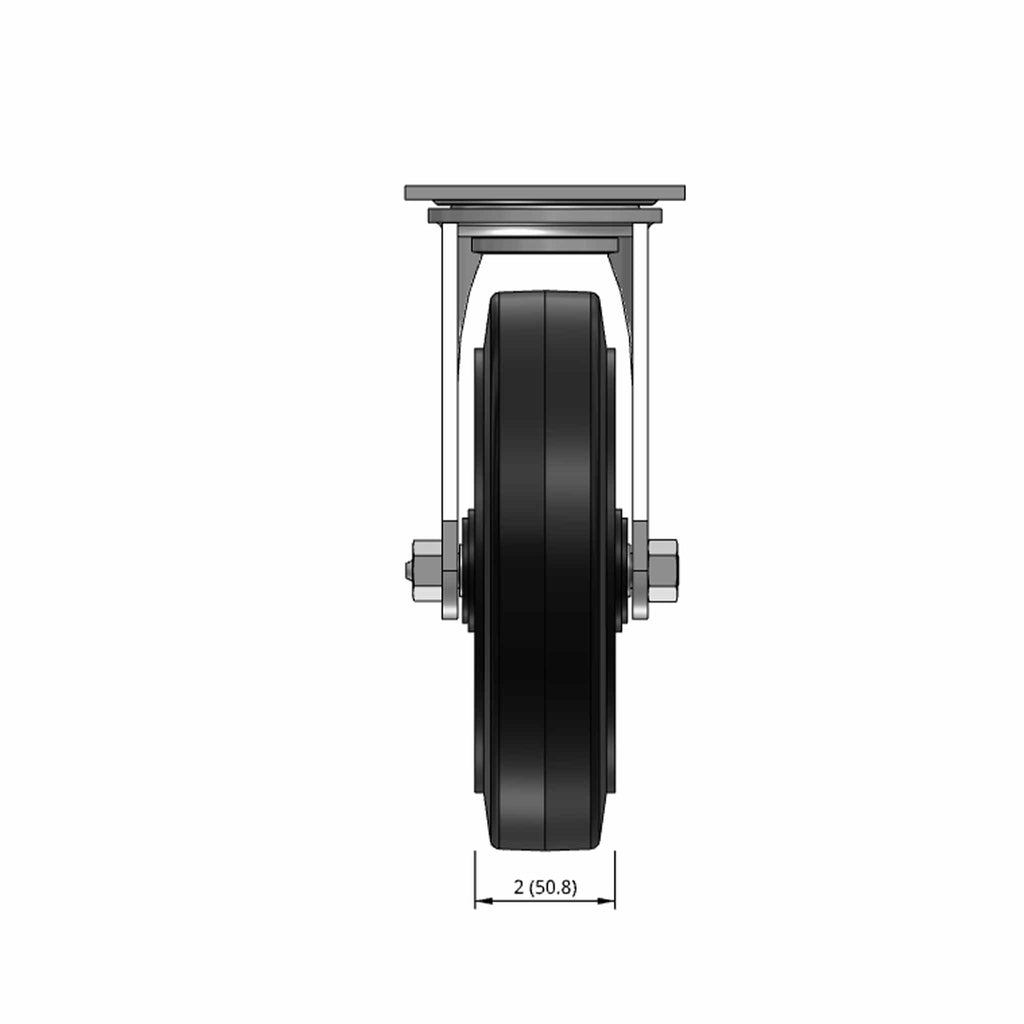

Wheel Tread Width:
2 in
Wheel Description:
Mold-on Rubber
Wheel Color:
Black
Wheel Bearing:
Roller
Wheel Profile:
Flat with Slightly Rounded Edges
Wheel Hardness:
85(+/-5) Shore A
Wheel Thread Guards:
None
Fastening:
4" x 4-1/2" top plate

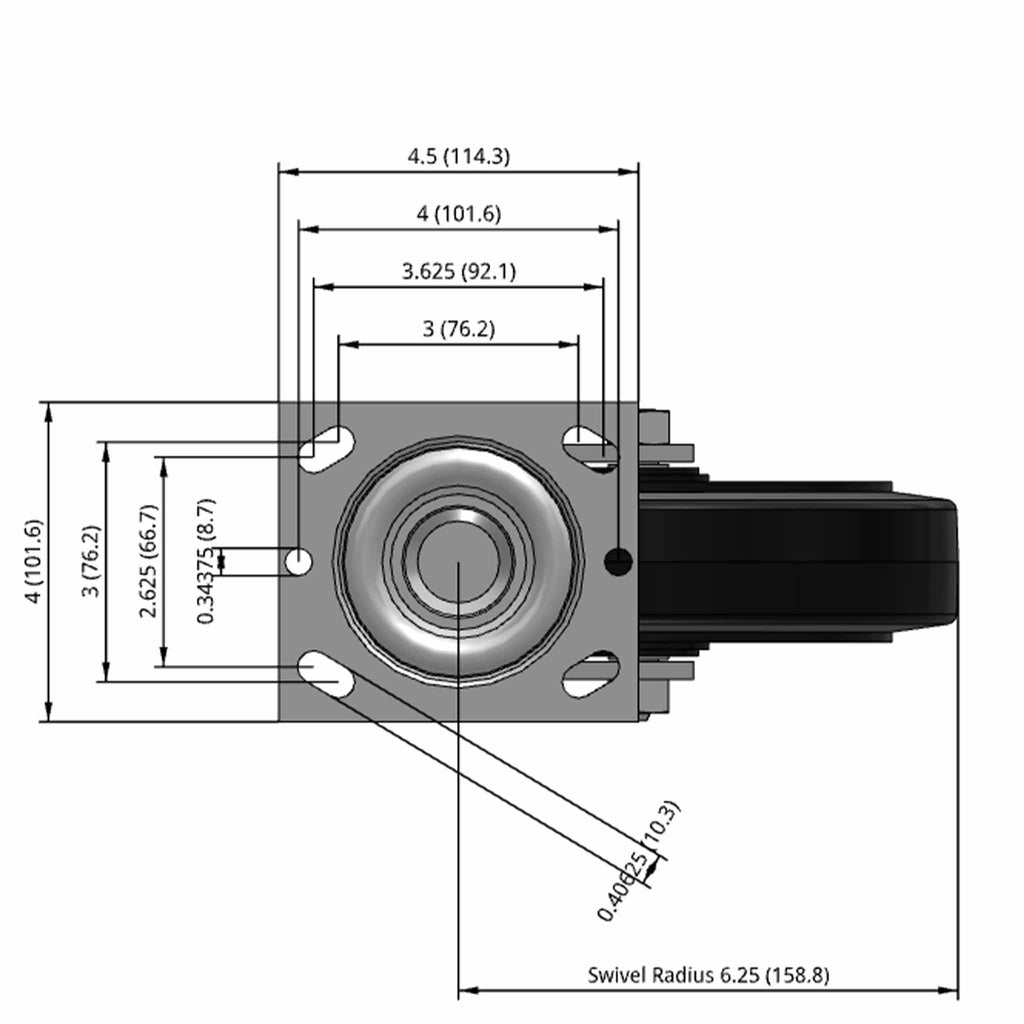

Bolt Hole Pattern:
2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:
3/8"
Swivel Radius:
6.25 in
Finish:
Zinc Plated
Axle Size:
1/2" diameter with zerk fitting
Operating Temperature Range:
-40F° to +180F°
Mfg:
ES8X2MOR
Warranty:
1 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
