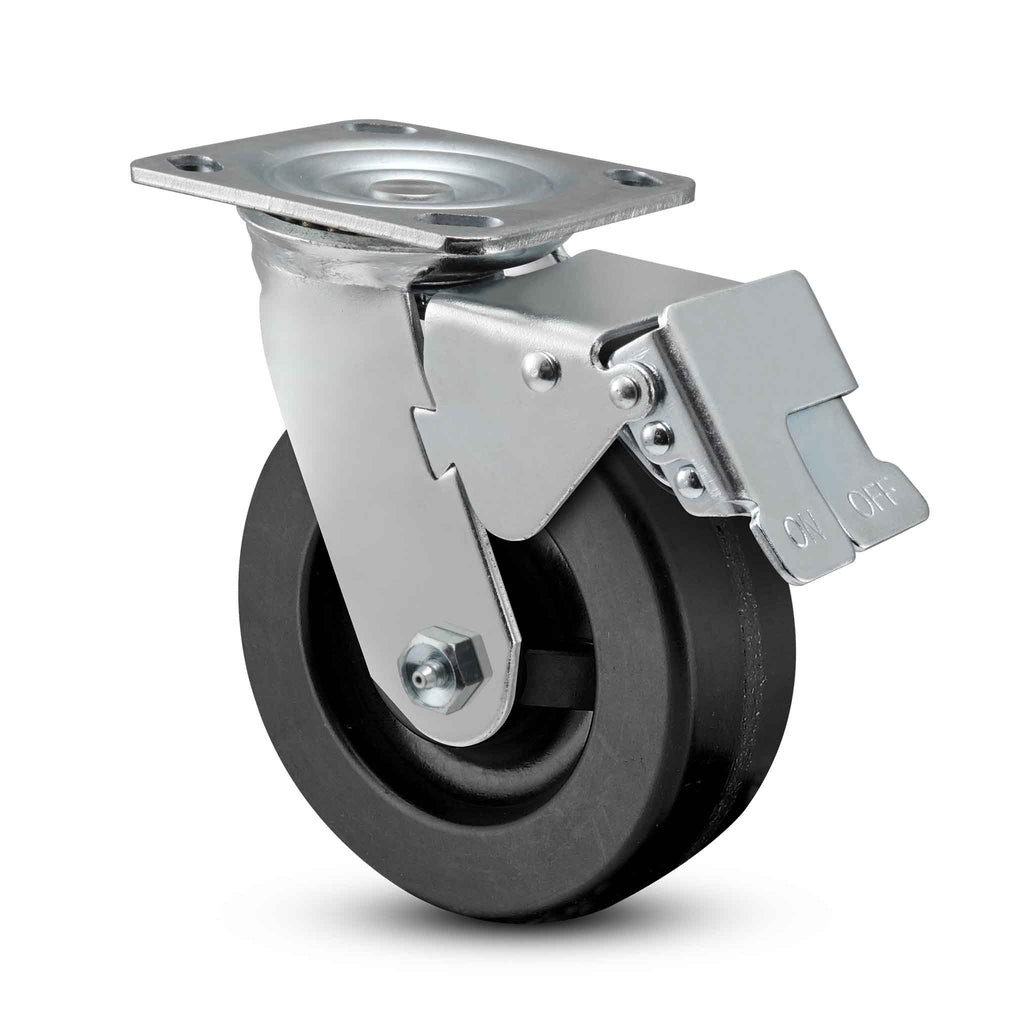

8"x2" Phenolic Wheel Total Lock Brake Swivel Caster

Total Lock Brake
Pemco Casters SKU: ET8X2PHN
Fastening: 4" x 4-1/2" top plate | Load Capacity: 900 lb
Mount Height: 9.5 in | Swivel Radius: 6.38 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:
Sale price$78.02

Description

Inexpensive and durable, this 8" x 2" phenolic heavy duty swivel caster with total lock brake is high capacity and floor protective. Phenolic wheels should not be used in wet or moist applications. Our 45 Series is an economical lineup of casters and wheels designed for a range of applications with load requirements ranging from 300 to 1,250 pounds per caster. From shop carts to containers, to platform and lumber carts the 45 Series is the most competitive and in-stock 2" wide solution.

Product Details

Part Number:
45PNR82S-TLB
SKU
ET8X2PHN
Series:
45 Series - 2" Wide (to 1250 lb/ea)
Raceway Type:
Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake:
Total Lock
Load Capacity:
900 lb
Mounting Height:
9.5 in
Wheel Diameter:
8 in
Wheel Tread Width:
2 in
Wheel Description:
Phenolic
Wheel Color:
Black
Wheel Bearing:
Roller
Wheel Profile:
Flat with Slightly Rounded Edges
Wheel Hardness:
90(+/-5) Shore D
Wheel Thread Guards:
None
Fastening:
4" x 4-1/2" top plate
Bolt Hole Pattern:
2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:
3/8"
Swivel Radius:
6.38 in
Finish:
Zinc Plated
Axle Size:
1/2" diameter with zerk fitting
Operating Temperature Range:
-40F° to +180F°
Mfg:
ET8X2PHN
Warranty:
1 year
Conformity:
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

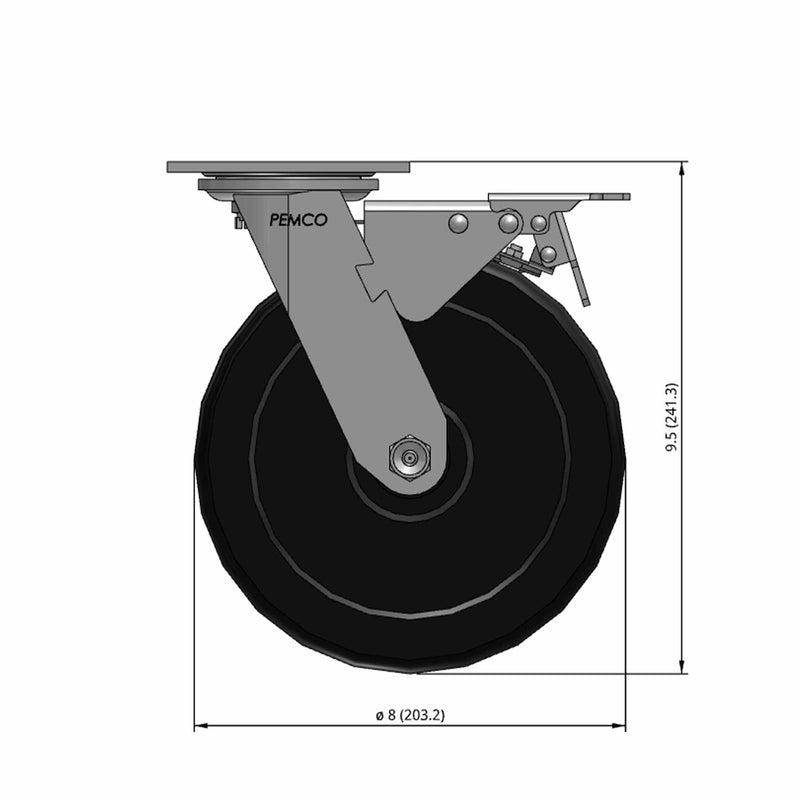

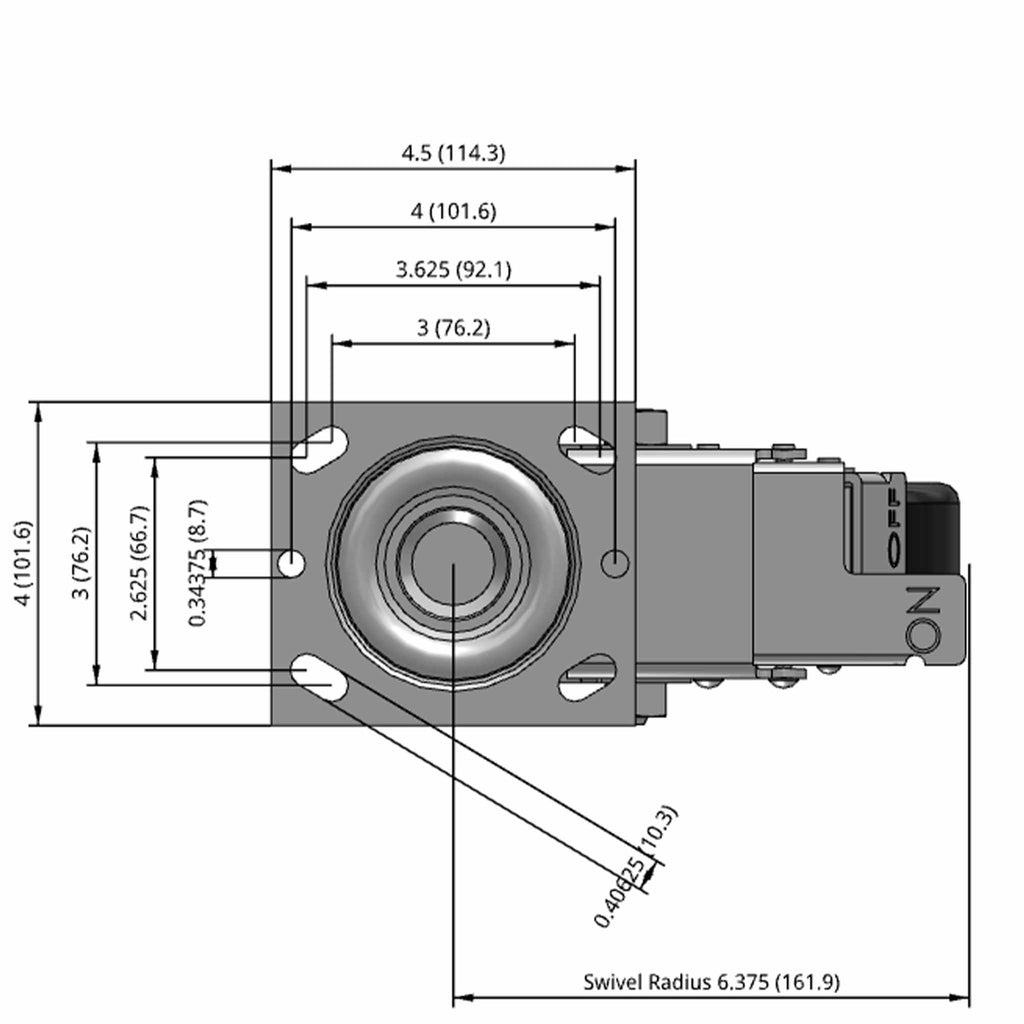

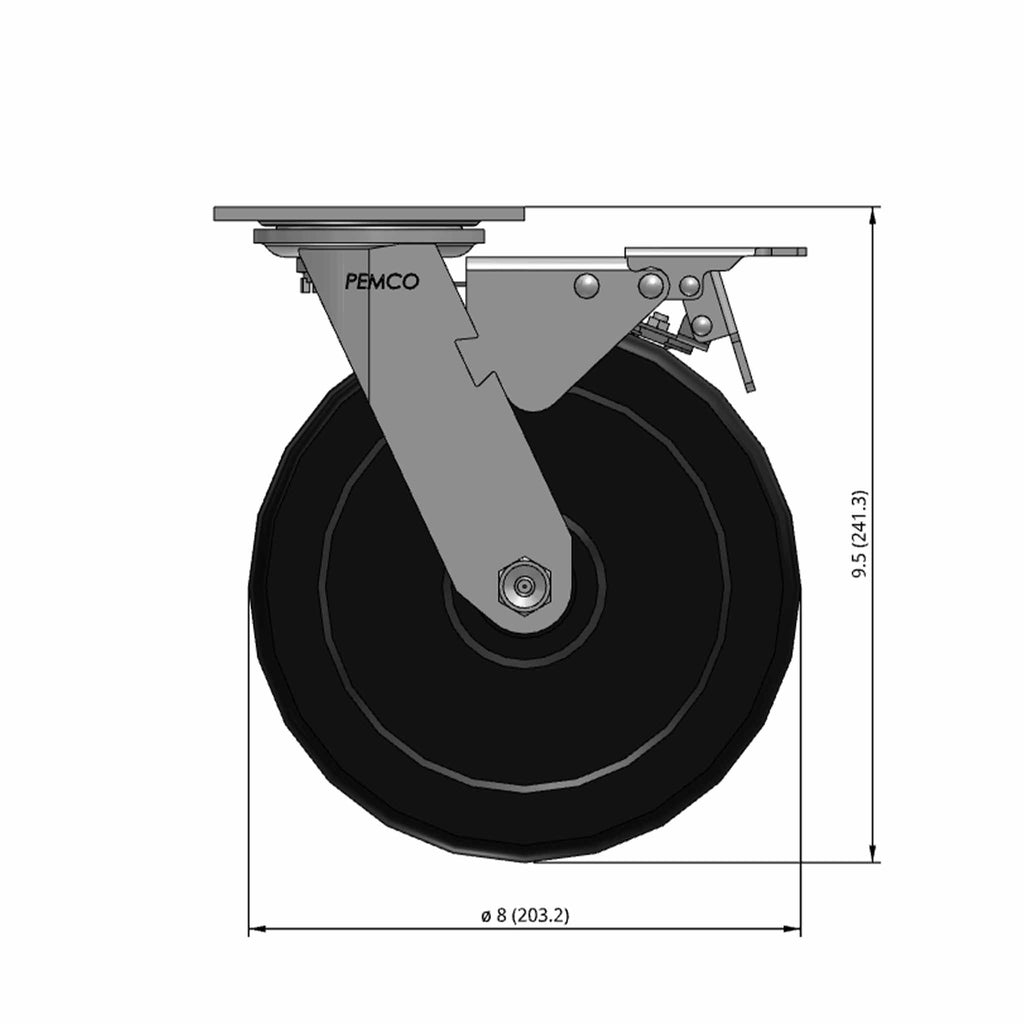

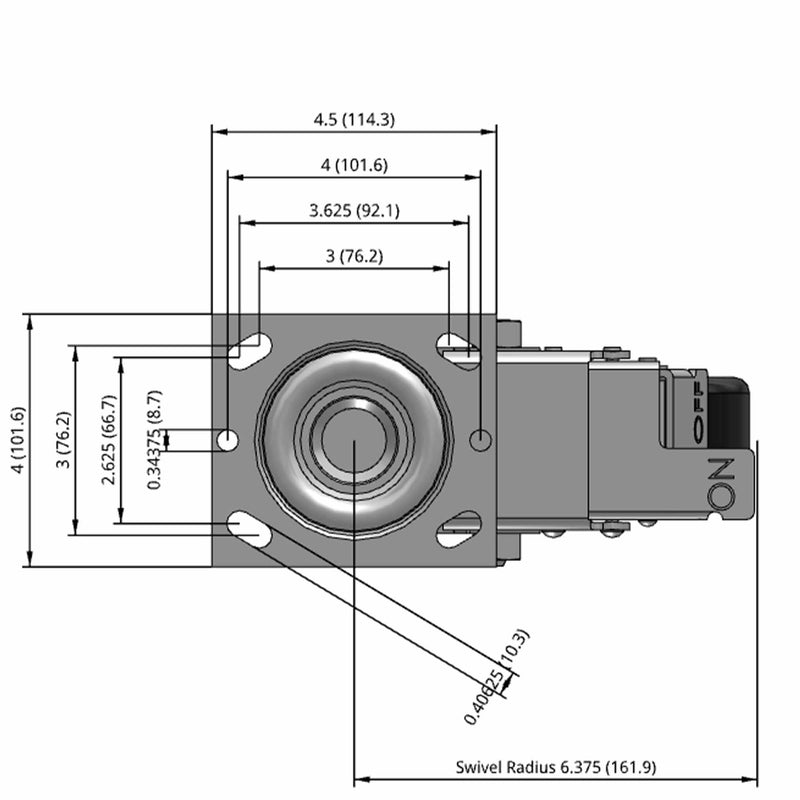

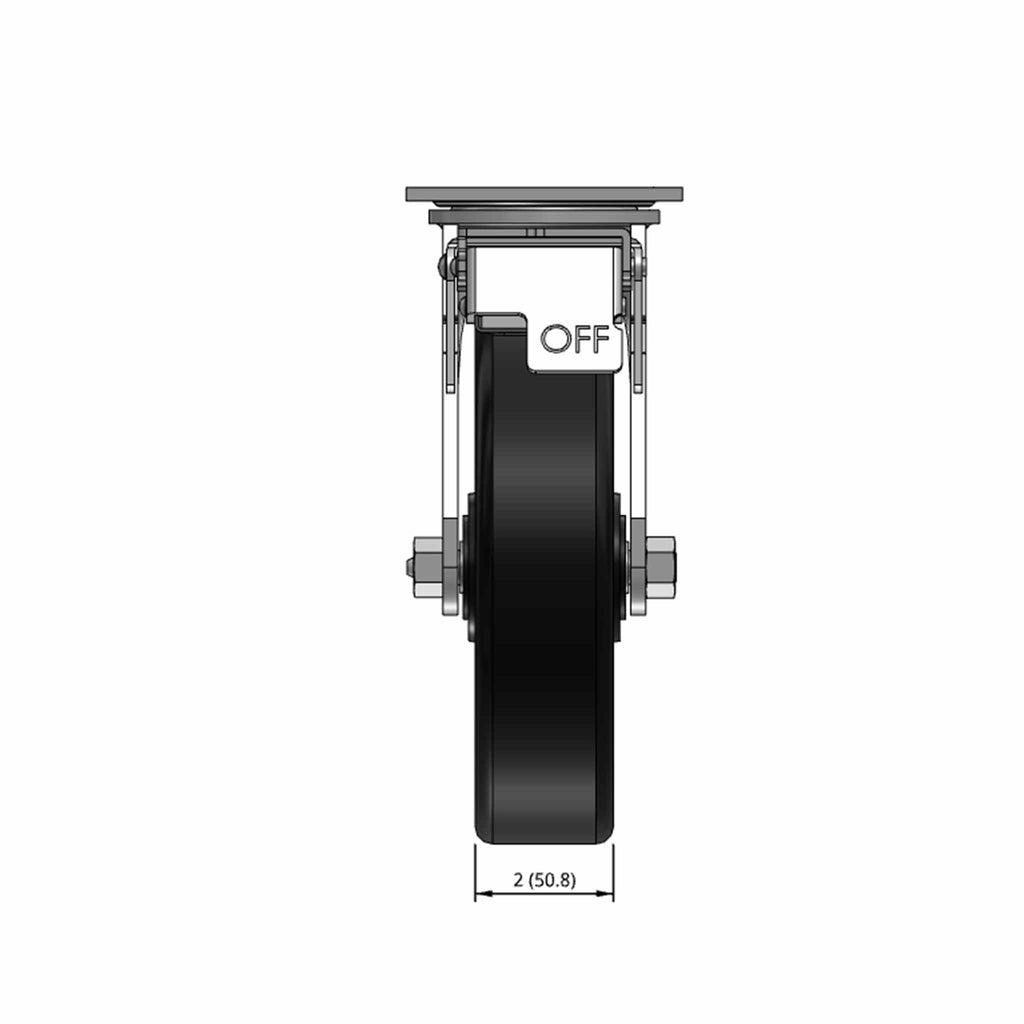

CAD Model and Datasheet Downloads
